Three Phase Prepaid Meter
As a professional manufacturer, YTL designs and produces Electronic energy meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of electronic energy meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name | Three Phase Prepaid Meter | |
Installation type | front mount | |
Module No. | D524003 ( Three Phase Prepaid Meter ) | |
Brand | YTL ( Three Phase Prepaid Meter ) | |
Rated Current | 5(80)A | |
Reference Voltage | 3*220/380V | |
Frequence | 50/60HZ | |
Display Mode | LCD | |
Accuracy | 1.0 | |
Impulse Constant | 1000imp/kWh | |
Start Current | 0.004Ib | |
Connection Mode | direct mode | |
Communication& Protocol | GSM | |
Power Consumption | IEC standard or customized | |
Material of meter case | PC | |
Size | 220.4*138*63.5mm | |
Certificate | CE ISO9001 | |
Standard | IEC standard | |
2.Functions and characteristic | ||
A. Re-read the remaining power, accumulative overdraft and purchased total times | ||
B. Maximum load is limited and IC card is used to transfer data when users pre-pay for the power | ||
C.LCD display: total kWh, remain kWh, latest kWh, meter No, user No, and so on | ||
… | ||

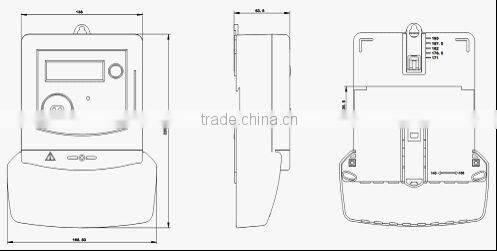

3.Outer and mount dimension: | ||
| | ||

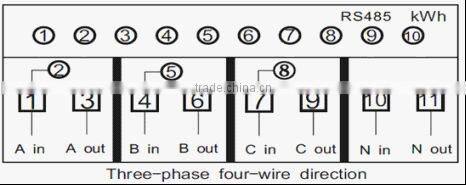

4.Wiring diagram: | ||
| | ||
5.Transaction Information | ||
MOQ | 500pcs | |
Sea Port | Shanghai or Ningbo | |
Payment Terms | 30% prepayment, 70% before shipment from factory | |
Supply Ability | 500,00pcs per month | |
Delivery time | 30days | |
Normal Package | White box for Power meter | |
If you are interested in our Three phase GPRS Prepaid Power meter, pls feel free to contact us at any time.
