As a professional manufacturer, YTL designs and produces m-bus energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of m-bus energy meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name |

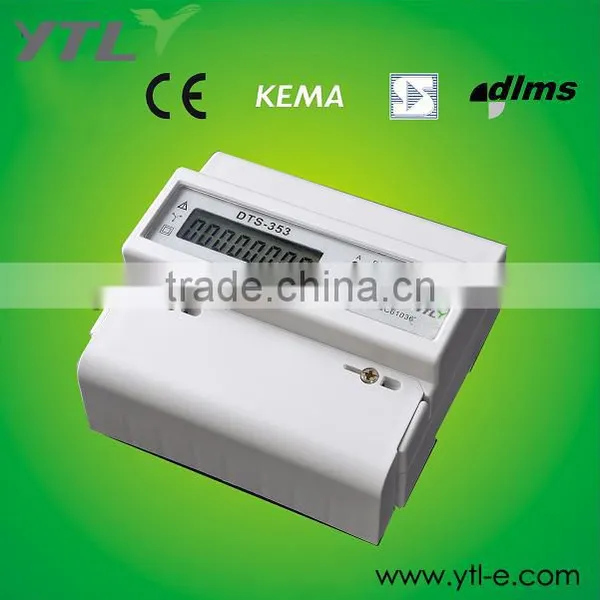

Three phase din rail m-bus energy meter | |
Installation type |
Din rail | |
Module No. |
D519003 (m-bus energy meter) | |
Brand |
YTL (m-bus energy meter) | |
Rated Current |
10(60)A 20(80)A | |
Reference Voltage |
3*220/380V;3*230/400V | |
Frequence |
50/60HZ |
|
Display Mode |
LCD6+1 | |
Accuracy |
1.0 | |
Impulse Constant |
800/1600/3200imp/kWh; | |
Start Current |
0.004Ib | |
Connection Mode |
Direct mode | |
|
Communication& Protocol |
m-bus | |
Power Consumption |
0.6W; 0.3VA | |
Material of meter case |
PC | |
Size |
122.5*115*65mm | |
Certificate |
CE | |
Standard |
IEC62052-11 IEC62053-21 | |
2.Functions and characteristic | ||
A. decoration with high-precision electric elements. It has the functions of high | ||
B. LCD Display | ||
C.m-bus communication | ||
… | ||
3.Outer and mount dimension: | ||
| | ||
4.Wiring diagram: | ||
|
| ||
5.Transaction Information | ||
MOQ |
500pcs | |
Sea Port |
Shanghai | |
Payment Terms |
TT prepayment | |
Supply Ability |
500,000pcs per month | |
Delivery time |
25-30 days | |
Normal Package |
white box or colorful box for m-bus energy meter | |
If you are interested in our Three phase din rail m-bus energy meter, pls feel free to contact us at any time.
