Three Phase Electronic Power Meter (double Tariff )

Three phase electronic power meter (double tariff )

As a professional manufacturer, YTL designs and produces  electronic power meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications

YTL is devoted to develop and design all types of electronic power meter, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.

1.Product Details
Product Name		Three phase electronic power meter(double tariff)
Installation type		din rail
Module No.		D516005 (electronic power meter)
Brand		YTL (electronic power meter)
Rated Current		10(40)A,15(60)A,10(63)A,20(80)A,10(100)A
Reference Voltage		3*220V/380
Frequence		50/60Hz
Display Mode		Counter
Accuracy		1.0
Impulse Constant		800imp/kWh
Start Current		0.4%Ib
Connection Mode		Direct mode
Communication& Protocol		/
Power Consumption		IEC standard
Material of meter case		ABS
Size		122*100*65mm
Certificate		CE, ISO9001
Standard		IEC62052-11, IEC62053-21
2.Functions and characteristic
A.Have two display windows, which display two different tariff (T1,T2), adding out voltage T2
B.Forward and reverse energy measurement: accurately measure forward and reverse power
C.Out voltage (220/230V) control the state of tariff.
D.Indication for power value or tariff state of each phase

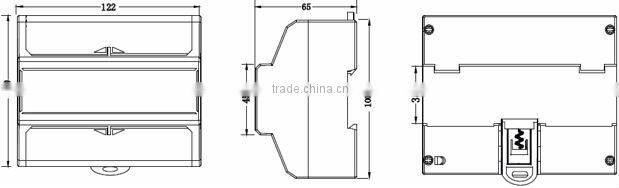

3.Outer and mount dimension:

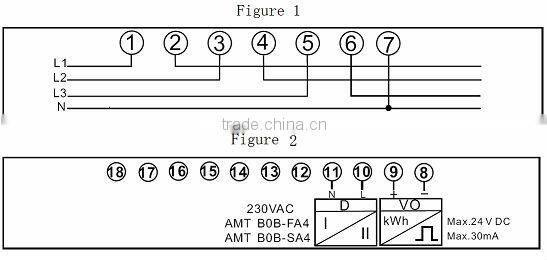

4.Wiring diagram:
5.Transaction Information
MOQ	300pcs
Sea Port	Ningbo or Shanghai port
Payment Terms	T/T, L/C
Supply Ability	50000pcs/month
Delivery time	30days after payment
Normal Package	White or color box for electronic power meter

If you are interested in our Three phase electronic power meter(double tariff), pls be free to contact us at any time.
