Three Phase Active Electric Meter
As a professional manufacturer, YTL designs and produces active electric meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of active electric meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
| 1.Product Details | |||
| Product Name | three phase active electric meter | ||
| Installation type | front-mounted | ||
| Module No. | D521003 ( Active Electric Meter ) | ||
| Brand | YTL ( Active Electric Meter ) |
||
| Rated Current | 1.5(6),5(20),10(40),15(60) 20(80),30(100) |
||
| Reference Voltage |
3x220/380V 3x230/400V |
||
| Frequence | 50/60Hz | ||
| Display Mode | LCD6+1, counter6+1 | ||
| Accuracy | 1 | ||
| Impulse Constant | 1600imp/kWh | ||
| Start Current | 0.004Ib | ||
| Connection Mode | CT mode or direct mode | ||
| Communication& | / | ||
| Protocol | |||
| Power Consumption | ≤8VA ≤0.4Wh | ||
| Material of meter case | PC | ||
| Size | 230*170*72mm | ||
| Certificate | CE ISO9001 | ||
| Standard | IEC62052-11, IEC62053-21 | ||
| 2.Functions and characteristic | |||
| A. With simple structure and high reliability,the meter adopts three-chip synthetic techonology and some certain constants can be decided by users, | |||
| B. Measure and calculate the accumulative active power with power indicator and energy indicator, | |||
| C. With wide measuring range without hooks,shunt sampling is adopted to avoid tampering by pulling off the hooks, or shunting direct current, | |||
| D. Power failure in one phase (3P3W) or two phases (3P4W) will not affect normal energy measuring | |||
| E. The meter is electomagnetically compatible,anti-jamming and lightning-strike-proof | |||

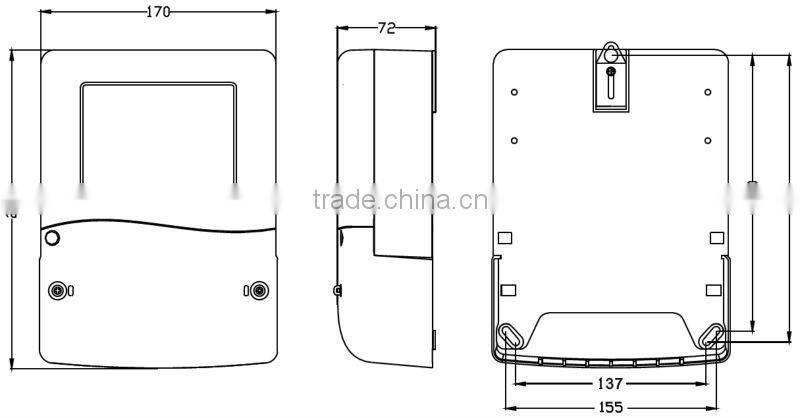

| 3.Outer and mount dimension: | |||
| | |||
| 4.Wiring diagram: | |||
| | |||
| 5.Transaction Information | |||
| MOQ | 500pcs | ||
| Sea Port | Shanghai | ||
| Payment Terms | TT/ LC | ||
| Supply Ability | 500,000pcs per month | ||
| Delivery time | 20-25 days | ||
| Normal Package | White box for electric meter | ||
If you are interested in our Three Phase Active Electric Meter, pls feel free to contact us at any time.
