Three Phase Four Module Tansparent Energy Meter

FOB Price

Negotiable / Piece

1000 Pieces(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	YTL
Model Number	D512001	Display Type	Analog Only
Phase	Three Phase	Measuring Energy Range	5(30)A; 10(40)A; 20(80)A
Accuracy Class	1.0	Output Voltage	3*220/380V
Operating Temperature	-40~+75	Dimensions	1007665

Product Description

Three phase four module tansparent energy meter

As a professional manufacturer, YTL designs and produces electronic energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.

YTL is devoted to develop and design all types of electronic energy meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.

1.Product Details
Product Name		Three phase four module tansparent energy meter
Installation type		Din rail
Module No.		D512001 ( tansparent energy meter )
Brand		YTL ( tansparent energy meter )
Rated Current		5(30)A; 10(40)A; 20(80)A
Reference Voltage		110V; 220V; 230V; 240V
Frequence		50/60HZ
Display Mode		LCD
Accuracy		1.0
Impulse Constant		800/1600/3200/6400imp/kWh;
Start Current		0.004Ib
Connection Mode		direct mode
Communication& Protocol		RS485
Power Consumption		voltage circuit≤0.6W; current circuit≤0.3VA
Material of meter case		PC
Size		116.57665
Certificate		CE
Standard		GB/T17215-2002; IEC61036-2000
2.Functions and characteristic
A. Eight tariffseight period of time. It can record 30 times abnormity events, like power offcase open and so on. Forward energy measurement includes the reverse active energy and can store separately. Also it has anti-tamper and prepaid function as well as display and record load curve.
B. Measurement in wide range and good ability in overload.
C. Communication agreement meets IEC62056-21 or DL 645.
D. Forward and reverse kWh measurement: accurately measure forward and reverse power

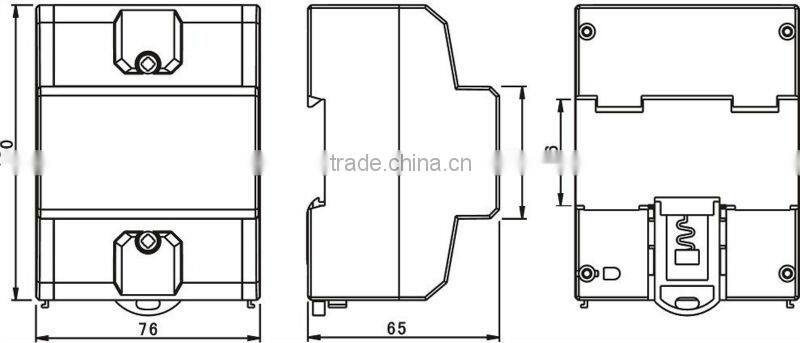

3.Outer and mount dimension:

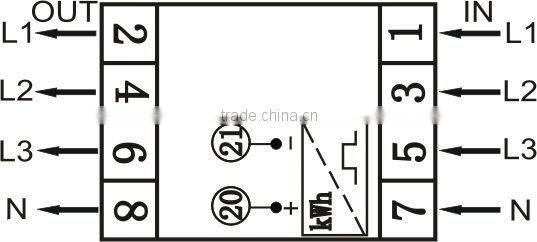

4.Wiring diagram:

5.Transaction Information
MOQ	500pcs
Sea Port	Shanghai
Payment Terms	TT prepayment
Supply Ability	50,000pcs of energy meter per month
Delivery time	20-25 days
Normal Package	white box or colorful box for RF meter

If you are interested in Three phase DIN-Rail RFmeter, pls feel free to contact us at any time.
