kWh meter digital 3 phase for energy measurement
As a professional manufacturer, YTL designs and produces kWh meter digital 3 phase which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of kWh meter digital 3 phase, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
| 1.Product Details | |||
| Product Name | kWh meter digital 3 phase for energy measurement |
||
| Installation type | din rail | ||
| Module No. | D512007 (kWh meter digital 3 phase) | ||
| Brand | YTL (kWh meter digital 3 phase) | ||
| Rated Current | 10(60)A, 20(80)A | ||
| Reference Voltage | 3*220/380V;3*230/400V | ||
| Frequence | 50-60Hz | ||
| Display Mode | LCD6+1 | ||
| Accuracy | 1 | ||
| Impulse Constant | 800imp/kWh | ||
| Start Current | 0.004Ib | ||
| Connection Mode | Direct mode | ||
| Communication& | / | ||
| Protocol | |||
| Power Consumption | ≤2W, 10VA |
||
| Material of meter case | PC | ||
| Size | 122.5*115*65mm | ||
| Certificate | CE ISO9001 | ||
| Standard | IEC62052-11, IEC62053-21 | ||
| 2.Functions and characteristic | |||
A. decoration with high-precision electric elements. It has the functions of high | |||
| B. LCD Display | |||

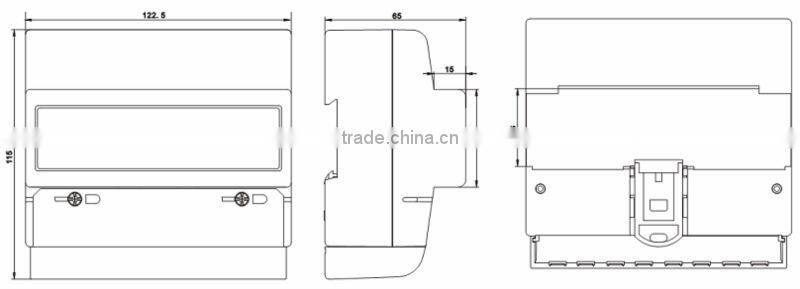

| 3.Outer and mount dimension: | |||
| | |||

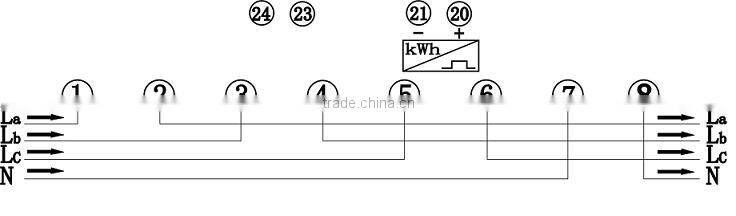

| 4.Wiring diagram: | |||
| | |||
| 5.Transaction Information | |||
| MOQ | 500pcs | ||
| Sea Port | Shanghai | ||
| Payment Terms | TT LC | ||
| Supply Ability | 500,000pcs per month | ||
| Delivery time | 20-25 days | ||
| Normal Package | White or color box for kWh meter digital 3 phase | ||
If you are interested in our kWh meter digital 3 phase for energy measurement, pls feel free to contact us at any time.
