Home > Products > Three phase DIN-rail kWh meter > Three Phase Four Module DIN-Rail Electricity Power Meter
Three Phase Four Module DIN-Rail Electricity Power Meter
- FOB SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YTL | |
| Model Number | D512002 | Display Type | Digital Only | |
| Phase | Three Phase | Measuring Energy Range | 1.5(6)A | |
| Accuracy Class | 1.0 | Output Voltage | 3*220/380V | |
| Operating Temperature | -40~+75 | Dimensions | 100mm * 76mm * 65mm |
Product Description
Specifications
Electricity Meter1. Installment mode: DIN RAIL
2. Smallest three phase meter in the world
Three phase four module DIN-Rail electricity power meter
As a professional manufacturer, YTL designs and produces electricity power meter which are costefficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of electricity power meter, concentrators and solution
applications. With a combined design of he special accessories, we have successfully developed series of
competitive products of small size, multifunction, low power consumption and
excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200
patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name | Three phase four module DIN-Rail electricity power meter | |
Installation type | Din rail | |
Installation type | D512002 ( electricity power meter ) | |
Brand | YTL ( electricity power meter ) | |
Rated Current | 1.5(6)A | |
Reference Voltage | 3*220*380V | |
Frequence | 50-60HZ | |
Display Mode | LCD 6+2 | |
Accuracy | 1 | |
Impulse Constant | 12000imp/kWh | |
Start Current | 0.004Ib | |
Connection Mode | CT type | |
Communication&Protocol | / | |
Power Consumption | ≤2W and 10VA | |
Material of meter case | PC | |
Size | 76*100*65mm | |
Certificate | ISO9001 | |
Standard | IEC62052-11/IEC62053-21 | |
2.Functions and characteristic | ||
A. LCD backlite display: optional | ||
B. LCD display without electricity: optional | ||
| ||
3.Outer and mount dimension | ||
| ||

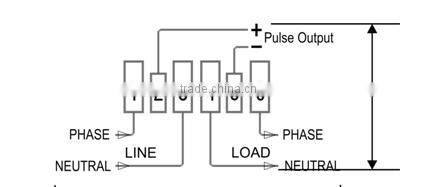

4.Wiring diagram | ||
| ||
5.Transaction Information | ||
MOQ | 500pcs | |
/ | electricity power meter | |
Sea Port | Shanghai | |
Payment Terms | TT LC | |
Supply Ability | 500,000pcs per month | |
/ | electricity power meter | |
Delivery time | 20-25 days | |
Normal Package | common box with electricity power meter | |
| ||
| ||
If you are interested in electricity power meter, pls feel free to contact us at any time. | ||
