Three Phase DIN-Rail Electricity Power Meter With RS485

FOB Price

Negotiable / Piece

500 Pieces(Min. Order)

Port FOB SHANGHAI
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	YTL
Model Number	D513004	Display Type	Digital Only
Phase	Three Phase	Measuring Energy Range	5(120)A
Accuracy Class	Active 0.5s, Reactive 1.0s, Active 0.5s, Reactive 1.0s	Output Voltage	3*230/400V
Operating Temperature	-20 ~ 50℃	Dimensions	125mm * 101mm * 65mm

Product Description

Three Phase DIN-Rail Electricity Power Meter with RS485

As a professional manufacturer, YTL designs and produces Din rail meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.

YTL is devoted to develop and design all types of Din rail meter, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.

1.Product Details

Product Name

Three Phase DIN-Rail Electricity Power Meter with RS485

Installation type

din rail ( Electricity Power Meter )

Module No.

D513004 ( Electricity Power Meter )

Brand

YTL

Rated Current

5(120)A

Reference Voltage

3x230 / 400

Frequence

50-60HZ

Display Mode

LCD7+1

Accuracy

0.5;1.0

Impulse Constant

1600imp/kWh

Start Current

0.004Ib

Connection Mode

Direct Mode

Communication&

RS485

Protocol

Power Consumption

≤1W, ≤0.5VA

Size

125*101*65mm

Standard

IEC62052-11/IEC62053-21

2.Functions and characteristic

A.For the three phase Din-rail pass through meter;

B.Based electronic nocontact meter;

C.Produced for measurement and recording of active, reactive and total electric power;

D.Networks of alternating current (50 or 60 Hz) in conducting and blocking directions;

E.Three phase 4 wire;

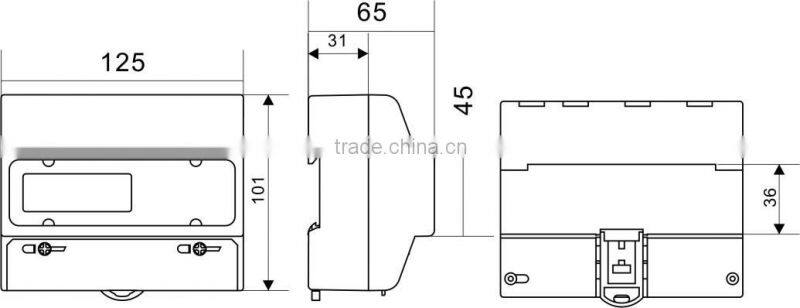

3.Outer and mount dimension:

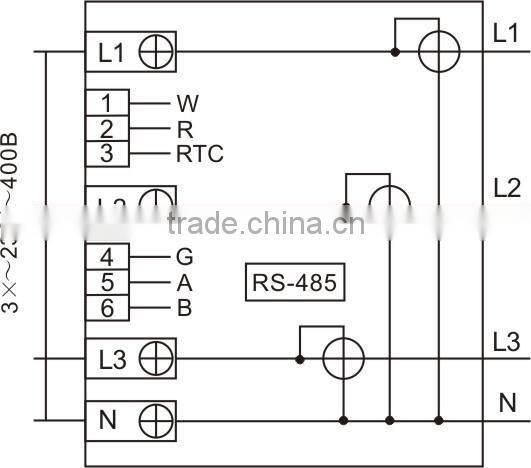

4.Wiring diagram:

5.Transaction Information
MOQ	500pcs
Sea Port	Shanghai
Payment Terms	TT LC

Supply Ability 500,000pcs per month

Delivery time 20-25 days

Normal Package Din rail meter with common box
