New Generation of Z94-C Series Automatic Nail Making Machine

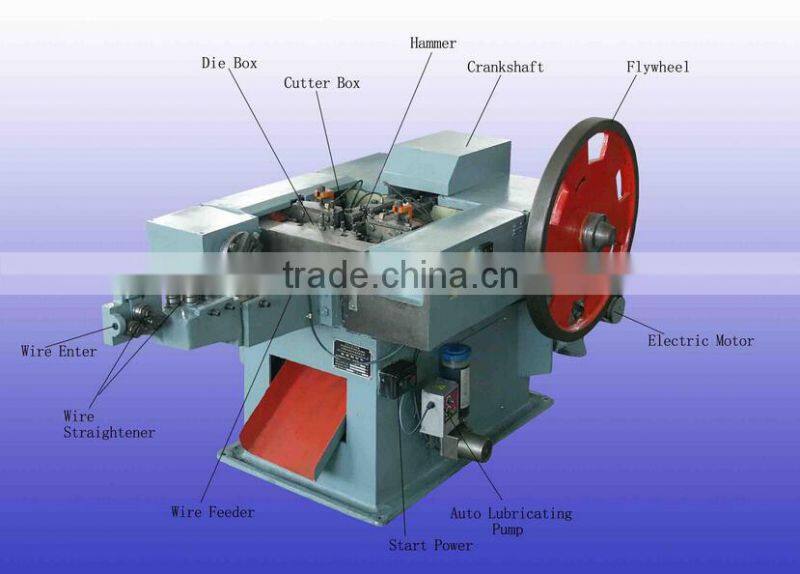

Advantage of Z94-C Nail Making Machine
1. The machine is made from bearing, which make the machine less impact and low noise.
2. The machine can feed the raw material automatically.
3. The machine can add lubricating oil automatically.
4. The machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other specialshaped nail which are suitable for high speed studs for welding machine and nail gun.
5. One model nail making machine can make different size of nails.
6. The warranty time of our machines is 2 years.

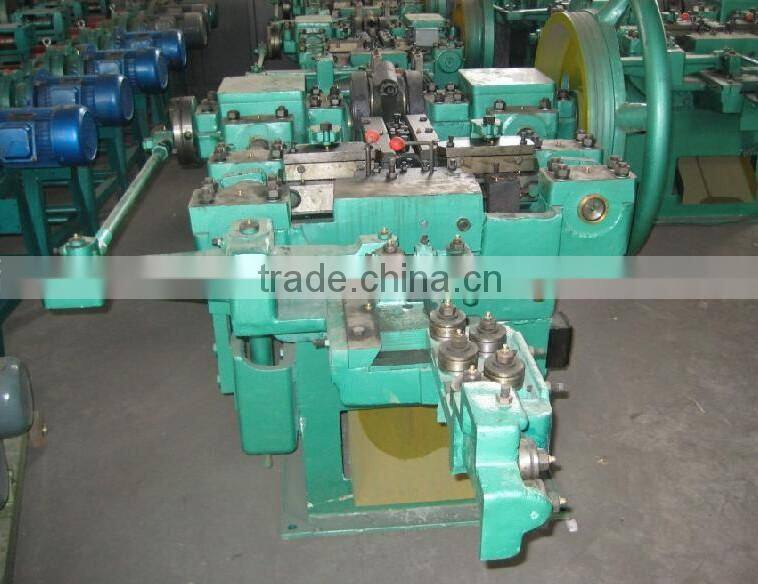

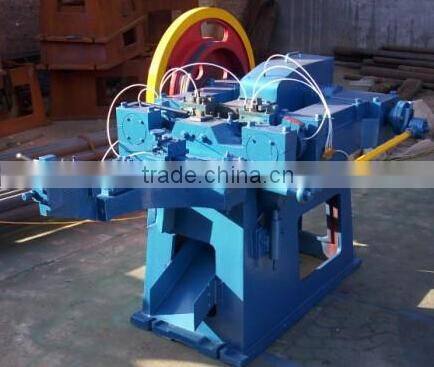

Z94-C series automatic nail making machine
Function:This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other specialshaped nail which are suitable for high speed studs for welding machine and nail gun.
Model | Z94-5.5C Automatic nail making machine | Z94-4C Automatic nail making machine | Z94-3C Automatic nail making machine | Z94-2C Automatic nail making machine | Z94-1C Automatic nail making machine |
Max. dia. of nail | 5.5mm | 4.5mm | 3.5mm | 2.8mm | 1.6mm |
Min. dia. of nail | 3.8mm | 2.8 mm | 1.8 mm | 1.2 mm | 0.9 mm |
Max. Length of nail | 150mm | 100mm | 75mm | 50mm | 25mm |
Min. length of nail | 75mm | 50 mm | 25mm | 16mm | 9mm |
Motor power | 5.5kw | 4kw | 3kw | 2.2kw | 1.5kw |
Nail making speed | 220pcs/min | 260pcs/min | 320pcs/min | 350pcs/min | 450pcs/min |
L*W*H | 2.5*1.6*1.5m | 2.2*1.6*1.65m | 2.0*1.4*1.4m | 1.7*1.3*1.4m | 1.5*1.3*1.2m |
Weight | 2.3tons | 2tons | 1.8 tons | 1.45 tons | 1.2ton |
Output | 2000kg/8h | 1500kg/8h | 800kg/8h | 500kg/8h | 80kg/8h |
1. What does the price and delivery quote include?
.All prices are quoted in U.S. dollars and are subject to change.
.Stock availability is subject to prior sales.
.Prices quoted are basically FOB Tianjin Port. Also, CIF/CNF prices are available according to your requests.
2. Can I get samples?
.Yes, there're free samples available. Standard sizes differ, the purpose is for easy delivery through TNT/DHL/UPS etc.
.The delivery fee is paid by customers and will be returned after orders from it.
3. What are your payment terms?
.payment terms are net 30%, balanced after received the copy of B/L. Payment terms differs according to certain circumstances.
.Also, T/T, L/C, D/P, D/A etc, are acceptable
