BARBED WIRE MAKING MACHINE
Barbed Wire Machine
1.High Speed
2.SGS ISO BV Approved Factory
3.One year warranty
4.Fast Delivery
Automatic Barbed Wire Machine/Concertina Wire Machine

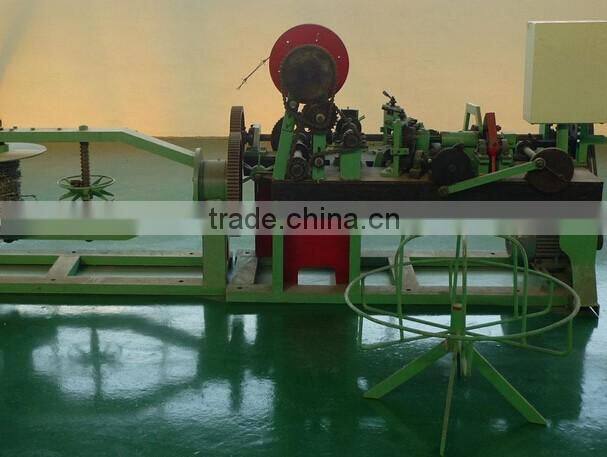

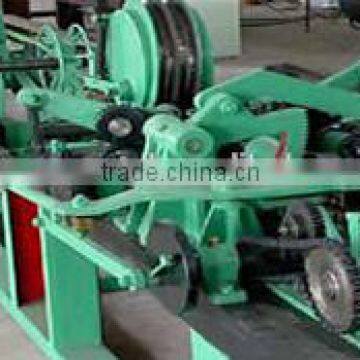

CY-A:Traditional Double Twisted Barbed Wire Machine
1.It is designed to produce double-strand barbed steel wire.
2.The machine is of horizontal design,consisting of two parts,assembled together at the middle.
3.It is safe and reliable in operation,capable of turning out high quality products with consistency.
Items | Units | Parameters |
Motor | KW | 3 |
Main drive shaft speed | r/min | 402 |
Unit wire diameter | mm | 2.2-3.0 |
Barbed wire diameter | mm | 1.8-2.2 |
Barbed distance | mm | 76 127 |
Twist number | pcs | 3.5 |
Theoretical yield | kg/h | 70 |
Total weight | kg | 1200 |
Dimension of main part | mm | 1950x950x1300 |
Dimension of take-twisting part | mm | 1760x550x760 |
Packaging: with wooden pallets, in plastic film or as per customers’ requirements.
Shipping: within 15 days after receiving the prepayment.
Guarantee and After-sale Service:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.Factory Own Designing and Inspection Team.
4.All machines were tested and adjusted before delivery.
5.Engineers avaliable to service machinery overseas: Worker-training, installation.etc.
6.24 hours technical support by e-mail or calling service.
Advantages of our factory:
1)Have cooperated with a lot of importers.
2)Experienced in doing business with big customers;
3)Own designing team for new products development;
4)Factory audited by SGS,BV,ISO.
5)Have our own inspection team to do the quality control.
1.MOQ: One Set.
2.Payment: T/T or L/C
3.Machine Specifications: could be made as per your requirements.
4.Apply to:
1)Traditional Type Barbed Wire Machine could only manufacture the double strands barbed wire;
2)The Reverse Type could produce both single strands and double strands barbed wire.
5.Standard accessory: Bobbin 4 UNITS/Set
6.All the Barbed Distance: could be adjustable.
