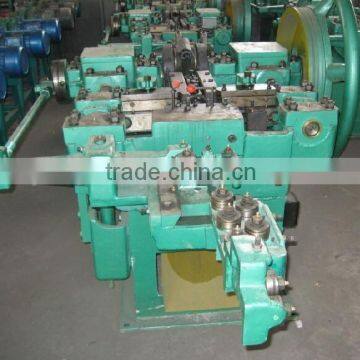

Z94-C Series Automatic Nail Making Machine
Advantage of Z94-C Nail Making Machine
1. The machine is made from bearing, which make the machine less impact and low noise.
2. The machine can feed the raw material automatically.
3. The machine can add lubricating oil automatically.
4. The machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other specialshaped nail which are suitable for high speed studs for welding machine and nail gun.
5. One model nail making machine can make different size of nails.
6. The warranty time of our machines is 2 years.
Model No. |
LS3-500 |
Maxim Inlet Wire Diameter |
6.5mm |
Minimum Outlet Wire Diameter |
2.0mm |
Total motor power |
37kw |
Drawing speed |
150m/min |
Z94-C series automatic nail making machine
Function:This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other specialshaped nail which are suitable for high speed studs for welding machine and nail gun.
Model |
Z94-5.5C Automatic nail making machine |
Z94-4C Automatic nail making machine |
Z94-3C Automatic nail making machine |
Z94-2C Automatic nail making machine |
Z94-1C Automatic nail making machine |
Max. dia. of nail |
5.5mm |
4.5mm |
3.5mm |
2.8mm |
1.6mm |
Min. dia. of nail |
3.8mm |
2.8 mm |
1.8 mm |
1.2 mm |
0.9 mm |
Max. Length of nail |
150mm |
100mm |
75mm |
50mm |
25mm |
Min. length of nail |
75mm |
50 mm |
25mm |
16mm |
9mm |
Motor power |
5.5kw |
4kw |
3kw |
2.2kw |
1.5kw |
Nail making speed |
220pcs/min |
260pcs/min |
320pcs/min |
350pcs/min |
450pcs/min |
L*W*H |
2.5*1.6*1.5m |
2.2*1.6*1.65m |
2.0*1.4*1.4m |
1.7*1.3*1.4m |
1.5*1.3*1.2m |
Weight |
2.3tons |
2tons |
1.8 tons |
1.45 tons |
1.2ton |
Output |
2000kg/8h |
1500kg/8h |
800kg/8h |
500kg/8h |
80kg/8h |
