Specifications
1.accurate color register2.easy operation
3. it can print roll plastic film, such as PP,PE,PVC,BOPP
Four colors flexographic printing machine
Feature:
1.1The meter counter can set printing quantity according to the requirements,stop the machine automatically at the quantity or when the material is cut off.
1.2 Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
1.3 The printing ink is spread by the anilox cylinder with even ink color.
1.4 Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.360continuous and adjustable longitudinal register device.
1.5 The frequency control of motor speed adapts to different printing speeds.
1.6 Suitable for printing the packing material as PE and PP plastic bags,glass papers rolling papers,etc.
Main Technical Specification
Model |
YT-4600 |
YT-4800 |
Max. width of material |
600mm |
800mm |
Max printing width |
560mm |
760mm |
Length of printing product |
191-914mm |
191-914mm |
Diameter of Roll Material |
φ450mm |
φ450mm |
Printing Speed |
5-50m/min |
5-50m/min |
Thickness of printing Plate |
2.38mm |
2.38mm |
Total power |
8.5kw |
11.2kw |
Overall Dimension |
4300×1700×2500mm |
4300×1900×2500mm |
Weight |
3000kg |
2000kg |

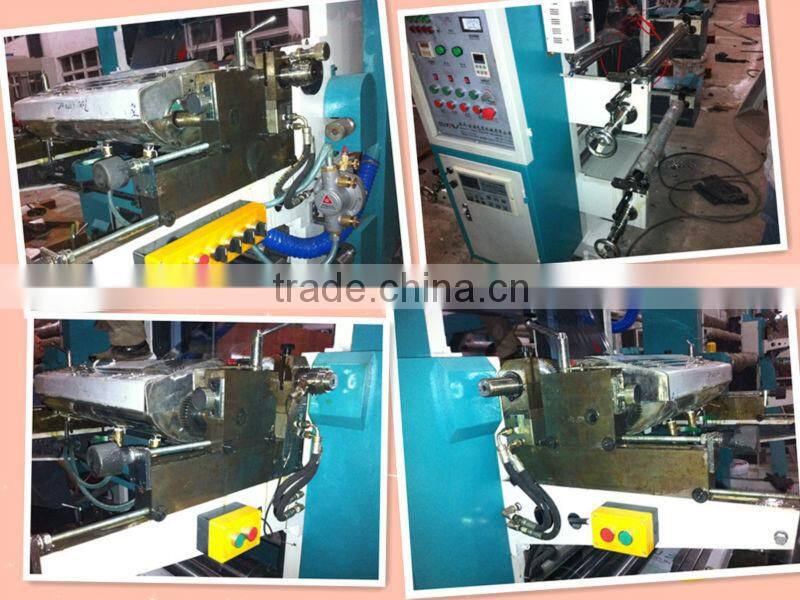

Picture Show
