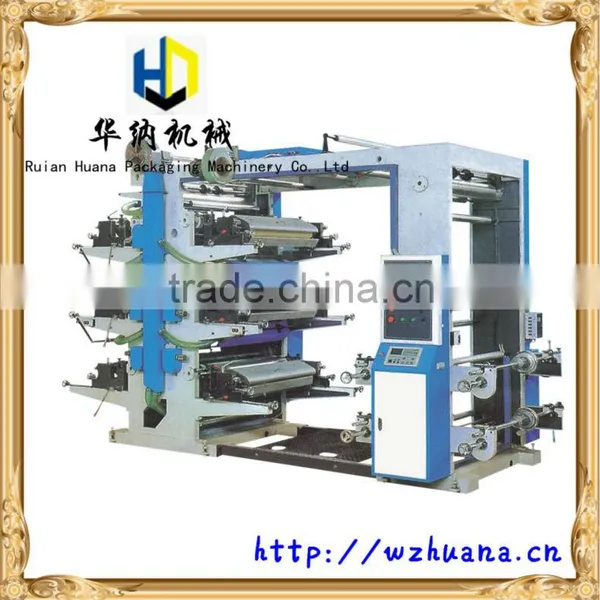

Help CenterShoping Bag Six Color Flexographic Plastic Print Press
Related Products
-
High Quality Two Color Flexographic Printing MachineNegotiableMOQ: 1 Set -
Newest Type Two Color Flexographic Plastic Bag Printing PressNegotiableMOQ: 1 Set
-
High Speed Multi-Color Flexographic Plastic Bag Printing PressNegotiableMOQ: 1 Set
-
Fashioned Multi-Color Flexographic Plastic Bag Printing PressNegotiableMOQ: 1 Set
-
YT-4600 Flexographic Printing MachineNegotiableMOQ: 1 Set
Specifications
1.it can print roll plastic film, such as PP,PE,PVC,BOPP2.easy operation
3. flexible starting
4.accurate color register
Feature:
1.1The meter counter can set printing quantity according to the requirements,stop the machine automatically at the quantity or when the material is cut off.
1.2 Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
1.3 The printing ink is spread by the anilox cylinder with even ink color.
1.4 Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.360continuous and adjustable longitudinal register device.
1.5 The frequency control of motor speed adapts to different printing speeds.
1.6 Suitable for printing the packing material as PE and PP plastic bags,glass papers rolling papers,etc.
Main Technical Specification
TYPE |
YT-6800-6color-flexo press |
|
Max.width of material |
800mm |
|
Max.printing width |
760mm |
|
Max.printing speed |
50m/min |
|
Max.Mechanical speed |
60m/min |
|
Max. unwinding and rewinding diameter of Roll Material |
Φ450mm |
|
Internal Diameter of Roll Core |
φ76mm |
|
Cylinder diameter |
φ400mm(Customer can order other sizes) |
|
Rang of Repeat Printing Length |
191-914mm |
|
Plate Thickness(Bothside adhesive included) |
2.38mm |
|
Accuracy of Registration |
Vertical |
+/-0.25mm |
Horizontal |
||
Tension control range |
0-25kg |
|
Heating Power |
9kw |
|
Main motor power |
15kw |
|
Total power |
23kw |
|
Weight of Machine(film packing dimension) |
4200kg |
|
Machine dimension(L x W x H)(film packing dimension) |
L4300×W1900×H2950mm |
|
Wooden packing Dimension |
L4450×W2050×H3100mm |
|
Picture Show
Packing and Loading
