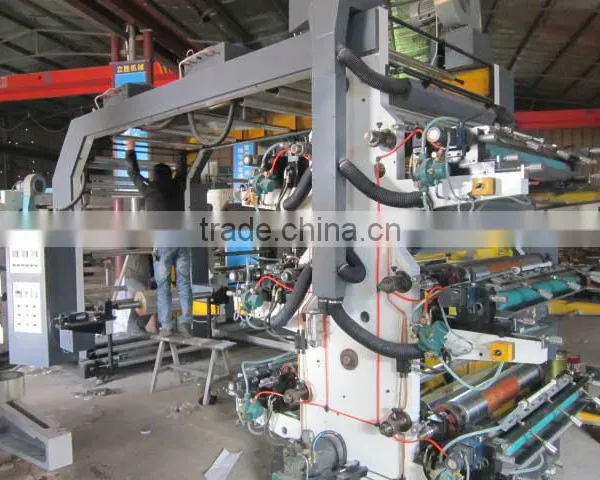

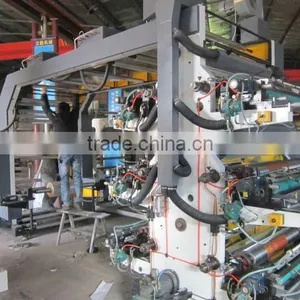

Help CenterPlastic Bag Printing Machine YT-2600 Ldpe Film Printing Machine
Related Products
-
Two Color Flexo Printing MachineUS$ 8,000 - 12,000MOQ: 1 Set -
Flexo Printing MachineryUS$ 8,500 - 12,500MOQ: 1 Set
-
Flexo Printing MachineryUS$ 8,500 - 25,000MOQ: 1 Set
-
YT-4800 Flexographic Printing MachineUS$ 10,000 - 12,000MOQ: 1 Set
-
YT-41000 Flexographic Printing MachineUS$ 10,000 - 12,000MOQ: 1 Set
Specifications
Ldpe Film Printing Machine1.Resin plate easy to change
2.Best printing precision
3.Save 30% electric and workshop.

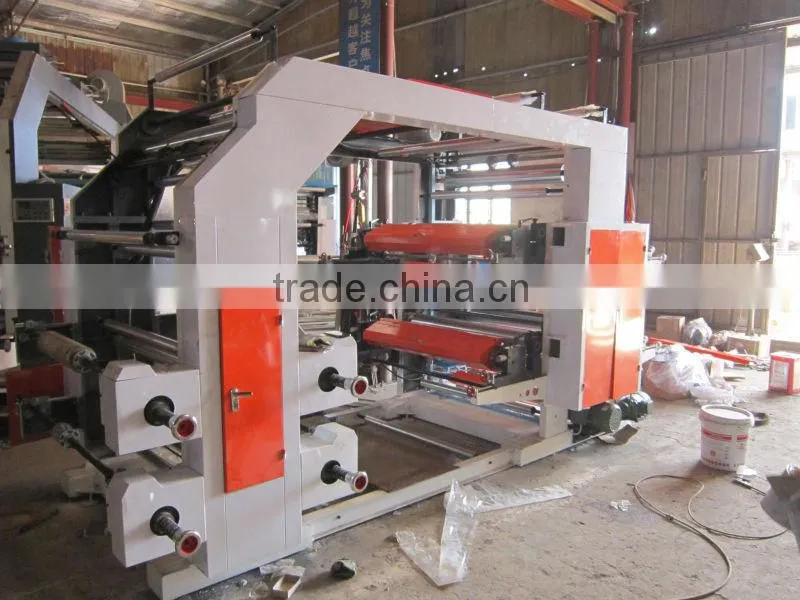

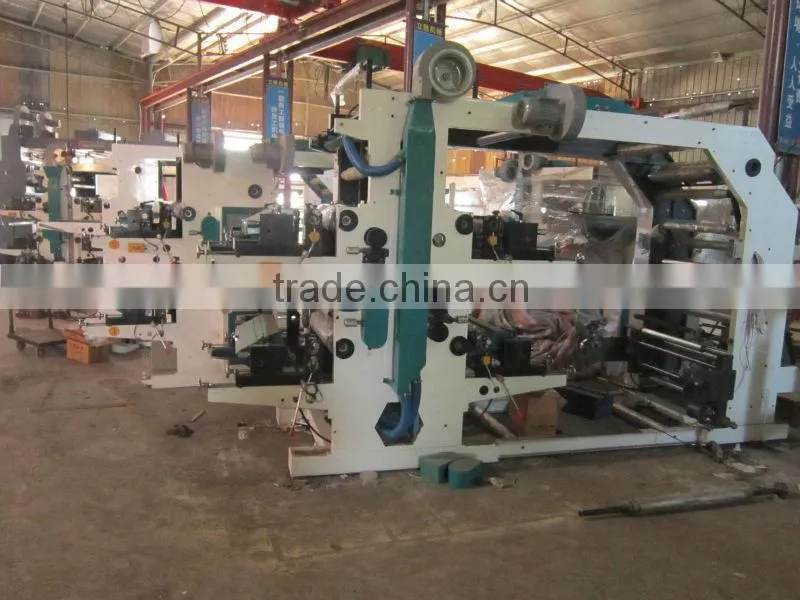

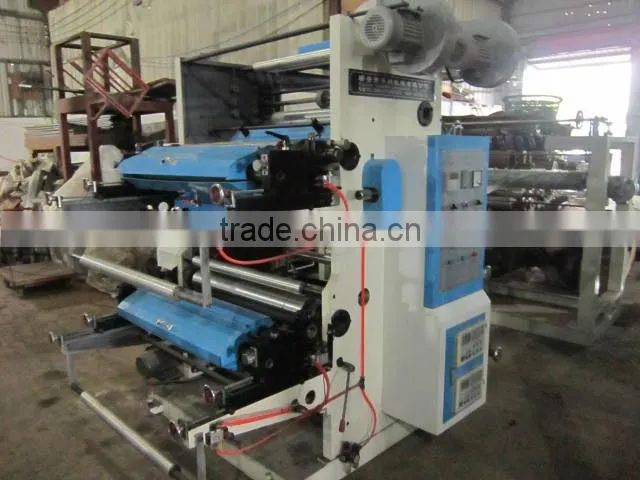

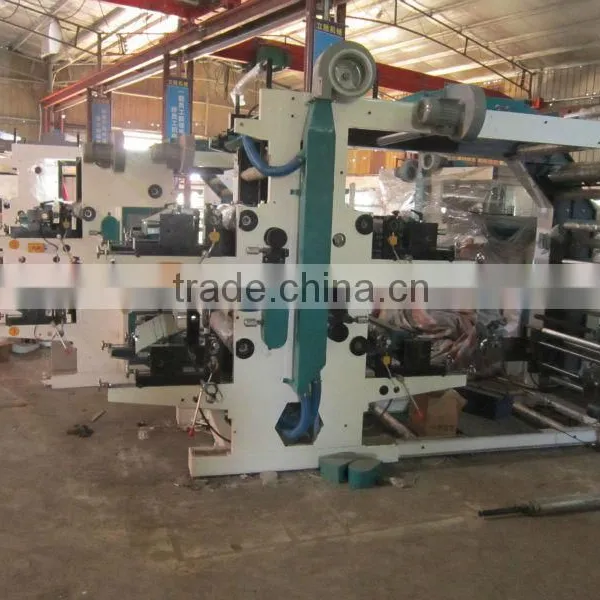

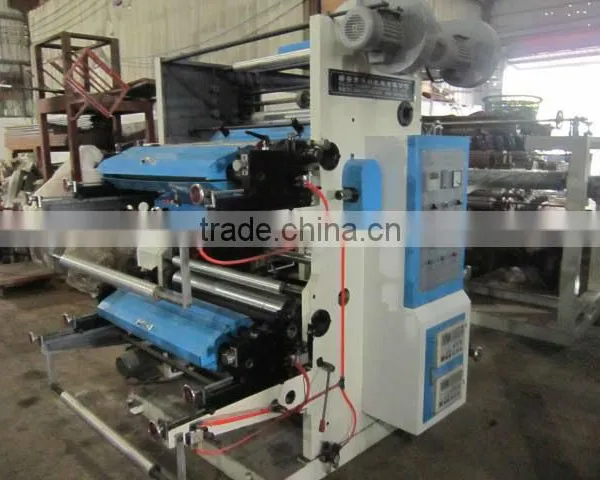

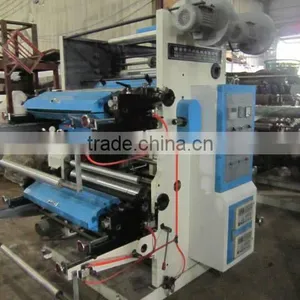

Ldpe Film Printing Machine
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

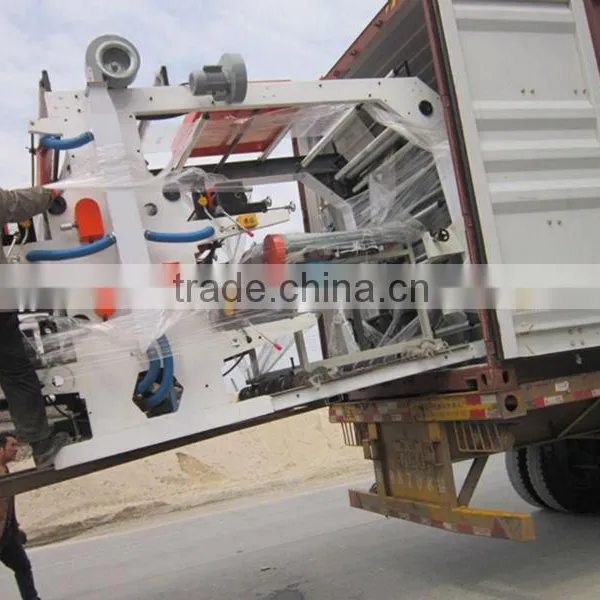

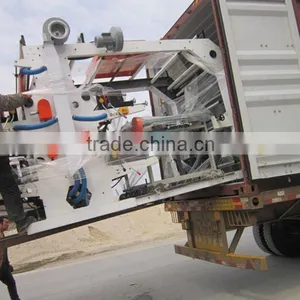

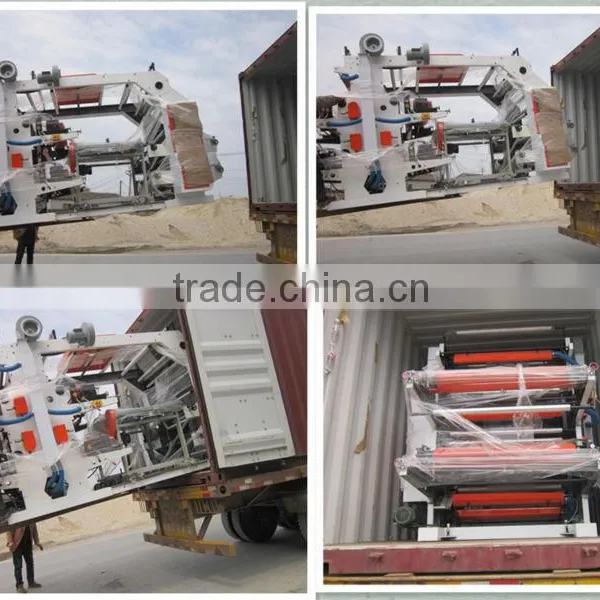

The printing cylinder is installed on one side which can be load in one container without separating.
This machine can be installed with Reverse printing device to meet customers' requirement of printing both side of substrate.
Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.

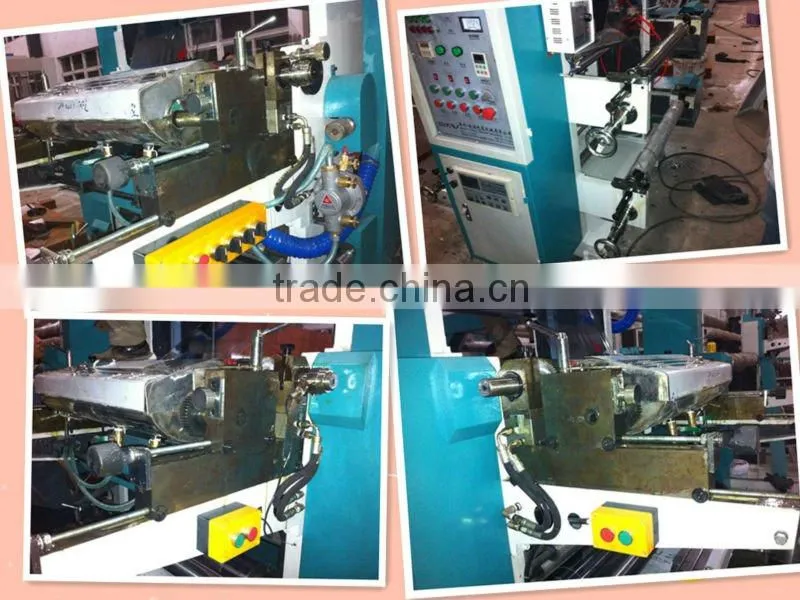

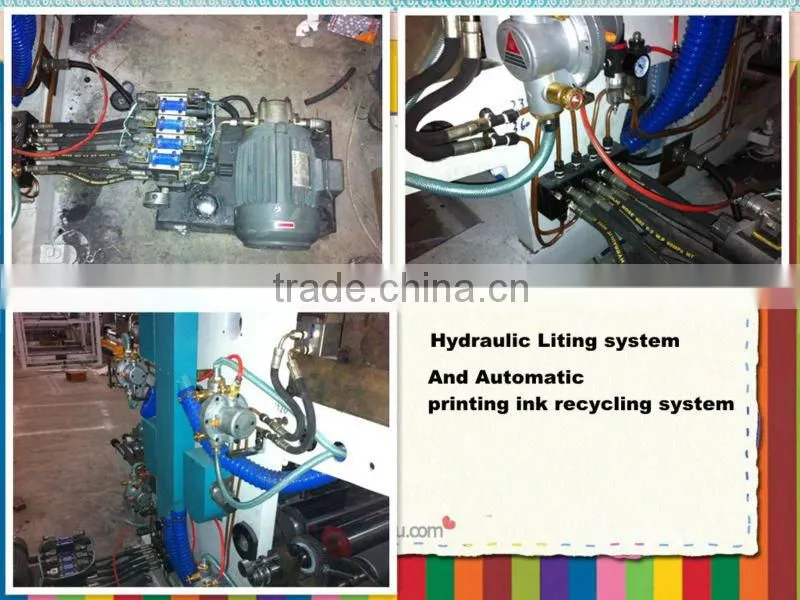

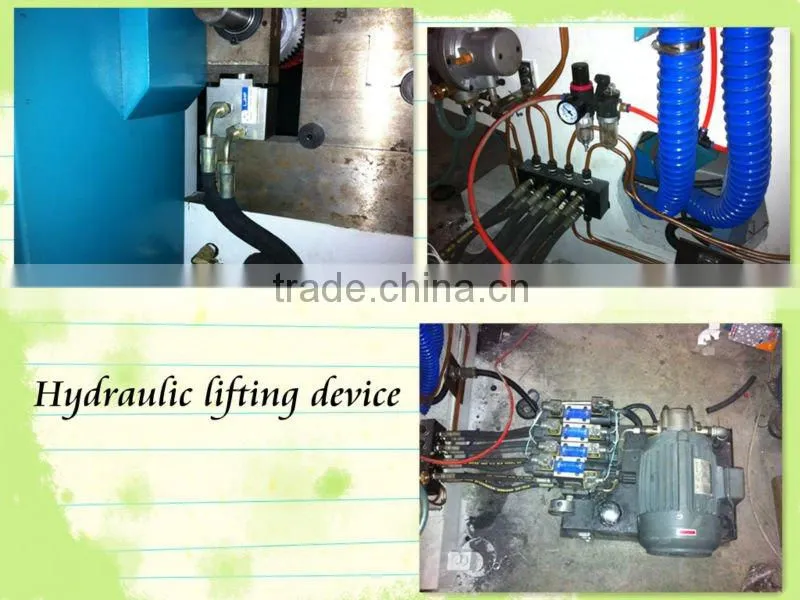

3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360
°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Parameter:
TYPE |
YT-2600 2color flexographic press |
|
Max.width of material |
600mm |
|
Max.printing width |
560mm |
|
Max.printing speed |
50m/min |
|
Max.Mechanical speed |
60m/min |
|
Max. unwinding and rewinding diameter of Roll Material |
Φ450mm |
|
Internal Diameter of Roll Core |
φ76mm |
|
Cylinder diameter |
φ400mm(Customer can order other sizes) |
|
Rang of Repeat Printing Length |
191-914mm |
|
Plate Thickness(Both side adhesive included) |
2.38mm |
|
Accuracy of Registration |
Vertical |
+/-0.25mm |
Horizontal | ||
Tension control range |
0-25kg |
|
Heating Power |
4kw |
|
Main motor power |
8kw |
|
Total power |
12kw |
|
Weight of Machine(film packing dimension) |
1800kg |
|
Machine dimension(L x W x H)(film packing dimension) |
L2500×W1700×H2200mm |
|
Wooden packing Dimension |
L2650xW1850xH2350mm |
|
