Specifications
1.The flexo printing machine introduce sentitization resin as flexible printing plate2.high speed
3.CE standard

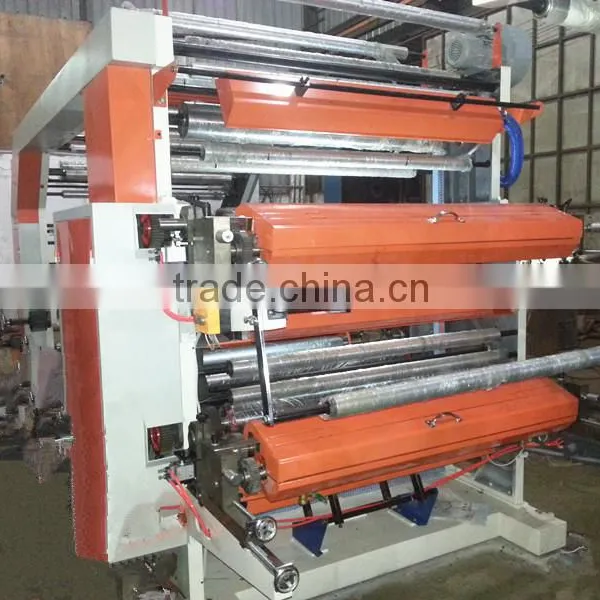

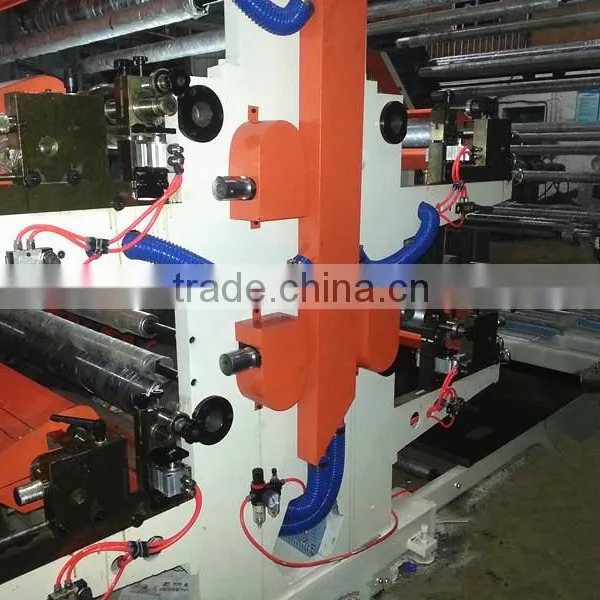

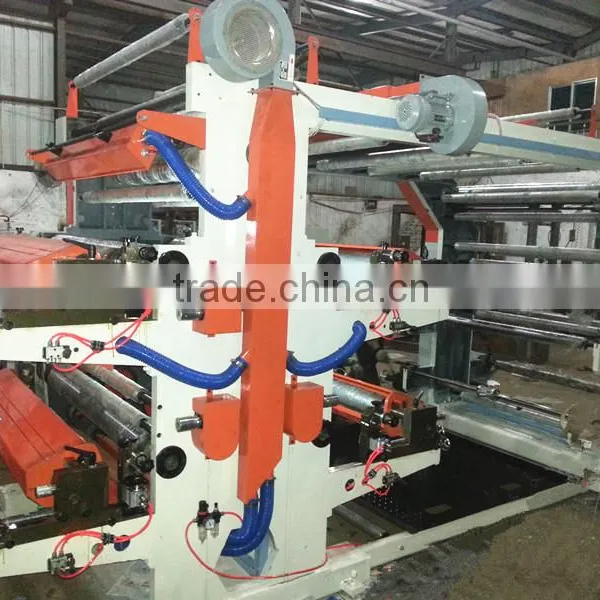

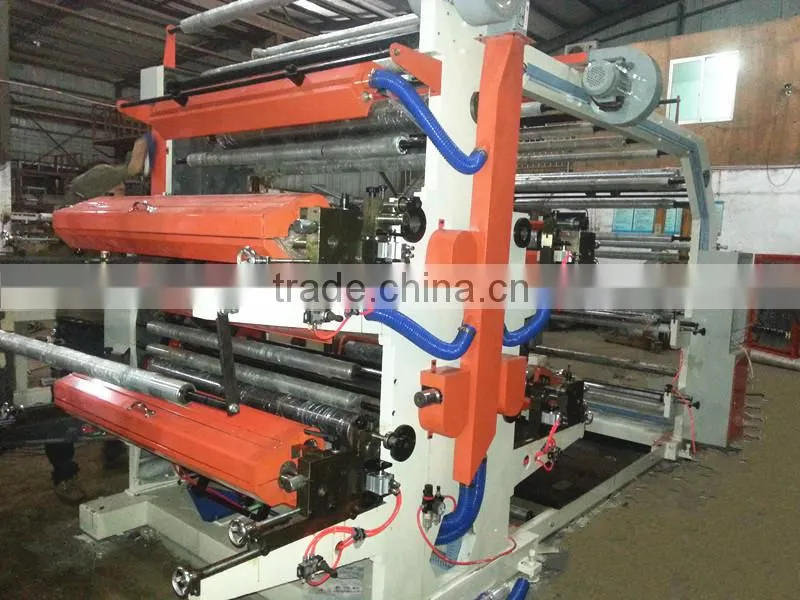

YT-4600Series Flexo Printing Machine

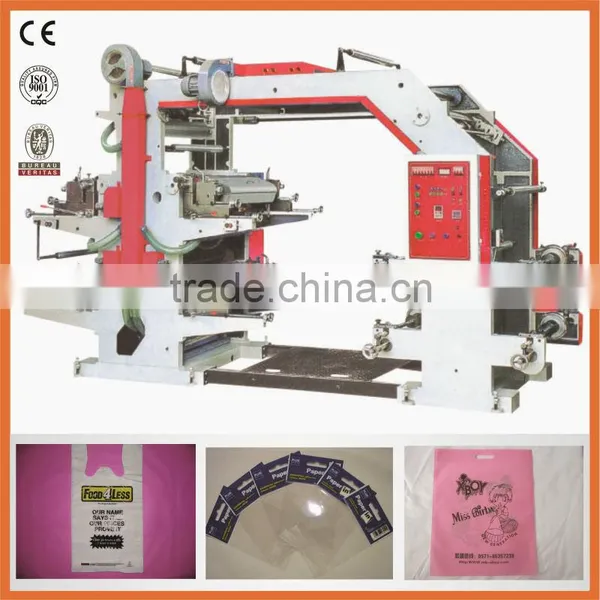

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Feature:
Main Technical Parameter:
TYPE |
YT-4600-4color-flexo press |
|
Max.width of material |
600mm |
|
Max.printing width |
560mm |
|
Max.printing speed |
50m/min |
|
Max.Mechanical speed |
60m/min |
|
Max. unwinding and rewinding diameter of Roll Material |
Φ450mm |
|
Internal Diameter of Roll Core |
φ76mm |
|
Cylinder diameter |
φ400mm(Customer can order other sizes) |
|
Rang of Repeat Printing Length |
191-914mm |
|
Plate Thickness(Bothside adhesive included) |
2.38mm |
|
Accuracy of Registration |
Vertical |
+/-0.25mm |
Horizontal | ||
Tension control range |
0-25kg |
|
Heating Power |
7kw |
|
Main motor power |
11.5kw |
|
Total power |
17kw |
|
Weight of Machine(film packing dimension) |
3000kg |
|
Machine dimension(L x W x H)(film packing dimension) |
L4300×W1700×H2500mm |
|
Wooden packing Dimension |
L4450×W1850×H2650mm |
|
