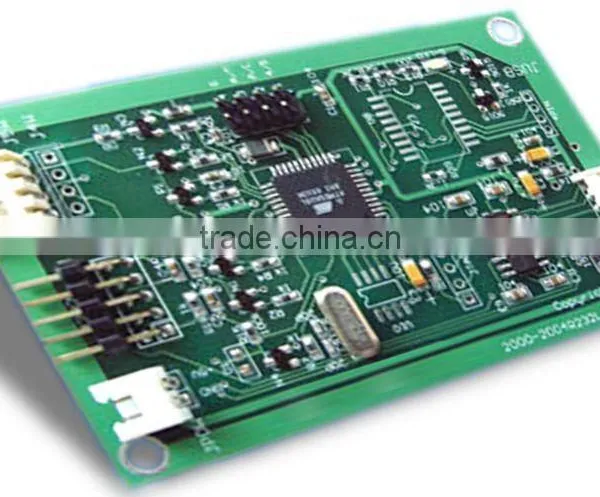

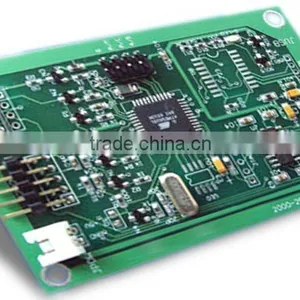

LeadingTouch 5200S Controller for 5 Wire Resistive Touch Panel

Name: LeadingTouch 5200S Controller for 5 Wire Resistive Touch Panel
Brand: LeadingTouch
SKU: 117868983

US$ 10 - 50 MOQ: 1 Piece

Key Specifications

Brand Name:

LeadingTouch

Model Number:

5020S 5 Wire Resistive Controller

Place of Origin:

Beijing, China

Leadingtouch Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin China

Delivery Detail:

Delivery time depends on order quantity.

Brand Name LeadingTouch

Model Number 5020S 5 Wire Resistive Controller

Place of Origin Beijing, China

Specifications

1, 5 wire ressistive controller
2, elo 5-wire 232 controller compatible

5200S-5-Wire Resistive Serial Controller Specification:

Environmental Conditions
Temperature	Operating Range0°C ~ 65°C Storage Range-25°C ~ 85°C
Humidity	Operating Range10%~90% RH (no dew falls) Storage Range10%~90% RH (no dew falls)
Altitude	Operating Altitude10,000 feet (3048m)
Shock and Vibration	Three axis sine wave, 50 Hz to 2kHz, 1G, 2 minutes / Octave with dwell on resonances.
Flammability	The PCB substrate and all plastic components, such as headers and connectors are rated UL 94 V0.

Electrical Characteristics
Supply Voltage	+5V DC ( ±10%)
Power Consumption	Operating : 80~90mA Non-operating : 120~130 mA Max. current : 140mA Min. current : 80mA
Expend Power	124 mA
Interface	Serial RS-232
Baud Rate	9600
Electrostatic Protection	Per EN 61000-4-2, 1995 : Meets Level 4 (15 kV air / 8 kV contact discharges)
Touch Resolution	4096 x 4096
Conversion Time	Approximately 10 ms per coordinates set.

Mechanical Characteristics
Dimensions	PCB board outside dimension : 84 x 53 mm.. Mounting hole located 4mm horizontally and vertically inside each corner.View 5200S Drawing.
Standard Cables	Standard external RS-232 cable connecting the controller with the computer serial port.
Connectors	Serial Connector P2 1X5,2.0mm Female Type connector on board for connection with RS-232 port. Serial Connector P4 : RS232 2x5 male header with pins on 2.54mm centers for connection with RS-232 port. Touchscreen Connector P5 : J5W 1x5 male header with pins on 2.54mm centers for connection with the touch panel. Power connector P3 : JPOW 1x2 header with pins on 2.54mm centers.
