Surface Acoustic Wave (SAW) Touch Panel Controller

Surface Acoustic Wave (SAW) Touch Panel Controller thumbnail-1
Surface Acoustic Wave (SAW) Touch Panel Controller photo-1
US$ 30 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
LeadingTouch
Model Number:
6000U Surface Acoustic Wave SAW USB Controller
Contact Supplier Request Quote Chat Now
Leadingtouch Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name LeadingTouch
Model Number 6000U Surface Acoustic Wave SAW USB Controller

Specifications

1, SAW usb controller for all size
2, can use elo and 3m driver

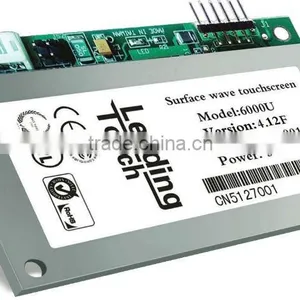

LeadingTouch 6000U Sreface Acoustic Wave SAW USB interface Controller, the controller supplied by Leadingtouch, is designed for Surface Acoustic Wave touchscreen, can support full series of SAW touch product .

6000U controller providing USB interface with many superior advantages such as stable performance and fast reaction.



6000U Touchscreen USB Controller Specification:
Environmental Conditions
Temperature
Operating Range0°C ~ 65°C
Storage Range-25°C ~ 85°C
Humidity

Operating Range10%~90% RH (no dew falls)
Storage Range10%~90% RH (no dew falls)
Altitude
Operating Altitude10,000 feet (3048m)
Shock and Vibration
Three axis sine wave, 50 Hz to 2kHz, 1G, 2 minutes / Octave with dwell on resonances.
Flammability
The PCB substrate and all plastic components, such as headers and connectors are rated UL 94 V0.



Electrical Characteristics
Supply Voltage
+5VDC (+4.75V to +5.25V)
Supply Curren

85 mA, typical at +5V DC
Max . current : 150 m
Electrostatic Protection

Per EN 61000-4-2, 1995 : Meets Level 4
(15 kV air / 8 kV contact discharges)
Interface

USB 1.1 (Full Speed) Plug and play compatible
Touch Resolution
4096 x 4096, size independent
Conversion Time
Approximately 15ms per coordinates set
Reliability

MTBF greater than 300,000 hours
per MIL-HDBK-217-F2 using the part stress calculation method for ground benign environment with an ambient temperature of 25°C

Mechanical Characteristics
Construction
Fourlayer surface-mount design with internal ground plane for EMI suppression.
Dimensions

PCB87 x 56 x 12mm

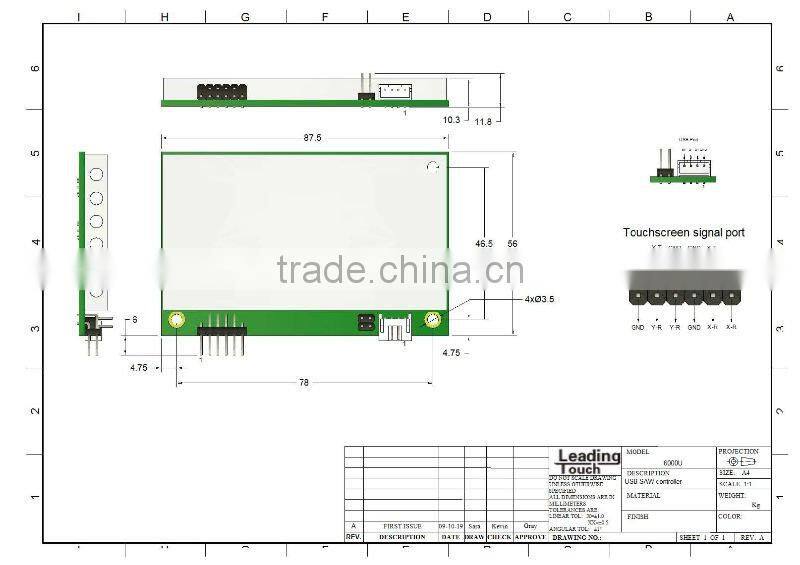

Refer to 6000U Drawing
Standard Cables

Standard external USB cable connecting the SAW USB controller with the computer USB port:
Connectors
USB Output

Connector : P2
1X4,2.0mm Female connector on board for
connection with USB port.
Touchscreen

connector : P3
A dual row by six position header with 0.635 mm square pins
spaced on 2.54 centers for connection with touch panel.

Surface Acoustic Wave (SAW) Touch Panel Controller
