Help Center6020U Surface Acoustic Wave SAW Touch Screen USB Controller
Related Products
-
Dual 232 and USB 4 Wire Resistive Touch ControllerUS$ 20 - 50MOQ: 1 Piece -
Resistive Touchscreen ControllersUS$ 30 - 60MOQ: 1 Piece
-
4-Wire Resistive Touchscreen ControllersUS$ 30 - 60MOQ: 1 Piece
-
Resistive Touchscreen ControllersUS$ 30 - 50MOQ: 1 Piece
-
Dual Rs232 and USB Touch Controller for SAW Touch ScreenUS$ 30 - 50MOQ: 1 Piece
Specifications

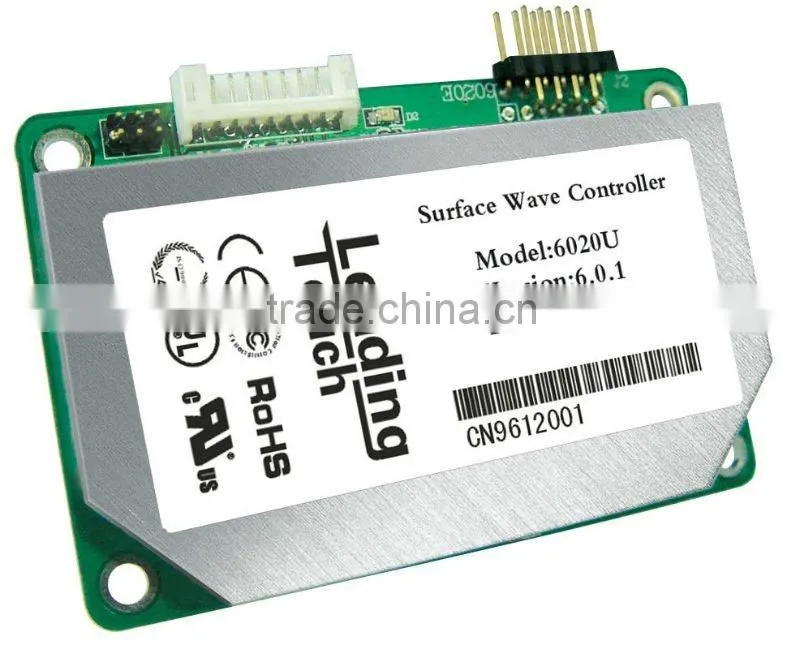

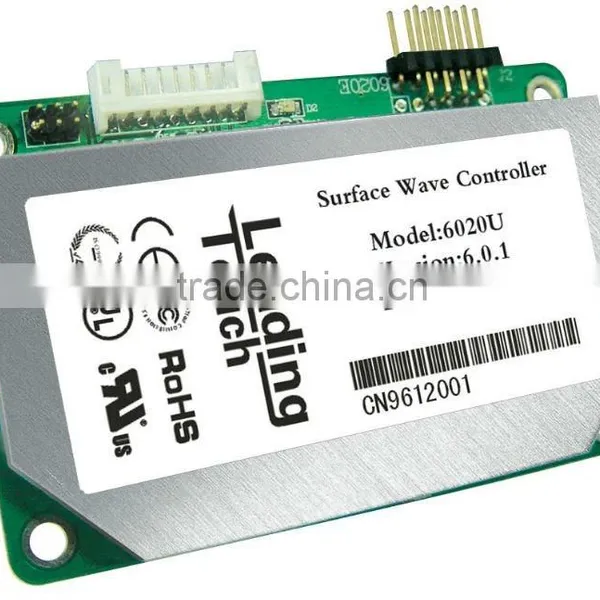

We supply Touch Screen SAW Controller Card with good quality, competitive price and excellent after-sale service.LeadingTouch 6020U Surface Acoustic Wave SAW Touch Screen USB Controller, the newest controller supplied by Leadingtouch, is designed for Surface Acoustic Wave touchscreen, can support full series of SAW touch product .
6020U controller providing USB interface with many superior advantages such as stable performance and fast reaction.
Model |
6020U |
Construction |
Four-layer surface-mount design with internal ground plane for EMI suppression. |

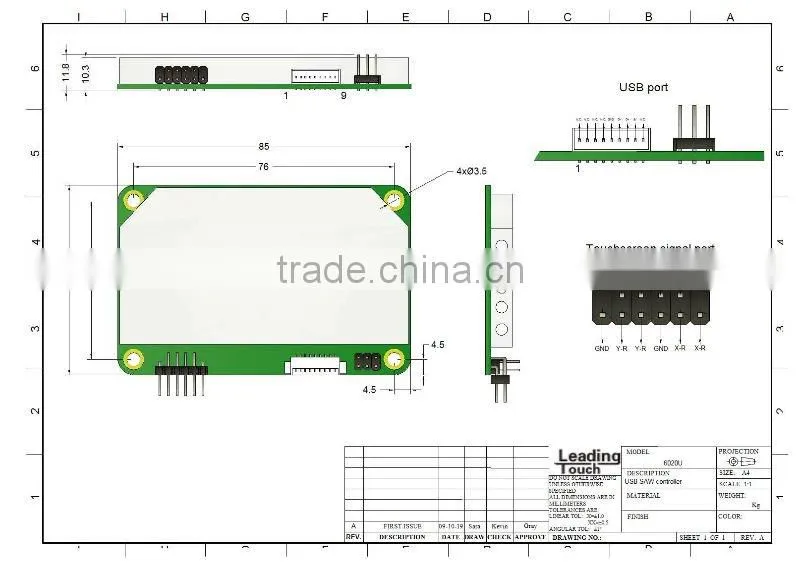

Dimensions |
Total width: 2.46 inches (62.5 mm), including connectors |
Total length: 3.30 inches (85 mm) | |
Total height: 0.47 inches (11.8 mm) | |
Supply Voltage |
+5 VDC, nominal (+4.75 to +5.25V DC), and Current 85mA typical, 105mA maximum at +5 VDC. |
Typical power dissipation is 425mW at 5V. Minimum power-supply 200 mA., Inrush current up to 600mA for 50mS. | |
USB Interface |
Interrupt-type, full-speed USB device. |
Operating Modes |
Leadingtouch protocol |
Customer specific protocol | |
Initial/ Stream/ Untouch Modes | |
Touch Resolution |
4096x4096, size independent |
Conversion Time |
Approximately 10 ms per coordinate set |
Reliability |
MTBF greater than 1,543,000 hours per MIL-HDBK-217-F2 |
Temperature |
Operating: 0°C to 65°C; Storage: -25°C to 85°C |
Humidity |
Operating: 10% to 90% RH, noncondensing; Storage: 10% to 90% RH, noncondensing |
Operating Altitude |
10,000 feet |
Shock and Vibration |
With Leadingtouch standard container, meet International Safe Transit Association project 2A test procedure. |
ESD: |
Per EN 6100-4-2 1995. Level 4, Contact Discharge - 8kV ; Air Discharge - 15kV positive and negative polarity |
Flammability |
94V0 |
LED Indicators |
The 6020E controller has one LED status indicators. When 6020E controller initially connects to host, the LED will be constantly on. When touchscreen connects to 6020E, the LED will snuff out after 3 seconds and be constantly on during touch. |
Agency Approvals |
The touch system including 6020E controller, touchscreen and connection cable has certified with FCC Part 15. The touch system including 6020E controller, touchscreen and connection cable is compatible with EN55022 and EN55024 standards and is certified with CE. |
