Help CenterIntel Atom D525 Industrial ITX Motherboard With LVDS
Related Products
-
Atom D525 Dual-core DC12V Power Supply POS Machines Single 18BIT LVDSNegotiableMOQ: 1 Piece -
Intel Atom D525 Motherboard X86 Mini Itx Atom Motherboard D525 6*COM ITX-M58_A56 VER:1.1ANegotiableMOQ: 1 Piece
-
Atom D525 Industrial Motherboard With SIM Slot/1*LANNegotiableMOQ: 1 Piece
-
Atom D525 DC12V POS Machines Motherboard Mini ITX M58_D52NegotiableMOQ: 1 Piece
-
Industrial Pos Mini Itx Motherboard Atom D525 1.8G Dual Core Four Threads POS Queue Htpc Motherboard M58_A52 DDR3 LVDS ATX PCINegotiableMOQ: 1 Piece

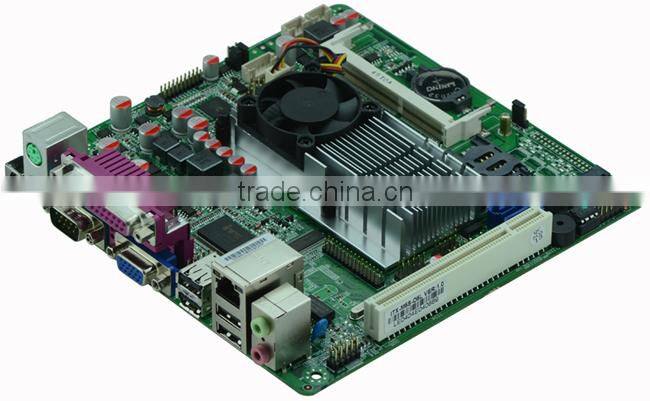

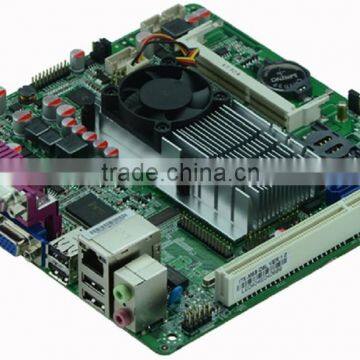

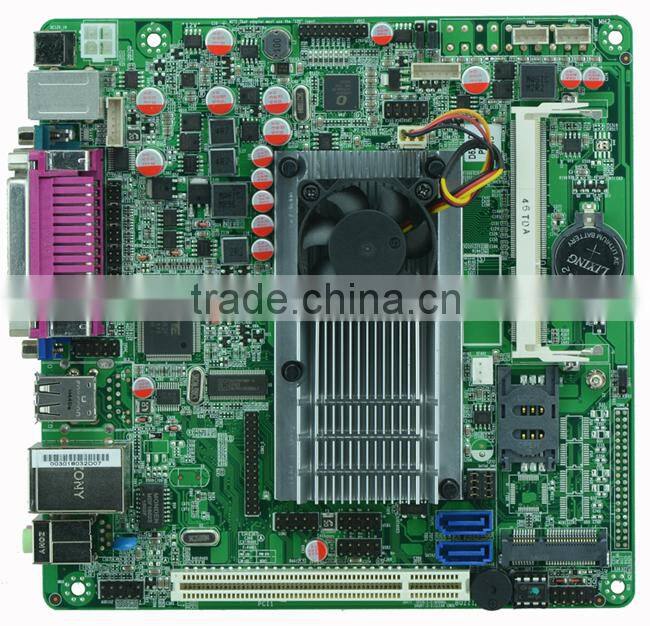

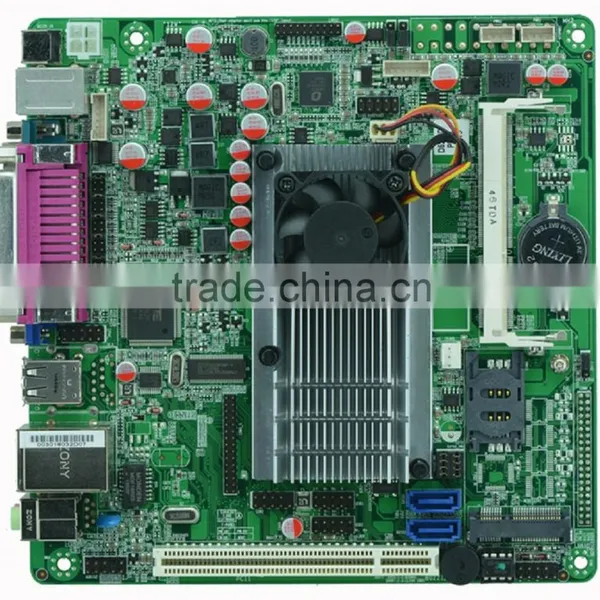

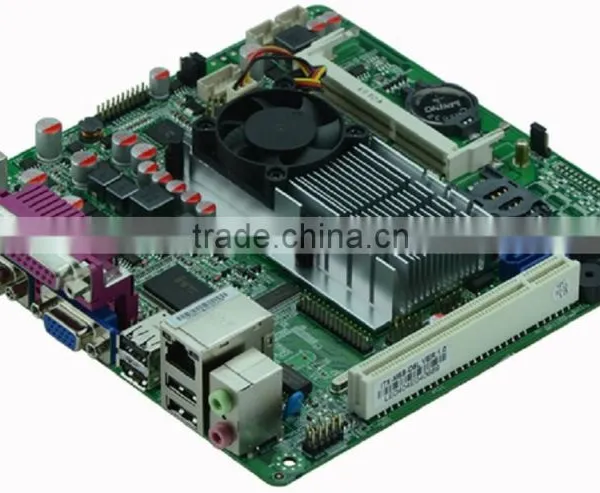

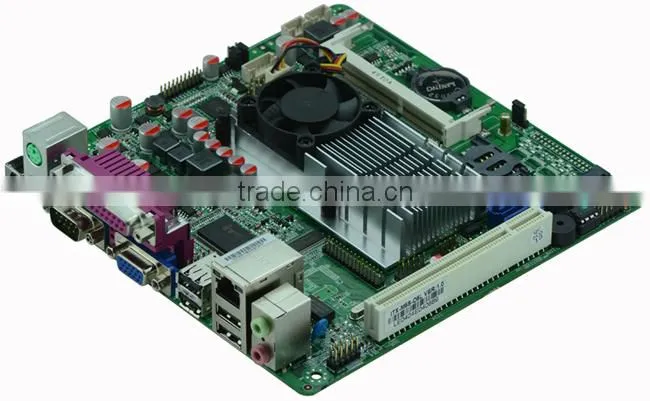

1. ITX-M5S_D5L VER: 1.0 front view
Integrated Intel® Atom D525 dual nuclear power plant thread 1.80G processor uses Intel NM10 Express chipset supports DDR3 notebook memory

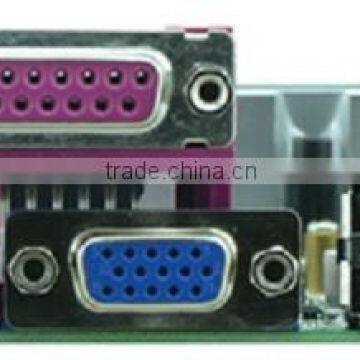

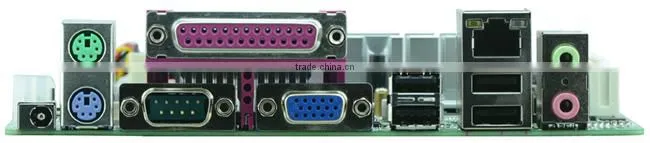

2. ITX-M5S_D5L VER: 1.0 IO front view
Intel®GMA3150 integrated graphics core and support VGA and eight 24BIT LVDS synchronous / asynchronous display

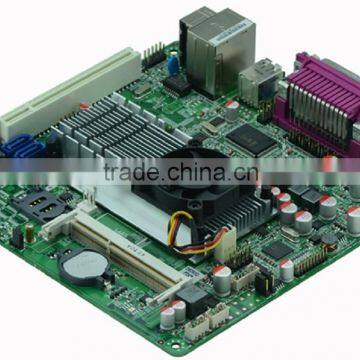

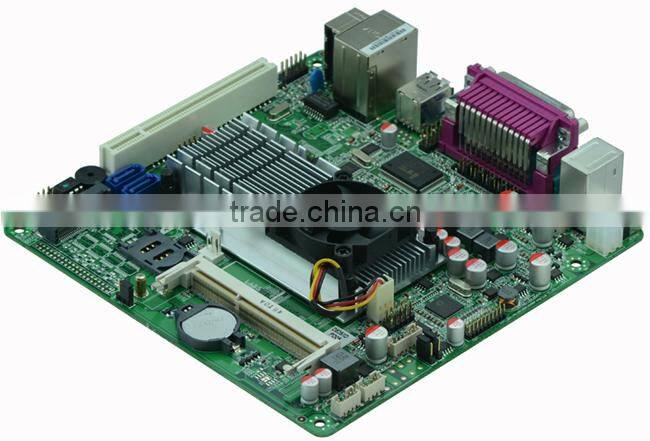

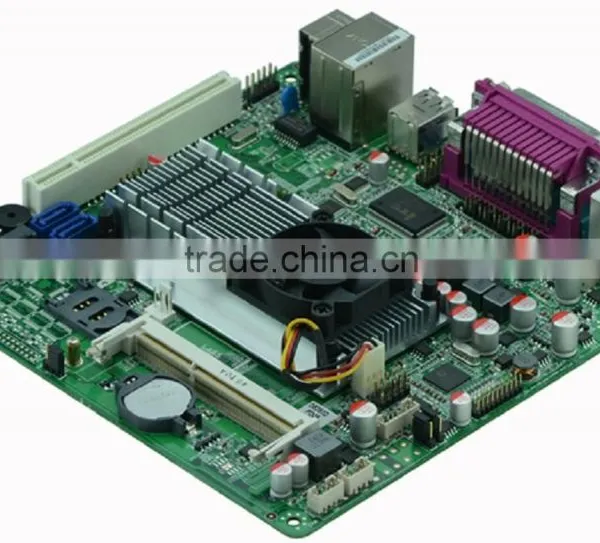

3. ITX-M5S_D5L VER: 1.0 side view
Integrated a RTL8105E Fast Ethernet chip supports Wake on LAN support WIFI / SSD Solid State Drive / 8 USB / 5 COM ports
Integrated six-channel Realtek ALC662 HD Audio controller supports MIC / Line-out board DC12V power supply
Model NO. |
ITX-M5S_D5L |
CPU |
Intel® Atom D525 Processor Dual core 1.80G |
Chipset |
Intel® NM70 Chipset |
Memory |
1* SO DIMM DDRIII 800/1066MHz, Max. up to 2GB |
Graphics |
Intel® GMA3150 Graphics |
Support 1*LVDS,2*VGA display output,Supports both synchronous and asynchronous | |
LVDS supports single 24bit | |
Expansion Slots |
1* PCI |
1* Mini-PCIE (support WIFI/3G/SSD, jumper control interface swapping) | |
LAN |
1* RTL8105E 10/100Mbps Ethernet, Support Wake-on-LAN and PXE function |
Storage |
2*SATAII (SATA2 SSD with a second election) |
Audio |
Integrated Realtek HD ALC662 for 6-Channel output |
Support MIC/Line-out/Line-in | |
|
Rear I/O
|
1* 12V DC_JACK input |
1* PS/2 | |
1* LPT | |
1* COM | |
1* VGA | |
1* RJ_45 LAN | |
4* USB 2.0 | |
1* AUDIO I/O (MIC and Line-out) | |
|
Internal I/O |
1* LVDS 2*10pin |
1* JVGA1 2*5pin | |
1* JVGA2 2*5pin | |
4* COM, the 9th pin supports +5V/+12V charged function | |
1* PS/2 | |
4* USB 2.0 | |
1* AUDIO pin (Front Audio interface 2*5pin) | |
1* FP1 (2*5pin Front panel buttons and LED connected) | |
1* ATX_12V (Can be used as input and output 12V power connector) | |
2* PWROUT (Hard drive power connector) | |
1* LVDS1 1*6pin | |
1* SIM | |
Fan interface |
1* CPUFAN and SYSFAN 3pin |
BIOS |
AMI 8MB DPI Flash ROM |
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
DC_12VSingle power supply |
Operating Temp. |
-10°C~60°C |
Storage Temp. |
-20°C~70°C |
Humidity |
0%-95%(relative humidity; non-condensing) |
Dimension |
170mm x 170mm |
