Help CenterAtom D525 Industrial Motherboard With SIM Slot/1*LAN
Related Products
-
Atom D525 DC12V POS Machines Motherboard Mini ITX M58_D52NegotiableMOQ: 1 Piece -
Industrial Pos Mini Itx Motherboard Atom D525 1.8G Dual Core Four Threads POS Queue Htpc Motherboard M58_A52 DDR3 LVDS ATX PCINegotiableMOQ: 1 Piece
-
Mini Itx Atom Motherboard D525 With 6*COM ITX-M58_D56LNegotiableMOQ: 1 Piece
-
M58-A42 Mini ITX Embedded Motherboards With Onboard Atom D425 CPU for POS TerminalNegotiableMOQ: 1 Piece
-
Atom D425 1.8Ghz Mini Itx Motherboard 12V DC POS M58_D42 DDR3 18bit LVDS 2RS232 Synchronous Asynchronous Display Wake on LAN PXENegotiableMOQ: 1 Piece

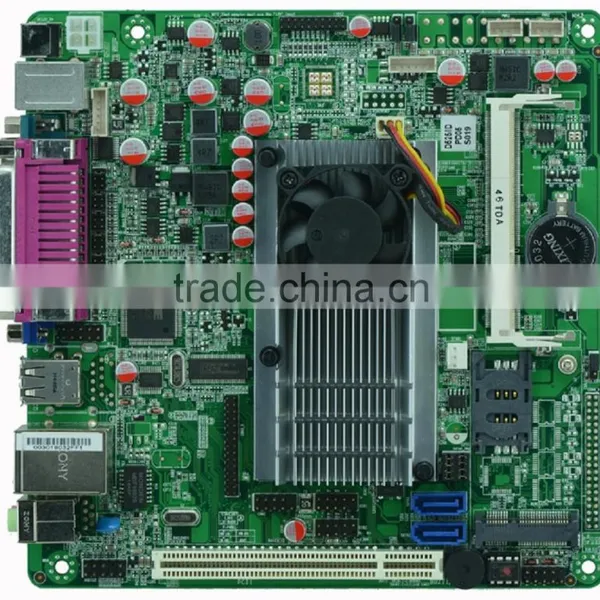

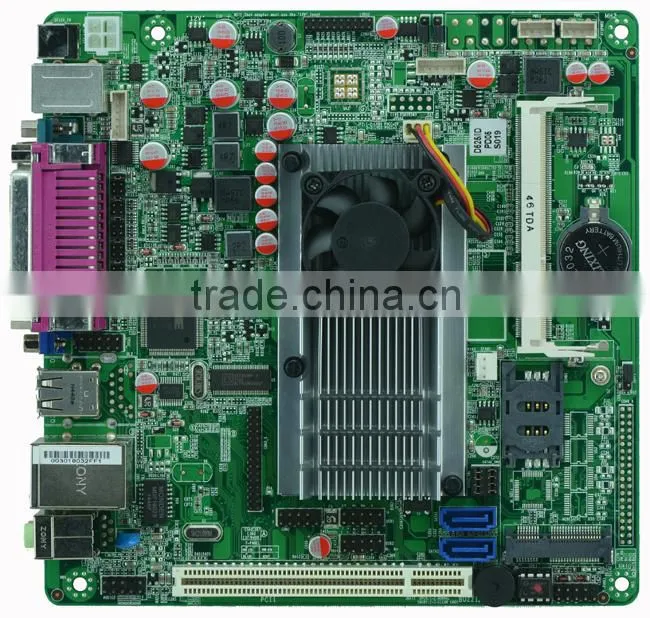

1. ITX-M5S_D5 VER: 1.0 front view
Integrated Intel® Atom D525 dual nuclear power plant thread 1.80G low-power processor with Intel NM10 Express chipset supports DDR3 generation notebook memory

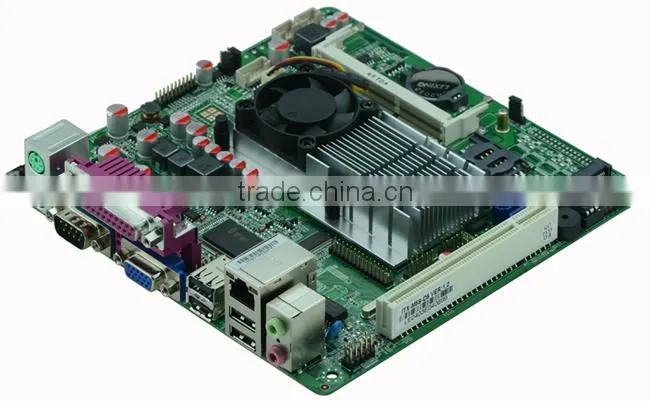

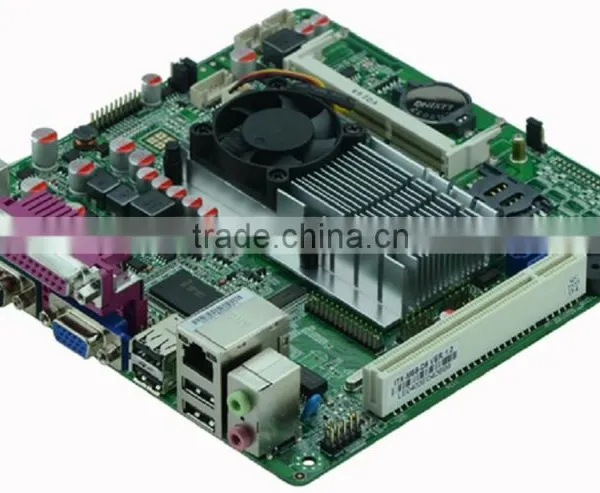

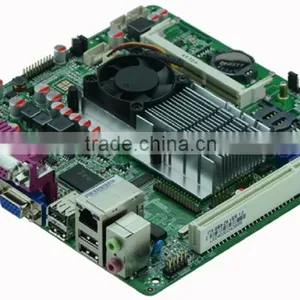

2. ITX-M5S_D5 VER: 1.0 IO front view
Intel®GMA3150 integrated graphics core supports VGA and single six 18BIT LVDS synchronous / asynchronous display

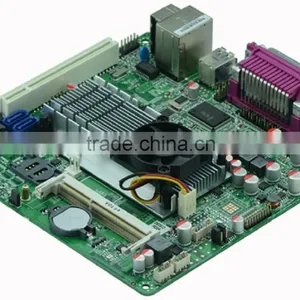

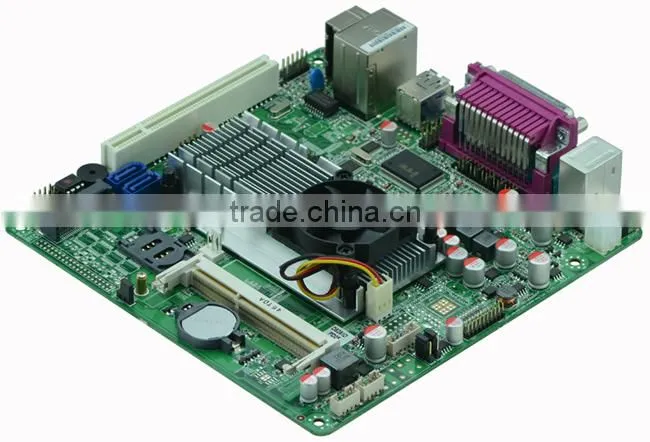

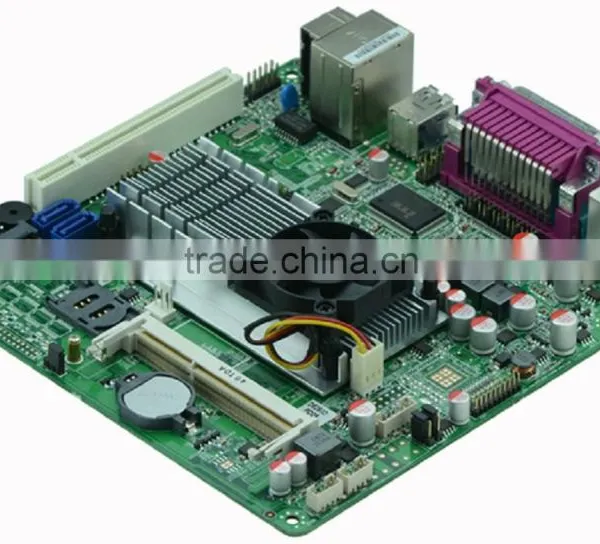

3. ITX-M5S_D5 VER: 1.0 side view
Integrated a RTL8105E Fast Ethernet chip supports Wake on LAN support WIFI / SSD Solid State Drive / 8 USB / 5 COM ports
Integrated six-channel Realtek ALC662 HD Audio controller supports MIC / Line-out board DC12V power supply
Model NO. |
ITX-M5S_D5 |
CPU |
Intel® Atom D525 Processor Dual core 1.80G |
Chipset |
Intel® NM70 Chipset |
Memory |
1* SO DIMM DDRIII 800/1066MHz, Max. up to 2GB |
Graphics |
Intel® GMA3150 Graphics |
|
support VGA/LVDS synchronous/asynchronous display LVDS supports single 18bit |
Expansion Slots |
1* PCI |
|
1* Mini-PCIE (support WIFI/3G/SSD, jumper control interface swapping) |
LAN |
1* RTL8105E 10/100Mbps Ethernet, Support Wake-on-LAN and PXE function |
Storage |
2*SATAII (SATA2 SSD with a second election) |
Audio |
Integrated Realtek HD ALC662 for 6-Channel output |
|
Support MIC/Line-out/Line-in |
Rear I/O |
1* 12V DC_JACK input |
|
1* PS/2 |
|
1* LPT |
|
1* COM |
|
1* VGA |
|
1* RJ_45 LAN |
|
4* USB 2.0 |
|
1* AUDIO I/O (MIC and Line-out) |
Internal I/O |
1* LVDS 2*10pin |
|
1* JVGA1 2*5pin |
|
4* COM, the 9th pin supports +5V/+12V charged function |
|
1* PS/2 |
|
4* USB 2.0 |
|
1* AUDIO pin (Front Audio interface 2*5pin) |
|
1* FP1 (2*5pin Front panel buttons and LED connected) |
|
1* ATX_12V (Can be used as input and output 12V power connector) |
|
2* PWROUT (Hard drive power connector) |
|
1* LVDS1 1*6pin |
|
1* SIM |
Fun interface |
1* CPUFAN and SYSFAN 3pin |
BIOS |
AMI 8MB DPI Flash ROM |
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
DC_12VSingle power supply |
Operating Temp. |
-10°C~60°C |
Storage Temp. |
-20°C~70°C |
Humidity |
0%-95%(relative humidity; non-condensing) |
Dimension |
170mm x 170mm |
