Help CenterAtom D525 Dual-core DC12V Power Supply POS Machines Single 18BIT LVDS
Related Products
-
Intel Atom D525 Motherboard X86 Mini Itx Atom Motherboard D525 6*COM ITX-M58_A56 VER:1.1ANegotiableMOQ: 1 Piece -
Atom D525 Industrial Motherboard With SIM Slot/1*LANNegotiableMOQ: 1 Piece
-
Atom D525 DC12V POS Machines Motherboard Mini ITX M58_D52NegotiableMOQ: 1 Piece
-
Industrial Pos Mini Itx Motherboard Atom D525 1.8G Dual Core Four Threads POS Queue Htpc Motherboard M58_A52 DDR3 LVDS ATX PCINegotiableMOQ: 1 Piece
-
Mini Itx Atom Motherboard D525 With 6*COM ITX-M58_D56LNegotiableMOQ: 1 Piece

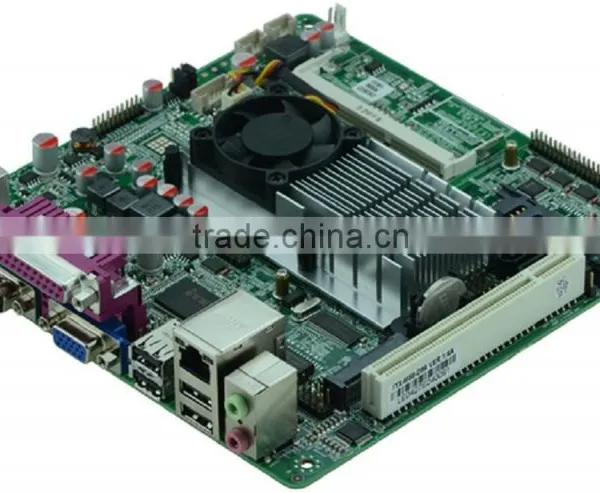

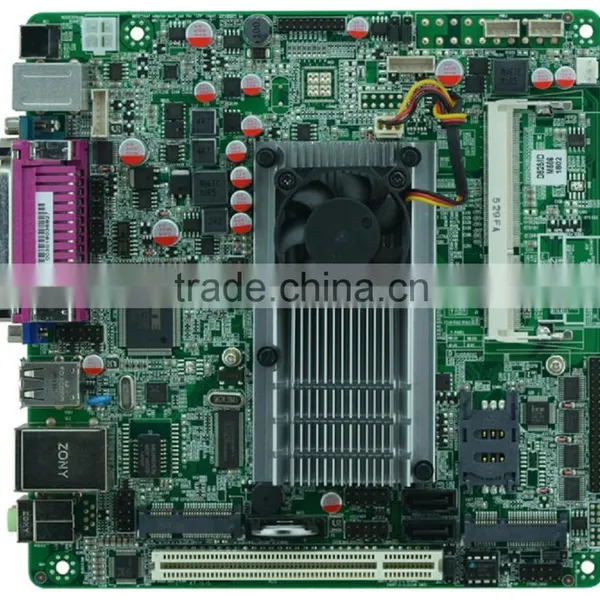

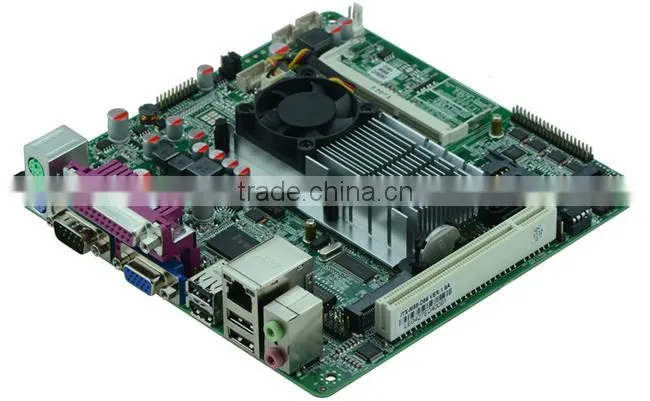

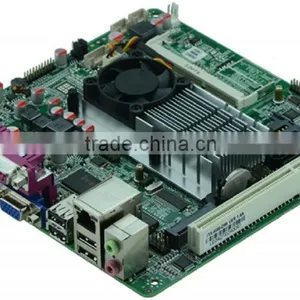

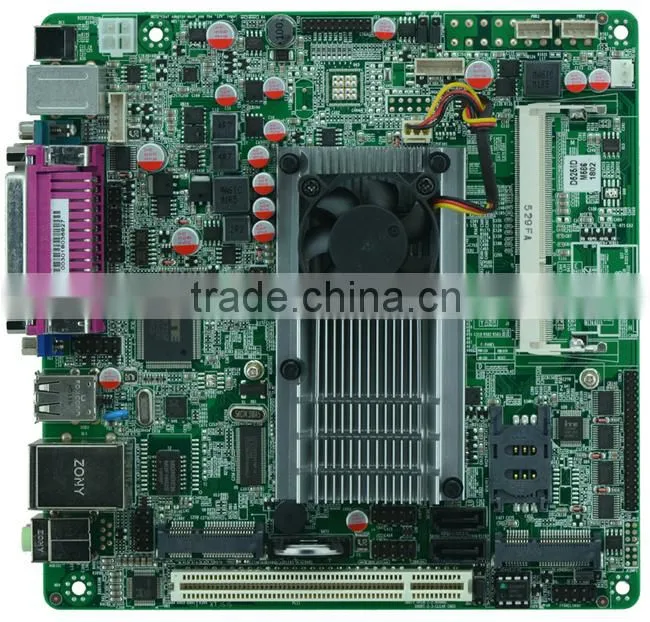

1. ITX-M58_D56 VER: 1.6A front view
Integrated Intel® Atom D525 dual nuclear power plant thread 1.8G low power processor with Intel® ICH8M Express chipset supports DDR3 generation notebook memory
2. ITX-M58_D56 VER: 1.6A IO front view
Intel®GMA3150 integrated graphics core supports VGA and single 18BIT LVDS synchronous / asynchronous display

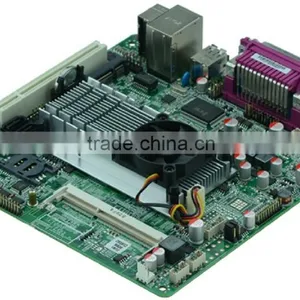

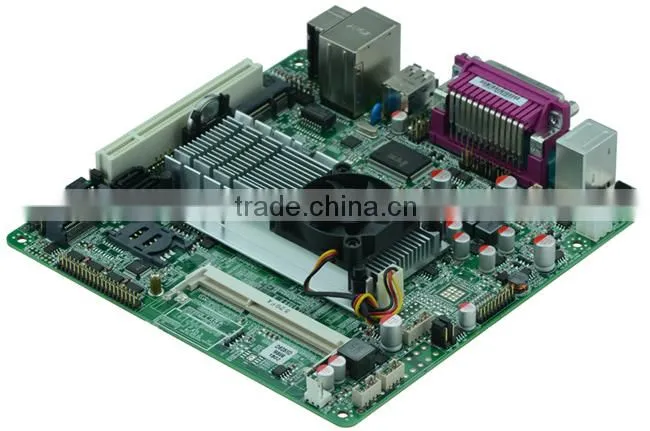

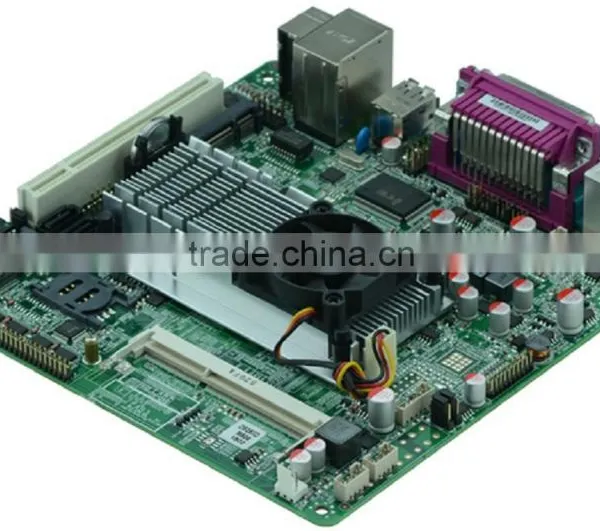

3. ITX-M58_D56 VER: 1.6 side view
Integrated a RTL8105E Fast Ethernet chip supports Wake on LAN support WIFI / 3G module / SSD Solid State Drive / 8 USB / 6 COM ports
Integrated six-channel Realtek ALC662 HD Audio controller supports MIC / Line-out board DC12V power supply
Product number
ITX-M58_D56 VER: 1.6A
CPU
Integrated Intel® Atom D525 Dual Core 1.80G processor
Chipset
Using Intel® ICH8M Express Chipset
RAM
1 * SO DDRIII memory slots, supports 800 1066 memory, up to 2GB
Display Function
Integrated graphics core Intel® GMA3150
It supports VGA, LVDS (single-channel 18bit) display output
Support LVDS / VGA synchronous / asynchronous
Expansion slots
1 * Mini-PCIE slot, support WIFI / 3G module
1 * PCI slots
Network features
1 * RTL8105E Fast Ethernet, supports Wake on LAN, PXE function
Memory function
2 * SATAII hard disk interface, transfer rate up to 3Gbps
1 * MSATA slot supports SSD drives, transmission speeds of up to 3Gbps
Audio features
Onboard ALC662 6-channel HD Audio controller that supports MIC, Line-out
Backplane I / O Interface
1 * 12V DC_JACK input
1 * PS / 2 keyboard and mouse interface
1 * LPT printer port
1 * COM interfaces, the first 9PIN support 5V / 12V charging function
1 * VGA Interface
4 * USB 2.0 Interface
1 * RJ_45 Network Interface
1 * Audio I / O interfaces (microphone and line output)
Built-in I / O Interface
1 * JVGA1 interface with DB15 same signal 2 * 5pin
1 * JVGA2 Interface 2 * 5pin
1 * LVDS 2 * 10pin, supports single 24bit LVDS Interface
5 * COM ports, COM2 support RS422 / 485 mode
1 * TX-RXCOM RS422,485 Interface
1 * AUDIO front audio interface 2 * 5pin
4 * USB 2.0 Interface
1 * FP1 front panel function buttons and LEDs Interface 2 * 5pin
1 * PS / 2 keyboard and mouse interface
1 * LVDS Power Interface 1 * 6pin
2 * PWROUT hard drive power connector
1 * ATX_12V (do + 12V input and output power interface)
1 * SIM card connector
Fan Interface
1 * CPUFAN and SYSFAN 3pin
BIOS
AMI 8MB DPI Flash ROM
Watchdog
Support for hardware reset function (256, 0 to 255 seconds)
Power supply type
DC_12V single supply
Operating temperature
-10 ℃ ~ 60 ℃
Storage temperature
-20 ℃ ~ 70 ℃
Working humidity
5-95% relative humidity, non-condensing
Size
170mm x 170mm
Send Inquiry to This Supplier
