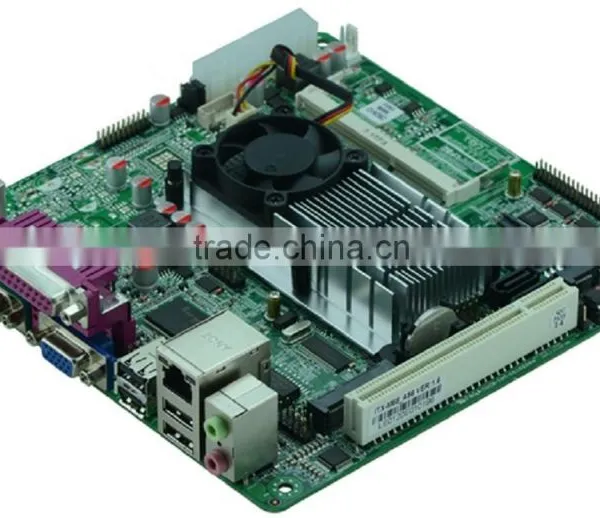

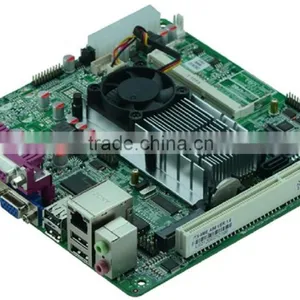

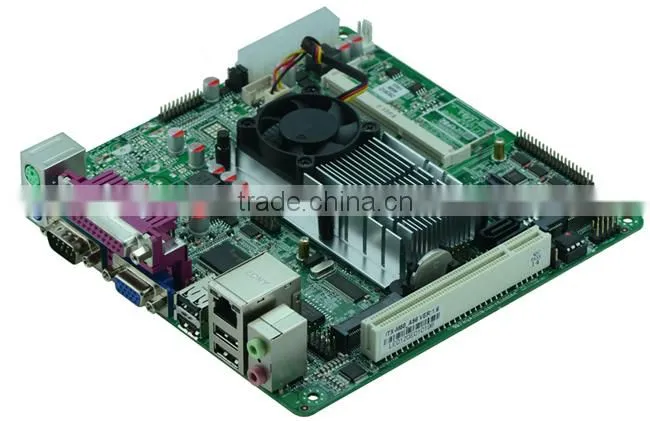

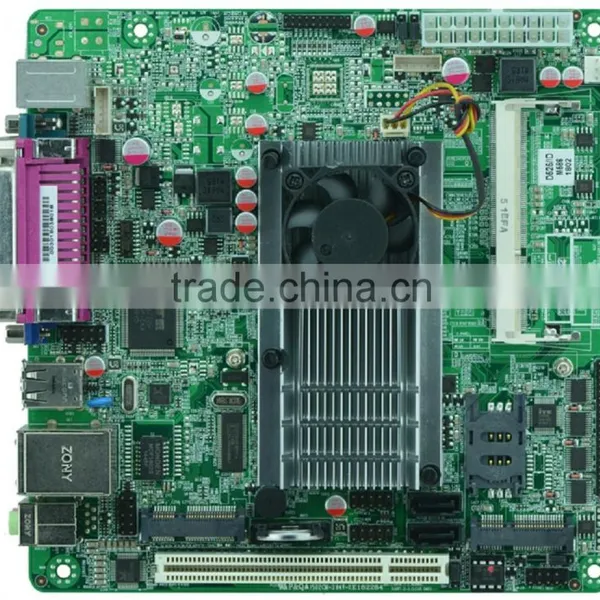

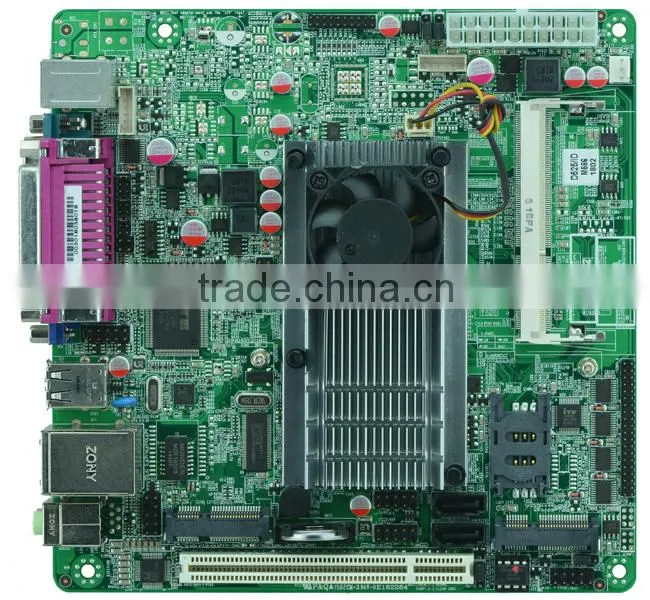

I1. TX-M58_A56 VER: 1.6 front view
Integrated Intel® Atom D525 dual nuclear power plant thread 1.8G low power processor with Intel® ICH8M Express chipset supports DDR3 generation notebook memory

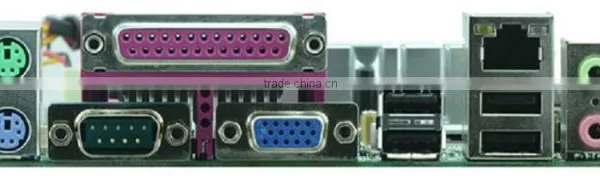

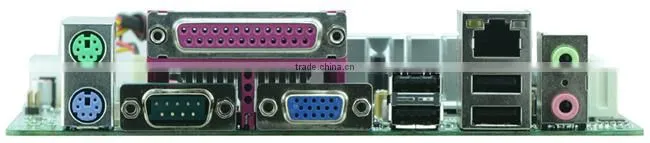

2. ITX-M58_A56 VER: 1.6 IO front view
Intel®GMA3150 integrated graphics core supports VGA / single 18BIT LVDS synchronous / asynchronous display

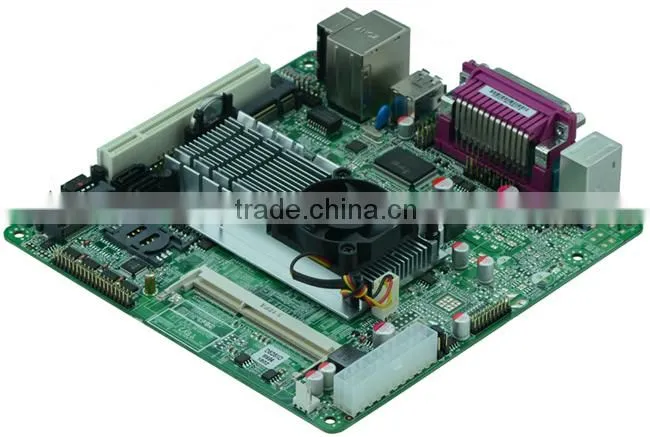

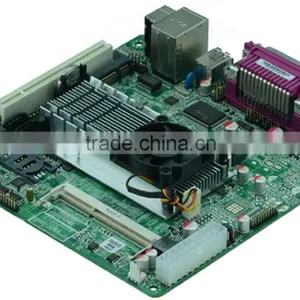

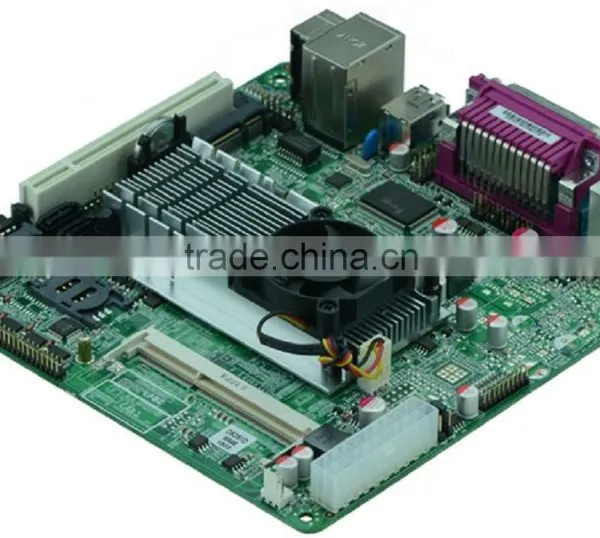

3. ITX-M58_A56 VER: 1.6 side view
Integrated a RTL8105E Fast Ethernet chip supports Wake on LAN support WIFI / 3G module / SSD Solid State Drive / 8 USB / 6 COM ports
Integrated six-channel Realtek ALC662 HD Audio controller supports MIC / Line-out motherboard ATX power supply
Model NO. |
ITX-M58_A56 VER :1.1A |
CPU |
Intel® Atom D525 Processor Dual core 1.80G |
Chipset |
Intel® ICH8M Chipset |
Memory |
1* SO DIMM DDRIII 800/1066MHz, Max. up to 2GB |
Graphics |
Intel® GMA3150 Graphics |
support VGA/LVDS synchronous/asynchronous display | |
Expansion Slots |
1* Mini-PCIE (Support WIFI/3G) |
1* PCI | |
LAN |
1* RTL8105E 10/100Mbps Ethernet |
Storage |
2* SATAII 3Gbps |
1* MSATA (support SSD 3Gbps/USB WIFI) | |
Audio |
Integrated Realtek HD ALC662 for 6-Channel output |
|
Rear I/O |
1* PS/2 |
1* LPT | |
1* COM, the 9th pin supports +5V/+12V charged function | |
1* VGA | |
4* USB 2.0 | |
1* RJ_45 LAN | |
1* AUDIO I/O (MIC and Line-out) | |
|
Internal I/O
|
1* JVGA1(2*5pin) |
1* JVGA2(2*5pin) | |
1* LVDS 2*10pin,support single 18bit LVDS interface | |
5* COM | |
1* AUDIO pin (Front Audio interface 2*5pin) | |
4* USB 2.0 | |
1* FP1 (2*5pin Front panel buttons and LED connected) | |
1* PS/2 | |
1* LVDS 1*6pin | |
1* SIM | |
Fan interface |
1* CPU FAN and SYS FAN(3pin) |
BIOS |
AMI 8MB DPI Flash ROM |
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
ATX Power Supply |
Operating Temp. |
-10°C~60°C |
Storage Temp. |
-20°C~70°C |
Humidity |
0%-95%(relative humidity; non-condensing) |
Dimension |
170mm x 170mm |
