Help CenterAtom D525 DC12V POS Machines Motherboard Mini ITX M58_D52
Related Products
-
Industrial Pos Mini Itx Motherboard Atom D525 1.8G Dual Core Four Threads POS Queue Htpc Motherboard M58_A52 DDR3 LVDS ATX PCINegotiableMOQ: 1 Piece -
Mini Itx Atom Motherboard D525 With 6*COM ITX-M58_D56LNegotiableMOQ: 1 Piece
-
M58-A42 Mini ITX Embedded Motherboards With Onboard Atom D425 CPU for POS TerminalNegotiableMOQ: 1 Piece
-
Atom D425 1.8Ghz Mini Itx Motherboard 12V DC POS M58_D42 DDR3 18bit LVDS 2RS232 Synchronous Asynchronous Display Wake on LAN PXENegotiableMOQ: 1 Piece
-
A68I-350 DELUXE AMD E350 the APU MINI ITXUS$ 1 - 2MOQ: 1 Piece

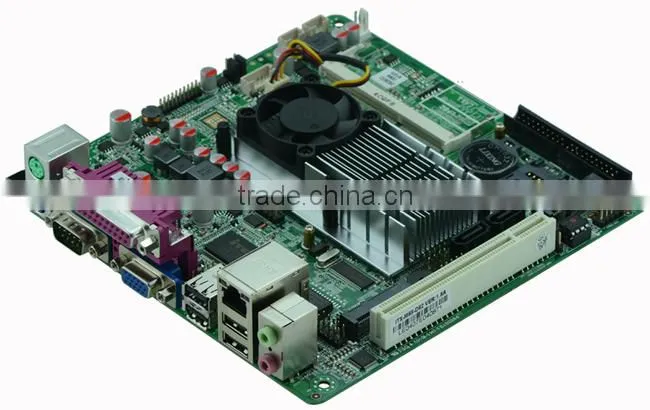

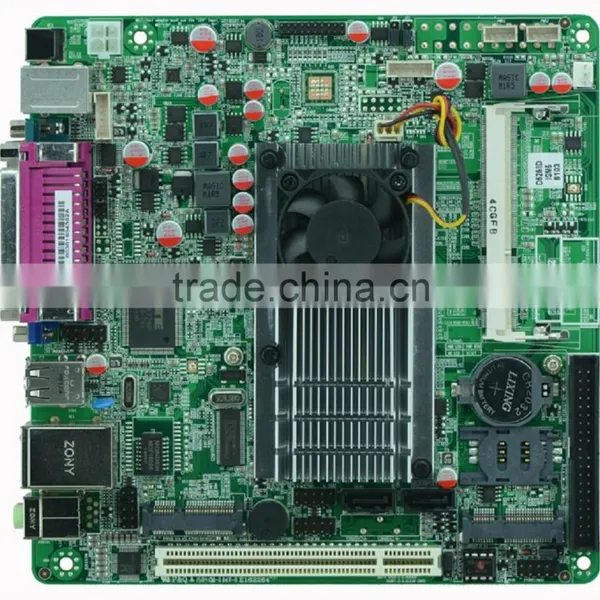

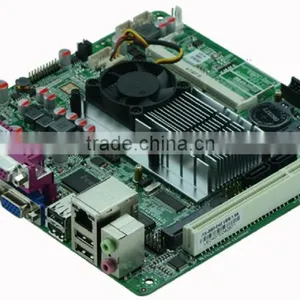

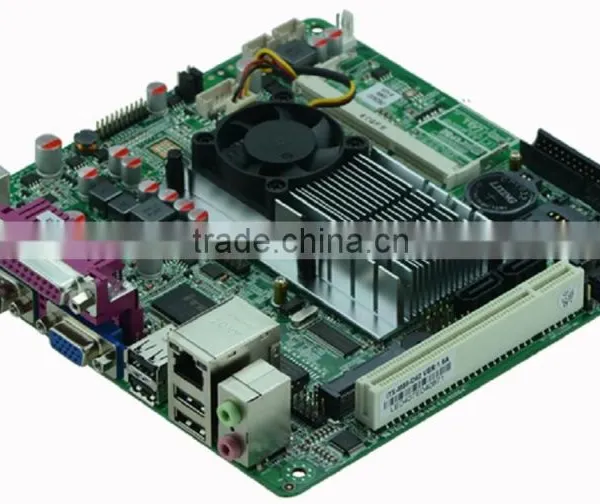

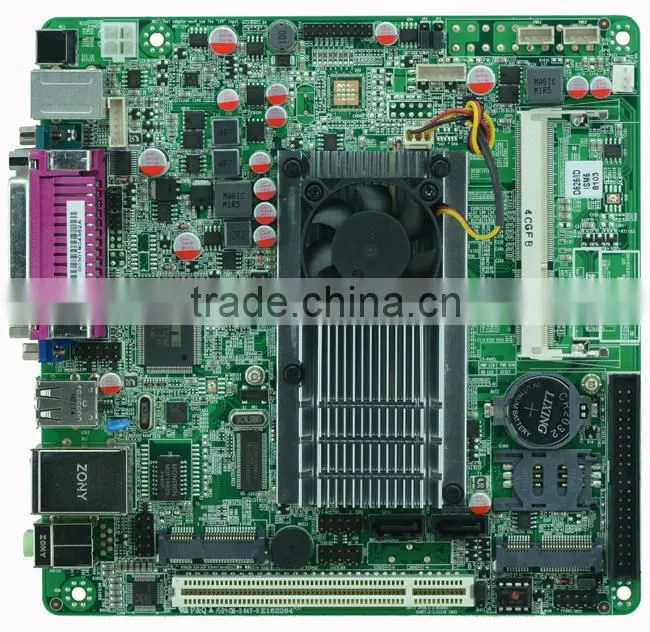

1. ITX-M58_D52 VER: 1.5A front view
Integrated Intel® Atom D525 dual nuclear power plant thread 1.8G low power processor with Intel® ICH8M Express chipset supports DDR3 notebook memory
2. ITX-M58_D52 VER: 1.5A IO front view
Intel®GMA3150 integrated graphics core supports VGA and single six 18BIT LVDS with significant / iso significant
3. ITX-M58_D52 VER: 1.5A side view
Integrated a RTL8105E Fast Ethernet chip supports Wake on LAN support WIFI / 3G module / SSD Solid State Drive / 8 USB / 2 COM ports
Integrated six-channel Realtek ALC662 HD Audio controller supports MIC, Line-out board DC12V power supply
Model NO. |
ITX-M58_D52 |
CPU |
Intel® Atom D525 Processor Dual core 1.80G |
Chipset |
Intel® ICH8M Chipset |
Memory |
1* SO DIMM DDRIII 800/1066MHz, Max. up to 2GB |
Graphics |
Intel® GMA3150 Graphics |
Support VGA/LVDS synchronous/asynchronous display | |
LVDS supports single 18bit | |
Expansion Slots |
1* Mini-PCIE (Support WIFI/3G) |
1* PCI | |
LAN |
1* RTL8105E 10/100Mbps Ethernet |
Support Wake-on-LAN and PXE function | |
Storage |
2* SATAII 3Gbps |
1* MSATA (support SSD 3Gbps/USB WIFI) | |
Audio |
Integrated Realtek HD ALC662 for 6-Channel output |
Support MIC/Line-out/Line-in | |
|
Rear I/O
|
1* 12V DC_JACK input |
1* PS/2 | |
1* LPT | |
1* COM, the 9th pin supports +5V/+12V charged function | |
1* VGA | |
4* USB 2.0 | |
1* RJ_45 LAN | |
1* AUDIO I/O (MIC and Line-out) | |
|
Internal I/O
|
1* JVGA1 2*5pin |
1* LVDS 2*10pin | |
1* COM, the 9th pin supports +5V/+12V charged function | |
1* AUDIO pin (Front Audio interface 2*5pin) | |
4* USB 2.0 | |
1* FP1 (2*5pin Front panel buttons and LED connected) | |
1* PS/2 | |
1* LVDS 1*6pin | |
2* PWROUT (Hard drive power connector) | |
1* ATX_12V (Can be used as input and output 12V power connector) | |
1* SIM | |
Fan interface |
1* CPUFAN and SYSFAN 3pin |
BIOS |
AMI 8MB DPI Flash ROM |
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
DC_12V Single power supply |
Operating Temp. |
-10°C~60°C |
Storage Temp. |
-20°C~70°C |
Humidity |
0%-95%(relative humidity; non-condensing) |
Dimension |
170mm x 170mm |
