Mobile Cone Crusher, Mobile Crusher Price
- 100 Set / Sets per Month
- Tianjin Shanghai Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Other, Mobile Crusher | Application: | Mining, Building, Metallurgy and so on |
Motor Type: | AC Motor | Power(W): | 150kw | Capacity(t/h): | 40-850TPH, 90-180 |
Place of Origin: | Henan, China | Brand Name: | Zhongde | Model Number: | HX1149F1214 |
Dimension(L*W*H): | as per model | Weight: | Based on the model | Certification: | BV,CE,TUV |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

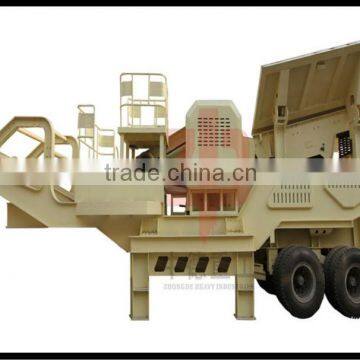

Mobile Crusher Station
1.Optimized design of ship form frame structure, the low vehicle chassis, compact and reasonable structure, modular assembly structure, small turning radius and convenient transportation.
2.Folding type feeding bin, hydraulic support guard board, easy and reliable operation.
3.The control cabinet equips with the advanced words touch control screen, PLC control system, ensuring the functions of starting, process adjustment, disoperation tip and protection, electrical control operation, fault and safety tip.
4.The feeder can presort fines, automatic design for silo door, controlling the direction of dividing material.
5.The angle of conveyor is adjustable, and the conveyor can be turned and folded, extending operation conditions, easy for transportation.
6.Adopt stream-line design for vehicle structure, compact and reasonable mechanics optimization structure.
7.Landing leg can hydraulically rise and fall, easy and flexible for operation.
Technical Parameters
Model | HX938F1210 | HX938FW1214 II | HX1149F1214 | HX1149F1315 | HX1149FW1315 II | HX1349FW1318 II |
Transportation Length(mm) | 12000 | 12000 | 13500 | 13500 | 13500 | 14600 |
Transportation Width(mm) | 2550 | 2550 | 2800 | 2900 | 2800 | 2800 |
Transportation Height(mm) | 3900 | 3900 | 4450 | 4450 | 4350 | 4500 |
Maximum Lengt(mm) | 12500 | 12500 | 13500 | 13500 | 14600 | 14600 |
Maximum Width(mm) | 2900 | 2950 | 2950 | 2950 | 2950 | 3250 |
Maximum Height(mm) | 4100 | 4100 | 5200 | 5200 | 5200 | 5200 |
Tire Configuration | Dualaxial | Duaxial | Triaxial | Triaxial | Triaxial | Triaxial |
Jaw Crusher | PF-1210 | PFW-1214 II | PF-1214 | PFW-1315 II | PFC1315S | PFW1318 II |
The Maximum Feeding Size(mm) | 300 | 500 | 300 | 350 | 600 | 700 |
Capacity(t/h) | 70-130 | 130-200 | 90-180 | 120-250 | 180-320 | 240-400 |
Vibrating Feeder | ZSW950Χ3800 | ZSW950Χ3800 | ZSW110Χ4900 | ZSW110Χ4900 | ZSW110Χ4900 | ZSW130Χ4900 |
Main Belt Conveyor | B800Χ8.5M | B800Χ8.5M | B1000Χ9M | B1000Χ9M | B1000Χ9M | B1200Χ9.5M |
Side-opening Belt Conveyor(Optional) | B450Χ3.2M | B450Χ3.2M | B500Χ3.5M | B500Χ3.5M | B500Χ3.5M | B650Χ4M |
Genset (Optional)(KW) | 200 | 250 | 250 | 330 | 330 | 380 |
Iron Seperator (Optional) | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 | RCYD(C)-12 |
Pictures for Reference
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past 50 years, Zhongde has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which had brought a rapid development to the company. In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park, Luoyang city, the middle of China.
We are a professional manufacturer of mining equipments, such as crusher, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine, thickener, etc. Our machines are widely used in the fields of mine, smelting, chemicals, building materials, coal, refractory materials, ceramics, etc. Moreover, technological designs on program, process flow, standard& non-standard parts are also provided from the beginning to the end for clients.
The total area of the three standard heavy-duty industrial workshops covers 70000 square meters. More than 500 sets advanced processing equipments, including 300 sets of high-precision digital control machine tools, large-sized processing equipment and special processing, riveting& installing machines, are introduced to guarantee for product quality and company development.
In 2010, we have accessed the ISO9001:2008 certification, and in 2012 we have acquired the BVQI certificate. To establish the business with credit and honesty is our management belief all the time.
We provide you with the prophase plan, process flow design and manufacturer equipment
according to your special demand.
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.To establish long term friendship, we will regularly pay return visit to customers.In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory
level of spare parts, which means the replacements can be shipped to you right away.
1. Which kind of material you are going to crush,soft stone(dolomite,limestone) or hard stone?
2. What's the max input size of the material?
3. What's the production capacity you want?
