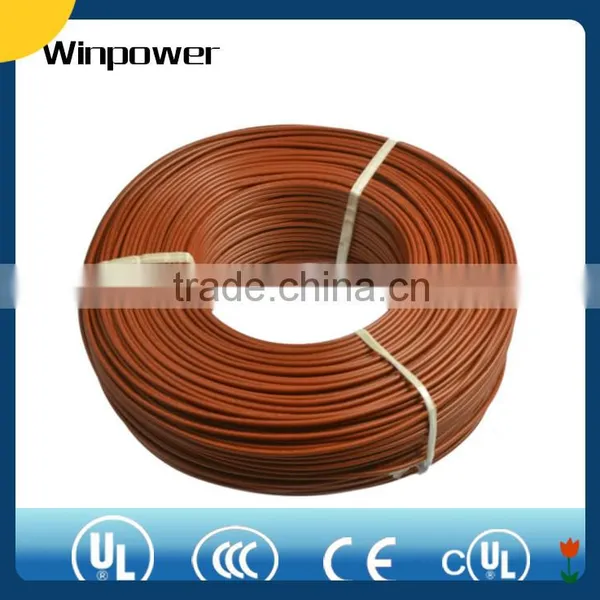

Help CenterUL1061 30 Guage Copper Thin Solid Wire
Related Products
-
UL 1061 Pvc Insulated 30 AWG Tin Plated Copper WireUS$ 0.001 - 99MOQ: 6 Kilometers -
UL1061 28AWG 1/0.32mm Pvc Insulation Pure Copper WireUS$ 0.001 - 99MOQ: 6 Kilometers
-
UL1061 Pvc Insulated Bare Copper Conductor 16 Guage Solid WireUS$ 0.001 - 99MOQ: 6 Kilometers
-
UL1061 16AWG 26/0.254mm Pvc Coated Thin Copper WireUS$ 0.001 - 99MOQ: 6 Kilometers
-
UL1061 PVC Copper 30 Guage WireUS$ 0.001 - 99MOQ: 6 Kilometers
Specifications
UL1061 30 guage copper thin solid wireRated temperature: 105 Degree Centigrade
Rated voltage: 300V
- Rated temperature: 105 degree centigrade
- Rated voltage: 300V
- Reference Standard: UL758, UL1581,CSAC22.2NO.210.2
- Conductor: Solid bare copper conductor 40~4/0AWG
- Insulation: PVC insulation, comply with ROHS environmental standard
- Flame Retardant Test: UL VW-1, CSA FT1 flame Test
- Uniform thickness to ensure stripping and cutting easily
- For general purpose internal wiring of appliance
-
E330446 AWM STYLE 1061 AWG NO. 105°C 300V VW-1 --- AWM I A 105°C 300V FT1 RoHS COMPLIANT DANYANG WINPOWER
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,1min) |
|||
AWG |
CONSTRUCTION (No./mm) |
DIA. (mm) |
THICKNESS (mm) |
O.D. (mm) |
||
30 |
1/0.254 7/0.10 |
0.25 0.30 |
0.25 0.25 |
0.75 0.80 |
361 381 |
2,000 |
28 |
1/0.32 7/0.127 |
0.32 0.38 |
0.27 0.26 |
0.85 0.90 |
227 239 |
2,000 |
26 |
1/0.404 7/0.16 |
0.40 0.48 |
0.25 0.26 |
0.90 1.00 |
143 150 |
2,000 |
24 |
1/0.511 7/0.20 |
0.51 0.60 |
0.25 0.25 |
1.00 1.10 |
89.3 94.2 |
2,000 |
22 |
1/0.643 7/0.254 |
0.64 0.76 |
0.25 0.27 |
1.15 1.30 |
56.4 59.4 |
2,000 |
20 |
1/0.813 7/0.32 |
0.81 0.96 |
0.27 0.27 |
1.35 1.50 |
35.2 36.7 |
2,000 |
18 |
1/1.024 16/0.254 |
1.02 1.17 |
0.27 0.31 |
1.55 1.80 |
22.2 23.2 |
2,000 |
16 |
1/1.29 26/0.254 |
1.29 1.49 |
0.25 0.31 |
1.80 2.10 |
14.0 14.6 |
2,000 |
Packing:1. 2000ft per coil ,with PE film as outer package
2. 2 coils or 4 coils are to be packed in one carton.
Delivery: 3-15 days after receiving the down payment
Terms of payment:
1. T/T (30% down payment and pay off after receiving the duplicate of B/L)
2. L/C at sight
1. Sample Available
2. OEM are offered
3. Customer wire are available
4 Convenient transportation path to DANYANG
1) Take flight to Shanghai,and aboard Harmony train from Shanghai Station to Danyang Station about one hour
2) Take flight to Changzhou, and aboard Harmony train from Changzhou Station to Danyang station about 20 minutes.
