Specifications
UL1061 PVC copper 30 guage wireRated temperature: 80 Degree Centigrade
Rated voltage: 300V

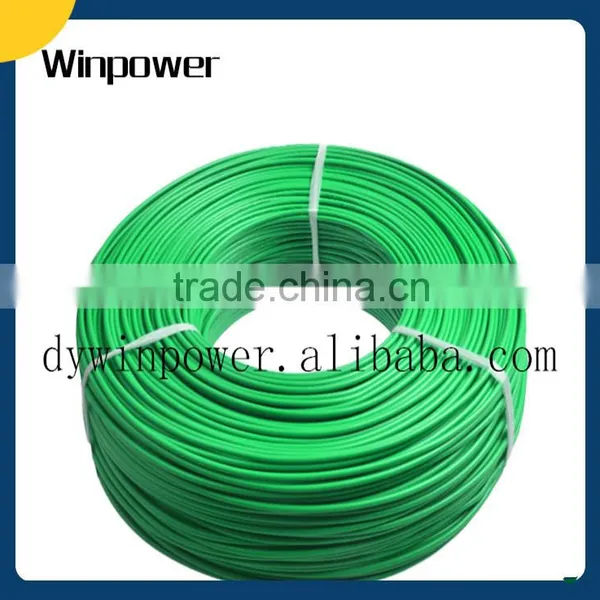

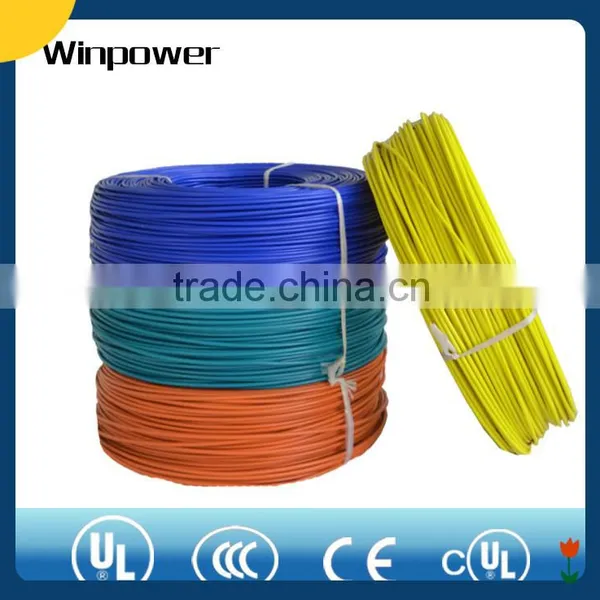

UL1061 PVC copper 30 guage wire
- Rated temperature: 80 degree centigrade
- Rated voltage: 300V
- Reference Standard: UL758, UL1581,CSAC22.2NO.210.2
- Conductor: stranded tinned or bare copper conductor
- PVC insulation, comply with ROHS environmental standard
- Flame Retardant Test: UL VW-1, CSA FT1 flame Test
E330446 AWM STYLE 1061 AWG NO. 80°C 300V VW-1 ,--- AWM 1 A 80 °C 300V FT1 ROHS COMPLIANT DANYANG WINPOWER
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,1min) |
|||
AWG |
CONSTRUCTION (No./mm) |
DIA. (mm) |
THICKNESS (mm) |
O.D. (mm) |
||
30 |
1/0.254 7/0.10 |
0.25 0.30 |
0.25 0.25 |
0.75 0.80 |
361 381 |
2,000 |
28 |
1/0.32 7/0.127 |
0.32 0.38 |
0.27 0.26 |
0.85 0.90 |
227 239 |
2,000 |
26 |
1/0.404 7/0.16 |
0.40 0.48 |
0.25 0.26 |
0.90 1.00 |
143 150 |
2,000 |
24 |
1/0.511 7/0.20 |
0.51 0.60 |
0.25 0.25 |
1.00 1.10 |
89.3 94.2 |
2,000 |
22 |
1/0.643 7/0.254 |
0.64 0.76 |
0.25 0.27 |
1.15 1.30 |
56.4 59.4 |
2,000 |
20 |
1/0.813 7/0.32 |
0.81 0.96 |
0.27 0.27 |
1.35 1.50 |
35.2 36.7 |
2,000 |
18 |
1/1.024 16/0.254 |
1.02 1.17 |
0.27 0.31 |
1.55 1.80 |
22.2 23.2 |
2,000 |
16 |
1/1.29 26/0.254 |
1.29 1.49 |
0.25 0.31 |
1.80 2.10 |
14.0 14.6 |
2,000 |
Packing:1.305m/coil or 610m/coil ,with PE film as outer package
2. 2 coils or 4 coils to be packed in one carton.
Delivery: 3-15 days after receiving the down payment
Terms of payment:
1. T/T (30% down payment and pay off after receiving the duplicate of B/L)
2. L/C at sight
1. Sample Available
2. OEM are offered
3. Buyers' label can be made
4 Convenient transportation path to DANYANG
1) Take flight to Shanghai,and aboard Harmony train from Shanghai Station to Danyang Station about one hour
akes flight to Chang zhou, and aboard Harmony train from Changzhou Station to Danyang station about 20 minutes.
