Help CenterUL 1061 Pvc Insulated 30 AWG Tin Plated Copper Wire
Related Products
-
UL1061 28AWG 1/0.32mm Pvc Insulation Pure Copper WireUS$ 0.001 - 99MOQ: 6 Kilometers -
UL1061 Pvc Insulated Bare Copper Conductor 16 Guage Solid WireUS$ 0.001 - 99MOQ: 6 Kilometers
-
UL1061 16AWG 26/0.254mm Pvc Coated Thin Copper WireUS$ 0.001 - 99MOQ: 6 Kilometers
-
UL1061 PVC Copper 30 Guage WireUS$ 0.001 - 99MOQ: 6 Kilometers
-
UL1061 SR-PVC 28 Guage Stranded Copper WireUS$ 0.001 - 99MOQ: 6 Kilometers

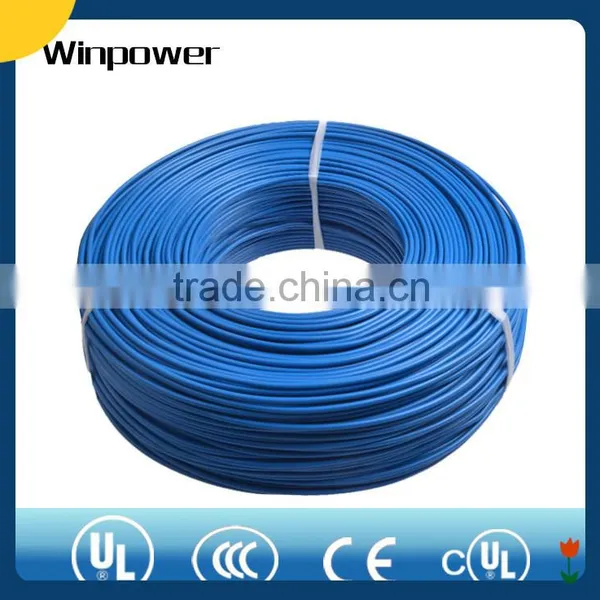

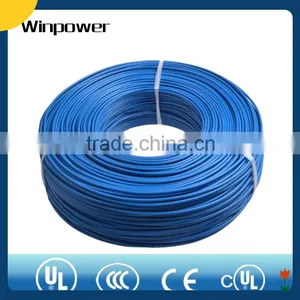

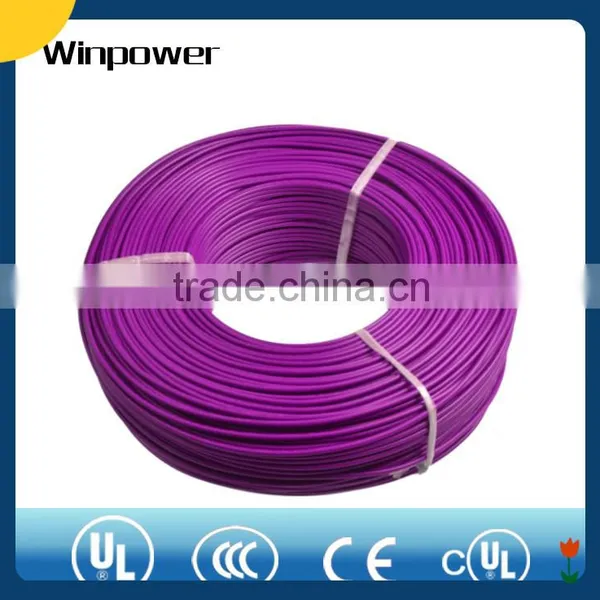

UL 1061 30awg PVC stranded copper electrical wires factories
- Rated temperature: 80 degree centigrade
- Rated voltage: 300V
- Reference Standard: UL758, UL1581,CSAC22.2NO.210.2
- Conductor: stranded tinned copper
- Insulation: PVC insulation, comply with ROHS environmental standard
- Flame Retardant Test: UL VW-1, CSA FT1 flame Test
- Uniform thickness to ensure stripping and cutting easily
- Generally it's applied into internal wiring of appliance
E330446 AWM STYLE 1061 AWG NO. 105°C 300V VW-1 --- AWM I A 105°C 300V FT1 RoHS COMPLIANT DANYANG WINPOWER
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,1min) |
|||
AWG |
CONSTRUCTION (No./mm) |
DIA. (mm) |
THICKNESS (mm) |
O.D. (mm) |
||
30 |
1/0.254 7/0.10 |
0.25 0.30 |
0.25 0.25 |
0.75 0.80 |
361 381 |
2,000 |
28 |
1/0.32 7/0.127 |
0.32 0.38 |
0.27 0.26 |
0.85 0.90 |
227 239 |
2,000 |
26 |
1/0.404 7/0.16 |
0.40 0.48 |
0.25 0.26 |
0.90 1.00 |
143 150 |
2,000 |
24 |
1/0.511 7/0.20 |
0.51 0.60 |
0.25 0.25 |
1.00 1.10 |
89.3 94.2 |
2,000 |
22 |
1/0.643 7/0.254 |
0.64 0.76 |
0.25 0.27 |
1.15 1.30 |
56.4 59.4 |
2,000 |
20 |
1/0.813 7/0.32 |
0.81 0.96 |
0.27 0.27 |
1.35 1.50 |
35.2 36.7 |
2,000 |
18 |
1/1.024 16/0.254 |
1.02 1.17 |
0.27 0.31 |
1.55 1.80 |
22.2 23.2 |
2,000 |
16 |
1/1.29 26/0.254 |
1.29 1.49 |
0.25 0.31 |
1.80 2.10 |
14.0 14.6 |
2,000 |
Packing: 1. 2000ft per roll,with PE film as outer package
2. 4 rolls to be packed in one carton.
Delivery: 3-15 days after receiving the down payment
Terms of payment:
1. T/T (30% down payment and pay off after receiving the duplicate of B/L)
2. L/C at sight
1. Sample Available
2. OEM are offered
3. Customer wire can be manfuactured
4. Convenient transportation path to DANYANG
1) Take flight to Shanghai,and aboard Harmony train from Shanghai Station to Danyang Station about one hour.
2) Take flight to Changzhou, and aboard Harmony train from Changzhou Station to Danyang station about 20 minutes.
