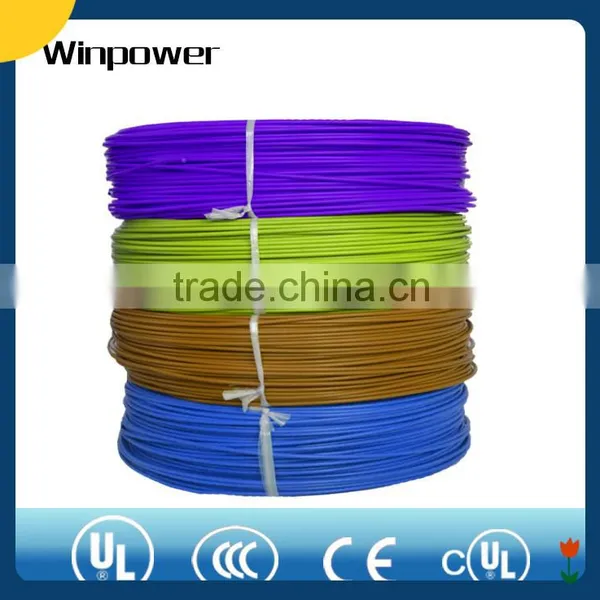

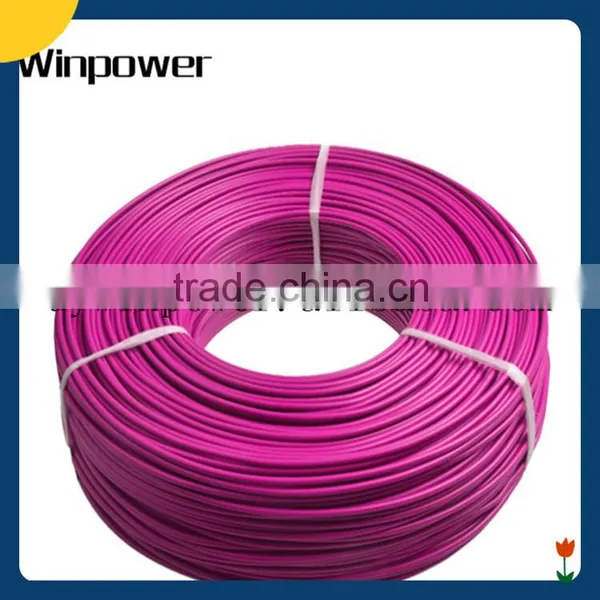

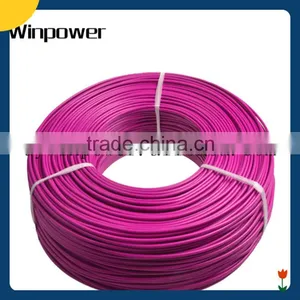

UL1061 pvc insulated bare copper conductor 16 guage solid wire
- 200 Kilometer / Kilometers per Month
- Port of Shanghai
- T/T
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
- XTW CXWT 300V UL62 PVC FIexible Cord
- Enameled Copper wire
- 3x185mm2 Overhead Insulated Cable
- Service Drop Cable XLPE/PVC/PE Insulated
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Winpower | Model Number: | UL 1061 16AWG 1/1.29mm |
Type: | Insulated | Application: | Other, internal wiring | Conductor Material: | Copper |
Conductor Type: | Solid | Insulation Material: | PVC |
Product Description
- Rated temperature: 105 degree centigrade
- Rated voltage: 300V
- Reference Standard: UL758, UL1581,CSAC22.2NO.210.2
- Conductor: Solid bare copper
- Insulation: PVC insulation, comply with ROHS environmental standard
- Flame Retardant Test: UL VW-1, CSA FT1 flame Test
- Uniform thickness to ensure stripping and cutting easily
- For general purpose internal wiring of appliance
- E330446 AWM STYLE 1061 AWG NO. 105°C 300V VW-1 --- AWM I A 105°C 300V FT1 RoHS COMPLIANT DANYANG WINPOWER
CONDUCTOR | INSULATION | MAX.COND. RESISTANCE (Ω/km,20°C,DC) | DIELECTRIC STRENGTH (VAC,1min) | |||
AWG | CONSTRUCTION (No./mm) | DIA. (mm) | THICKNESS (mm) | O.D. (mm) | ||
30 | 1/0.254 7/0.10 | 0.25 0.30 | 0.25 0.25 | 0.75 0.80 | 361 381 | 2,000 |
28 | 1/0.32 7/0.127 | 0.32 0.38 | 0.27 0.26 | 0.85 0.90 | 227 239 | 2,000 |
26 | 1/0.404 7/0.16 | 0.40 0.48 | 0.25 0.26 | 0.90 1.00 | 143 150 | 2,000 |
24 | 1/0.511 7/0.20 | 0.51 0.60 | 0.25 0.25 | 1.00 1.10 | 89.3 94.2 | 2,000 |
22 | 1/0.643 7/0.254 | 0.64 0.76 | 0.25 0.27 | 1.15 1.30 | 56.4 59.4 | 2,000 |
20 | 1/0.813 7/0.32 | 0.81 0.96 | 0.27 0.27 | 1.35 1.50 | 35.2 36.7 | 2,000 |
18 | 1/1.024 16/0.254 | 1.02 1.17 | 0.27 0.31 | 1.55 1.80 | 22.2 23.2 | 2,000 |
16 | 1/1.29 26/0.254 | 1.29 1.49 | 0.25 0.31 | 1.80 2.10 | 14.0 14.6 | 2,000 |
Packing: 1. 610m/coil ,with PE film as outer package
2. 4 coils to be packed in one carton.
Delivery: 3-15 days after receiving the down payment
Terms of payment:1. T/T (30% down payment and pay off after receiving the duplicate of B/L)
2. L/C at sight
1. Sample Available
2. OEM are offered
3. Special wire can be manufactured
6. Convenient transportation path to DANYANG .
1) Take flight to Shanghai,and aboard Harmony train from Shanghai Station to Danyang Station about one hour.
2) Take flight to Changzhou, and aboard Harmony train from Changzhou Station to Danyang station about 20 minutes.
