China Foam Concrete Production Line in Saudi Arabia

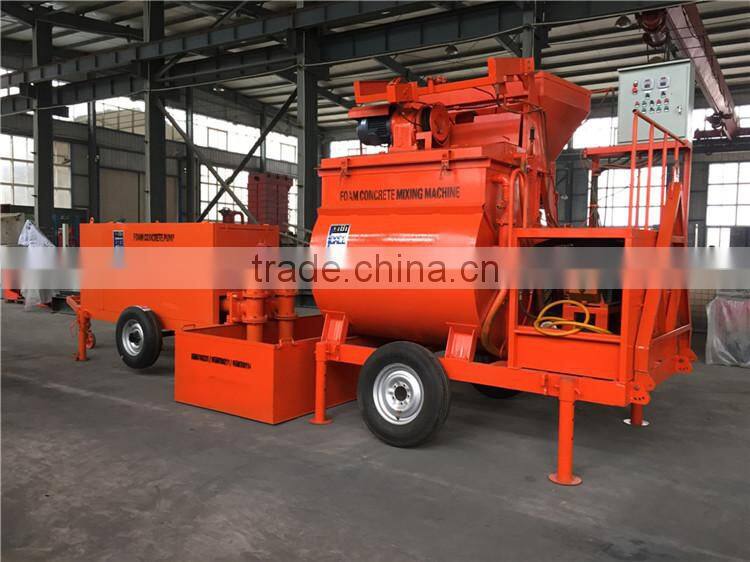

Herein, it is the Foam Concrete Wall Pouring Machine in whole set:

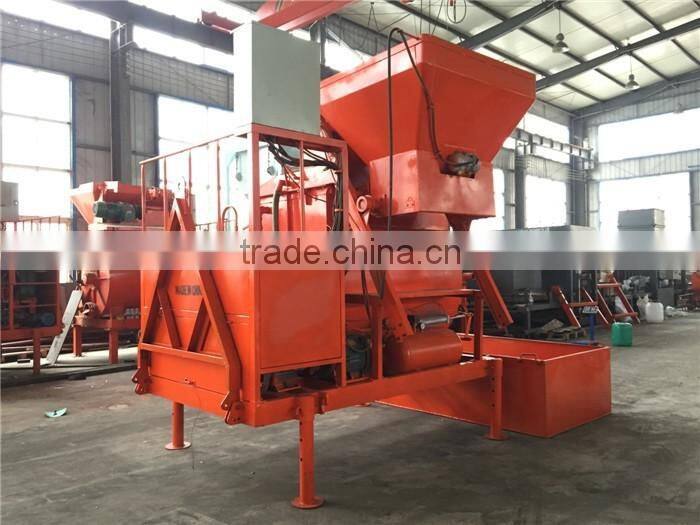

Foam Concrete mixer

Foam generator, mixer hopper, feeder hopper, water pump and control panel are included in the foam concrete machine.

SYT-20 Foam concrete mixing machine

Output volume 1500L
Machine Volume 1800~2000L
Capacity 6-10m3/h(feed by manual) & 10-15m3/h (feed by batcher)

Main shaft revolution 32r/min
Hopper lifting speed  22m/min
Overall dimension  2600*2250*2800mm
Total weight  3200kg
Motors: 11kw+5.5kw+1.1kw+0.55kw+3kw+5.5kw
Max. travelling speed  ≤15km/h

Foam Concrete Hydrulic Pump

Features

1.        Adopting wear resistant metal, sturdy and durable.

2.        Full automatic control system, to adjust the foam concrete density easily.

3.        Adopting the famous brand good quality components, reliable quality.

4.       Adopting hydraulic two cylinders single conveying way to send the foam concrete to the construction plant on-site, stable flow, small fluctuation.

5.        Equipped with travelling wheel, easy moving and position.

6.        Equip the remote control handle with the electric cabinet, convenient operation.

SYT-30 Foam concrete mixing machine

Max. theoretical grouting flow 30 m³/h
Max. theoretical conveying pressure 8 Mpa
Max. theoretical horizontal transporting range 600 m
Max. theoretical vertical transporting height 200 m
Max. particle size of aggregates 8 mm
Pump head quantity 2 PCS

Oil cylinder (material cylinder) quantity  2 PCS
Oil cylinder inside diameter*stroke Φ80*1000 mm

Material cylinder inside diameter*stroke  Φ140*1000 mm
Max. pressure of hydraulic system  24 Mpa
Oil pressure box volume  200L
Motor power 30 kw
Dimension (L*W*H)  3100*920*1300 mm
Weight (whole machine) 1900kg
