Home > Products > Foam Concrete Pump > Concrete Pump/Foam Cement Pump

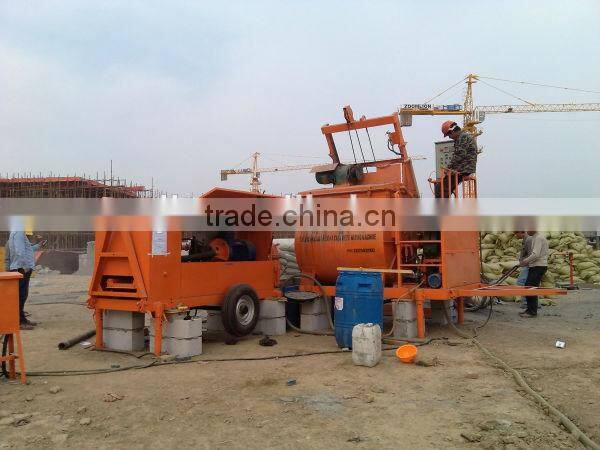

Concrete Pump/Foam Cement Pump
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, Lightweight Foam Concrete Block Making Machine | |
| Brick Raw Material | Other, Cement+flyash/finesand/stone powder+foaming agnet.. | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 20-30m3/h | Place of Origin | Henan, China | |
| Brand Name | SYM | Model Number | SYT-30 | |
| Voltage | 380V/50HZ | Power | 30kw | |
| Dimension(L*W*H) | 3100*920*1300 mm | Warranty | 12Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1- compact structure,2- reliable performance,
3- easy operation...
CLC Cellular Lightweight Concrete Machine is popular with people for its good thermal insulation, sound protection, lightweight, good fire rating and so on.
Raw Material:
Cement+Flyash/Fine sand/Stone dust...+Foaming agent+water.

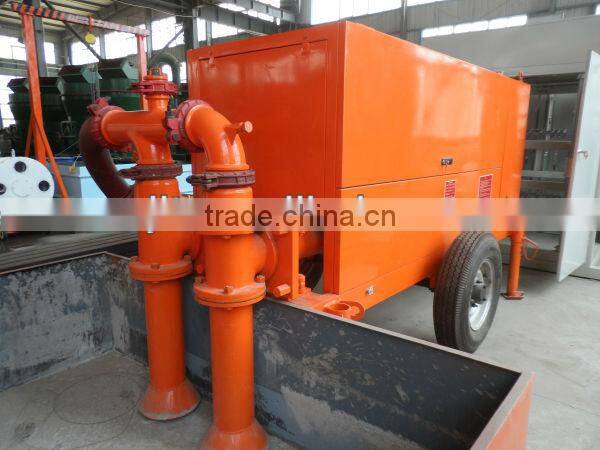

Hydraulic Concrete Pump:
ITEM | DATA |
Max. theoretical grouting flow | 30 m³/h |
Max. theoretical conveying pressure | 8 Mpa |
Max. theoretical horizontal transporting range | 600 m |
Max. theoretical vertical transporting height | 200 m |
Max. particle size of aggregates | 8 mm |
Pump head quantity | 2 Pcs |
Oil cylinder (material cylinder) quantity | 2 Pcs |
Oil cylinder inside diameter*stroke | Φ80*1000 mm |
Material cylinder inside diameter*stroke | Φ140*1000 mm |
Max. pressure of hydraulic system | 24 Mpa |
Oil pressure box volume | 200L |
Motor power | 30 KW |
Dimension (L*W*H) | 3100*920*1300 mm |
Weight (whole machine) | 1900 kg |
Welcome to contact us for Business Negotiation!
