Home > Products > Foam Concrete Pump > foam cement conveying pump
foam cement conveying pump
- 100 Set / Sets per Month
- QINGDAO
- T/T Credit Card
Product Details
Condition: | New | Power Type: | Electric | Place of Origin: | Henan, China |
Brand Name: | SYM | Model Number: | SYT-30 | Power(W): | 30kw |
Weight: | 1900kg | Dimension(L*W*H): | 3100*920*1300 mm | Warranty: | 12months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1- reasonable design,2- reliable performance,
3- easy operation,
4- convenient and flexible...
Introduction:
Dynamical system and Hydraulic components and parts adopt inland famous brand, high reliability.
Hydraulic system adopts air cooling heat dissipation.
Long stroke cylinder, good material suction, long service life.
Adopts Proximity switch to control reversing, small noise, working smooth and steady.
Unique pump head structure, dismantle and cleaning conveniently.
Equipped with rubber wheels and guide pulley, mobile flexibly.
Main Technical Data:
ITEM | DATA |
Max. theoretical grouting flow | 30 m³/h |
Max. theoretical conveying pressure | 8 Mpa |
Max. theoretical horizontal transporting range | 600 m |
Max. theoretical vertical transporting height | 200 m |
Max. particle size of aggregates | 8 mm |
Pump head quantity | 2 Pcs |
Oil cylinder (material cylinder) quantity | 2 Pcs |
Oil cylinder inside diameter*stroke | Φ80*1000 mm |
Material cylinder inside diameter*stroke | Φ140*1000 mm |
Max. pressure of hydraulic system | 24 Mpa |
Oil pressure box volume | 200L |
Motor power | 30 KW |
Dimension (L*W*H) | 3100*920*1300 mm |
Weight (whole machine) | 1900 kg |
Bulk foam concrete machine in Plywood case;
Container laden products in nude packing.
All machineries shipping by sea or by train within 7~10days normally.
Our company provides after sales service and technical assistant.
We offer installation service as per customers requirements and needs;
Clients could also to study technology in our factory freely.
Q: Does the hydraulic foam concrete pump with PLC control panel and is there equipped with remote controller?
A: Yes, the hydraulic foam concrete pump is equipped with PLC control panel and remote controller.

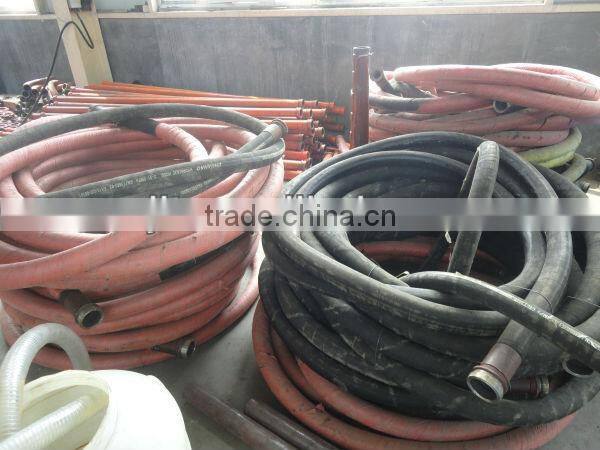

Q: Does the hydraulic foam concrete pump matched with pipes or hoses?
A: Yes, 66meters straight steel pipes and 40meters rubber hoses.
Q: How height in vertical does the pump can reach?
A: Max.200meters.
Q: How long in horizontal does the hydraulic foam concrete pump can reach?
A: Max.600meters.
Q:The matched pipes or hoses can't meet to our requirement, how can we want more pipes or hoses?
A: Easy, you could tell us before you book it, and we will calculate the cost of the extra ones, exceed the 66meters steel pipes or 40meters rubber hoses, shall pay extra.
Q: What's the hydraulic foam concrete pump's wearing parts, and how long shall change them?
A: limited switch, piston, and steel ball. Normally 6-12months for limited switch, 8-18months for piston or steel ball.
Q: Is there any spare parts with the hydraulic foam concrete pump shipping together?
A: Sure, 2pcs limited switches, 4sets steel balls, and 2pistons together with the hydraulic foam concrete pump shipping.
Q: If over the guarantee, we need spare parts, how?
A: Here, we are always here offer service in 24hours every day.
