Home > Products > Foam Concrete Pump > Foam Cement Conveying Pump

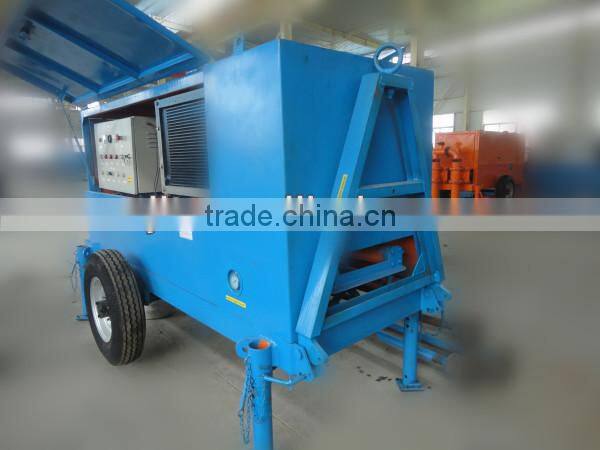

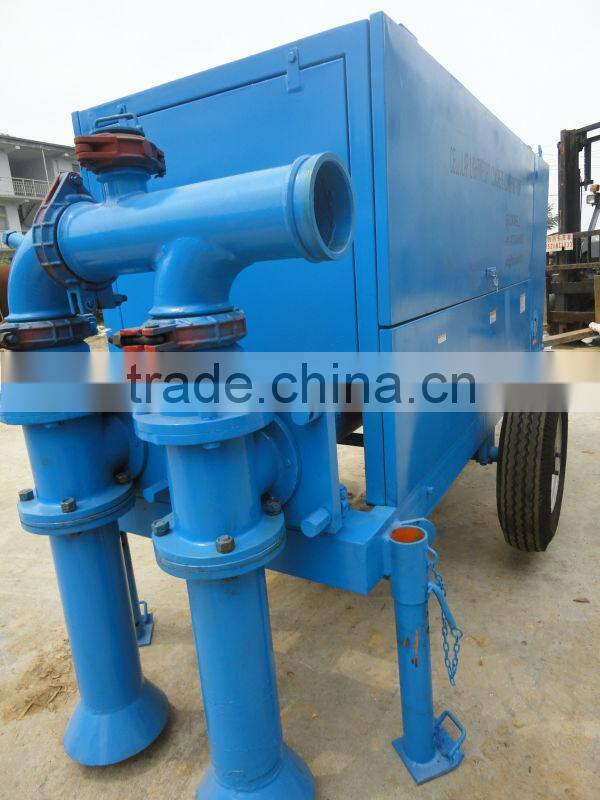

Foam Cement Conveying Pump
- QINGDAO
- T/T Credit Card
You May Like
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | SYM | |
| Model Number | SYT-30 | Power(W) | 30kw | |
| Weight | 1900kg | Dimension(L*W*H) | 3100*920*1300 mm | |
| Warranty | 12months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1- reasonable design,2- reliable performance,
3- easy operation,
4- convenient and flexible...
SYT-30 Hydraulic conveying pump
Introduction:
Conveying pump adopts hydraulic drive, with reasonable design, reliable performance, easy operation, convenient and flexible, economic and durable, high efficiency and low consumption, enjoys high reputation in domestic market..
SYT-30 hydraulic conveying pump (two-cylinder pump), through motor drives the high pressure oil pump producing pressure oil, and pressure oil orderly enter into the two cavities of hydraulic oil cylinder by hydraulic directional control valve to drive the inner piston of hydraulic oil cylinder, and then the inner piston bring the working cylinder to do synchronous reciprocating motion, under the function of working cylinder, it is to complete the process of pulp suction and discharging by suction valve and discharge valve.
Main Technical Data:
ITEM | DATA |
Max. theoretical grouting flow | 30 m³/h |
Max. theoretical conveying pressure | 8 Mpa |
Max. theoretical horizontal transporting range | 600 m |
Max. theoretical vertical transporting height | 200 m |
Max. particle size of aggregates | 8 mm |
Pump head quantity | 2 Pcs |
Oil cylinder (material cylinder) quantity | 2 Pcs |
Oil cylinder inside diameter*stroke | Φ80*1000 mm |
Material cylinder inside diameter*stroke | Φ140*1000 mm |
Max. pressure of hydraulic system | 24 Mpa |
Oil pressure box volume | 200L |
Motor power | 30 KW |
Dimension (L*W*H) | 3100*920*1300 mm |
Weight (whole machine) | 1900 kg |
