A. CHARACTERISTIC
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Each printing unit adopts 360° plate-adjustment.
3. Three die-cutting stations, the first and second stations are applicable for double side die-cutting, the third die-cutting station is used for sheetting or slitting printed materials.
4. Computerized web-guiding system is installed in the front of printing unit, it ensures the material always in the right position. (standard configuration)
5. A conveyer system is optional. This system can be used in combination with the third die cutting station, and it function to deliver finished products roderly.
6. Unwinding and rewinding tension are auto-controlled by magnetic powder, double rewinding unit is also available in this machine , upon request.
7. A static image monitoring device is optional. It functions to inspecting the image quality when the flexo machine works at a high speed.
8. The ink rollers will be automatically separated from the printing roller, and it will keep rotating at a low speed, thus preventing ink from drying.
9. The machine inverter is imported.
10. The main motor is equipped with highly advanced variable frequency stepless speed controller.

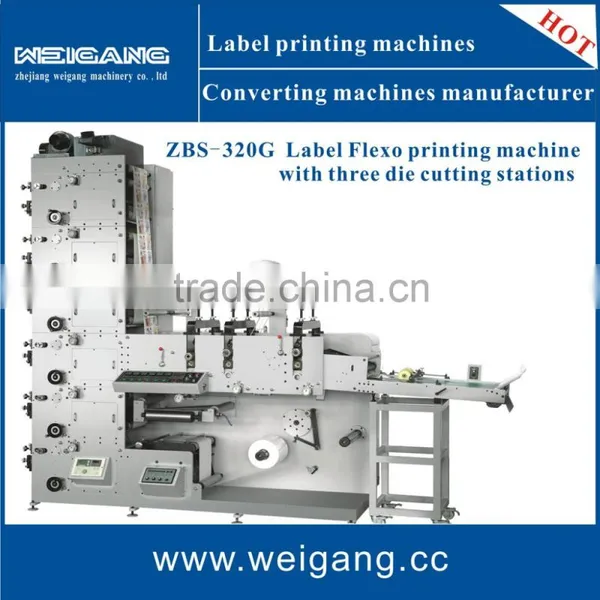

11. The flexo machine with tripe rotary die cutting stations is easy and simple to operate. It can finish material-feeding, printing, varnishing, drying, laminating, die-cutting, rewinding and sheeter at one stroke.
B. MAIN TECHNICAL SPECIFICATION
Model |
ZBS-320G |
Printing speed |
55m/min |
Printing color |
5colours |
Max. width of paper |
320mm |
Max .printing width |
310mm |
Max. unwinder/rewinder diameter |
650mm |
Printing length |
Z56-Z112 (177.8-355.5mm) |
Thickness of flexo plate |
1.7mm or 1.14mm |
Precision of chromatography |
±0.1mm |
Dimensions |
2.6mX1.2m X2.6m |
Machine weight |
About 2900kg |
C. OPTION:
1, Sheeter conveyer
2, UV dryer
3, Separate unwinder shelf (diameter up to 900mm)
4, Corona treater
5, Cold stamping unit
6, Video inspecting system
7, Safe cover for printing unit
8, Slitting unit with single rewinder or double rewinder
9, elctric hoist
Machine Show
We have more than 20 years' experience in manufacturing Label printing and converting machine field.
Top quality, Competitive price, Timely delivery and Heart-to-heart service.
Warrantee: One year guarantee, life-long maintenance.
1, Q: How about the after service?
A: We have a strong team, special for after service. We can arrange engineers to do service for you.
2, Q: Are you factory or trading company?
A: We are a factory in this field nearly 20 years (Formally named Ruian Donghai Printing Machinery Co.,Ltd.).
3, Q: Where is your factory located? How can I visit there?

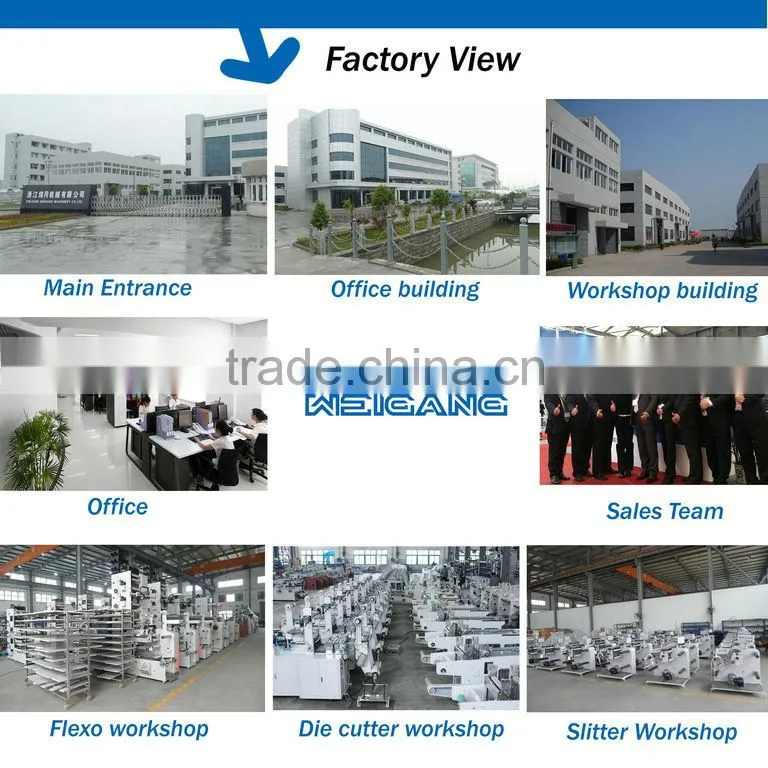

A:Our factory is located in Wenzhou City, Zhejiang Province, China, near to the Wenzhou airport. You can fly to Wenzhou airport directly.
4, Q:How does your factory do regarding quality control?
A:Quality is priority. We always attach great importance to quality controlling from the beginning.
5, Q: why choose Weigang Machinery?
A: We are one of leader in this field(in China). Our quality products and service have enabled us to expand our market from china to more than 60 countries.
Welcome to visit us and contact us for any problems!
