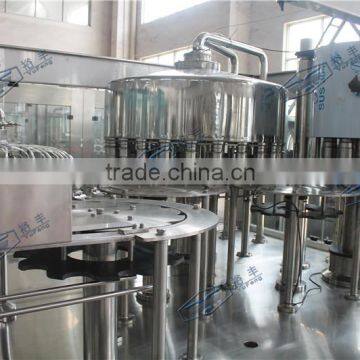

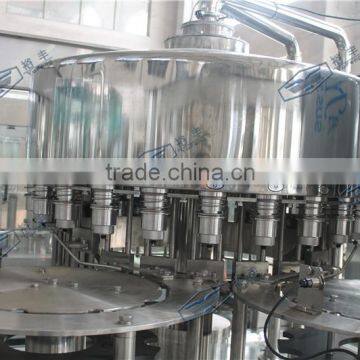

CGF24-24-8 Automatic Bottle Water Filler
- Shanghai port for CGF24-24-8 bottle water filler
- T/T
You May Like
-
High Quality Bottle Water Filling Production Line/equipments/filler
-
CGF24-24-8 3 in 1 PET Bottle Mineral Water Filling Equipment
-
8000BPH Automatic Bottling 3 in 1 Water Filling Machine
-
King Quality Water Bottling Machine Cost / Line Cost
-
Automatic 3 in 1 Water Bottling Machine Quality Choice
-
Top Quality Mineral Drinking Water Big Bottle Water Production Line
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Bottles | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/380V | Power | 3KW | |
| Place of Origin | Jiangsu, China | Brand Name | YuFeng | |
| Model Number | CGF24-24-8 | Dimension(L*W*H) | 2200X2100X2200MM | |
| Weight | 2500kg | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CGF24-24-8 automatic bottle water filler
CGF24-24-8 automatic bottle water filler
---Description
The CGF24-24-8 bottle water filler integrates washing,filling and capping into one unit,can be used for different kinds of non gas drink production.The advanced micro -negative pressure filling technology is used in this machine .The filling is quick ,steady and accurate.The beverage feedback system is well designed ,the gas can be fed back separately,has no contact with beverage reduce the second timepollution and oxidation .
CGF24-24-8 automatic bottle water filler
---Technical Parameter
Model | CGF8-8-3 | CGF12-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-10 | CGF50-50-15 |
Washing No | 8 | 16 | 18 | 24 | 32 | 40 | 50 |
Filling No | 8 | 12 | 18 | 24 | 32 | 40 | 50 |
Capping No | 3 | 6 | 6 | 8 | 10 | 10 | 12 |
Production capacity(500ml b/h) | 2000 | 4000 | 7000-8000 | 10000-12000 | 12000-15000 | 15000-18000 | 20000-22000 |
Installed Capacity(kw) | 3 | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
Overall size | 2250*1800*2400 | 2450*1800*2400 | 2650*1900*2400 | 2900*2100*2400 | 4100*2400*2400 | 4550*2650*2400 | 5450*3210*2400 |
CGF24-24-8 automatic bottle water filler

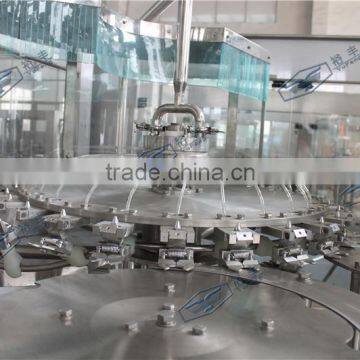

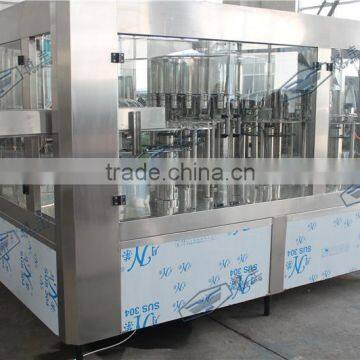

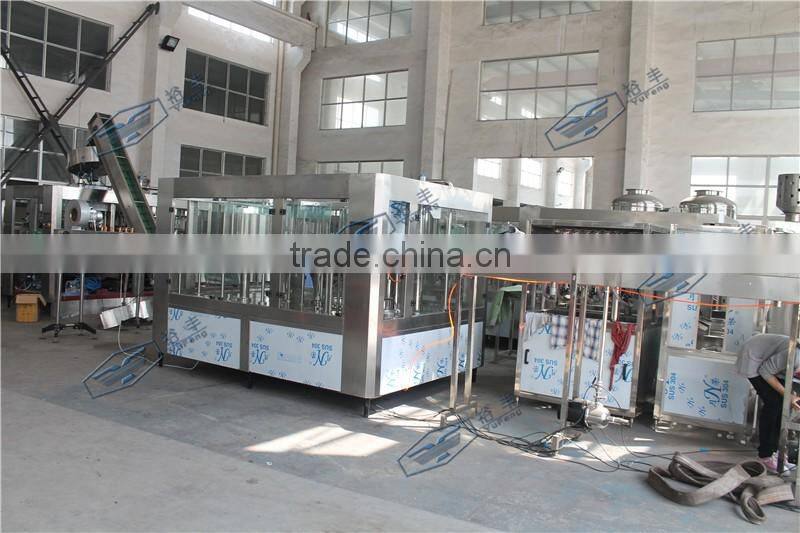

---Rinsing-filling-capping 3 in 1 machine
CGF24-24-8 automatic bottle water filler

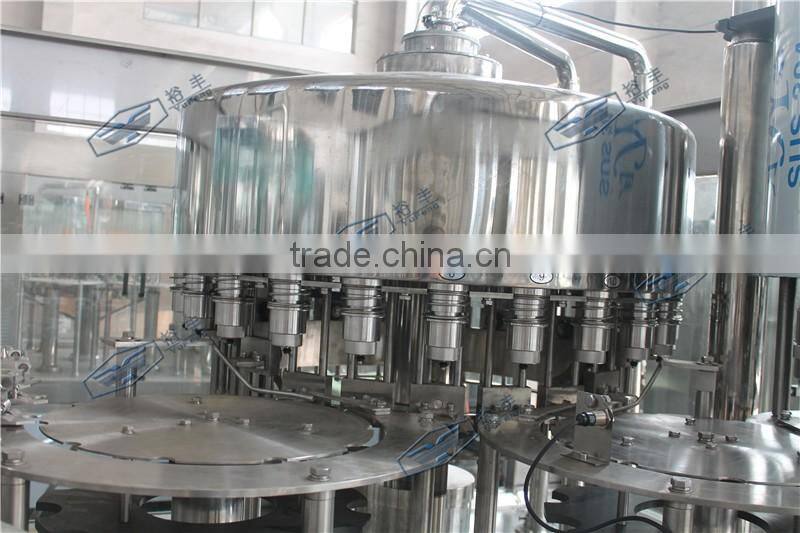

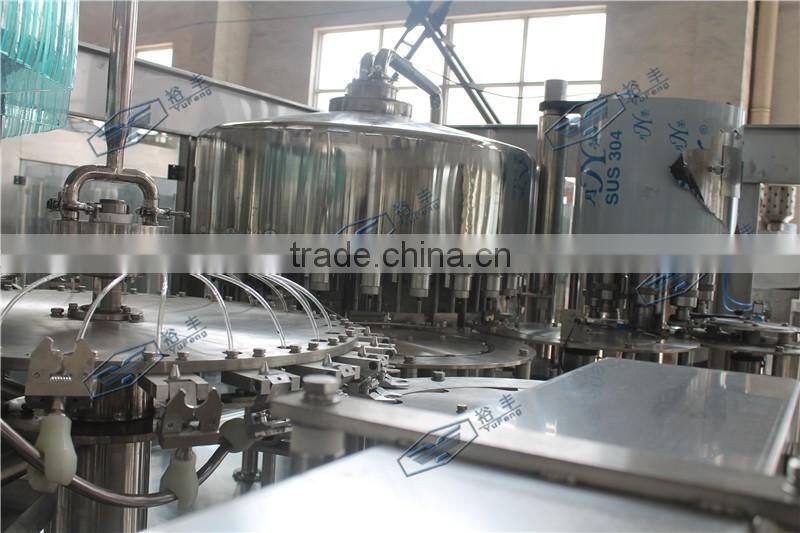

---Detailed filling part
CGF24-24-8 automatic bottle water filler

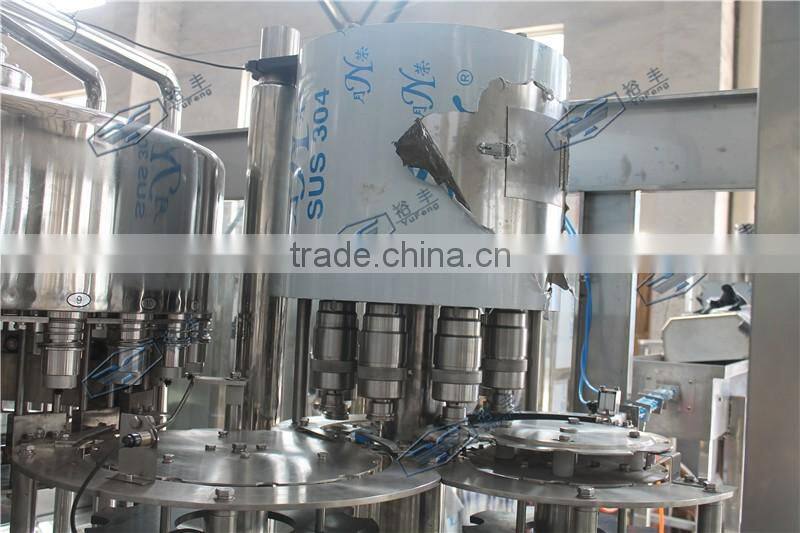

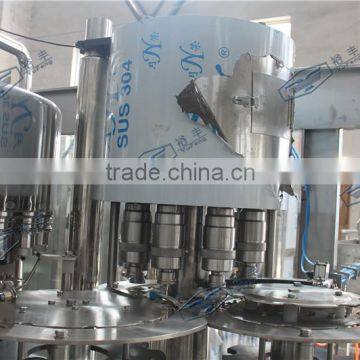

---Capping part for ref
CGF24-24-8 automatic bottle water filler

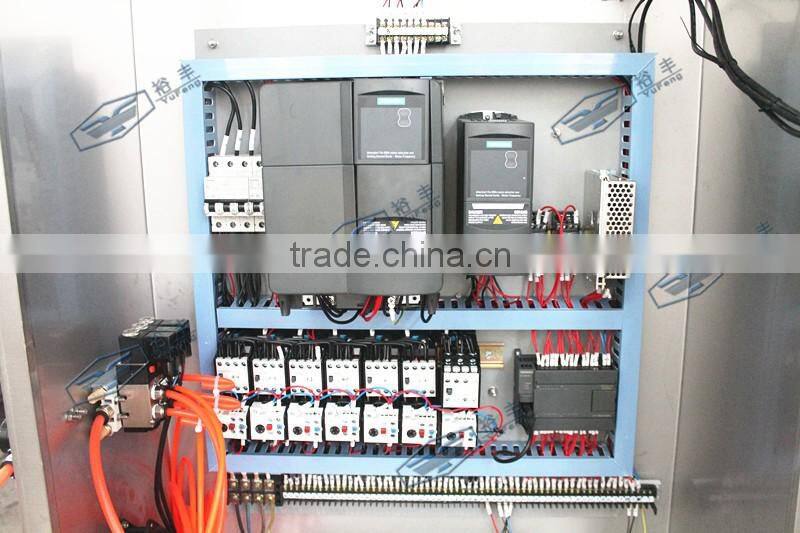

---Our electric control box
CGF24-24-8 automatic bottle water filler
---Spare parts supplier
ZhangJiaGang City YuFeng Beverage Machinery Co.,Ltd. is located in the economy developed golden delta zone along Yangster River.To the west of ShangHai and the east of NanJing,domestic and overseas transportation is very convenient.
We are a manufactorying enterprise specializing in producing beverage packing equipment and various water advenced technologyfrom hone and abroad.So we have win high reputation among our customers.
At present we produce:productiong lines for mineral water,pure water,fruit juice,tea drink,milk drink and carbonated drink with capacity 1000-20000bottles per hour; production lines for vinegar,soysouceand wine 1000-20000bottles per hour;3-5 gallon barreled water with capacity 80-1200 barrels per hour and various water treatment plants.
"Honsty,Sincerity and good faith"is our spirit while "High technology ,high quality and high level"is what we aim.We try our best to satisfy our customers with our good after sale service.We would like to welcome all our society to cooperate and develop together.
CGF24-24-8 automatic bottle water filler
---After Sales Service
1. Find our products through http://yufengjx.en.china.cn/
2. One year warranty for the whole system
3. Free equipment installation and debugging
4. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
5. Every 3 years, we can help to overhaul the machine free (Labor)
6. We can provide internship service and help you train the operator and mechanic
7. Free production technology and process configuration
8. We can help you to design the production line, workshop and provide turn-key project
If any doubts ,pls let me know.
