High Capacity 5 gallon water filling machine/ 20L bottle water filling line
High Capacity 5 gallon water filling machine/ 20L bottle water filling line ---Application range

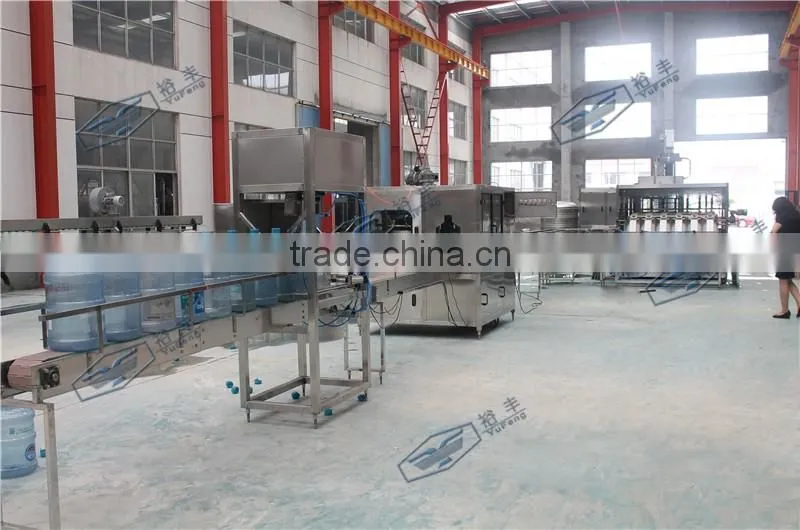

20L bottle water filling line is used for 5 gallon water filling, which is composed of washer, filling and capper.
1.304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
2. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts.
4. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows.
High Capacity 5 gallon water filling machine/ 20L bottle water filling line ---Technical parameter
Model |
QGF-100 |
QGF-200 |
QGF-300 |
QGF-450 |
QGF-600 |
QGF-900 |
QGF-1200 |
Filling heads |
1 |
2 |
3 |
4 |
5 |
6 |
8 |
Volume(L) |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
Barrel size (mm) |
270×490 |
270×490 |
270×490 |
270×490 |
270×490 |
270×490 |
270×490 |
Capacity (b./h) |
100 |
200 |
300 |
450 |
600 |
900 |
1200 |
Gas pressure (MPA) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
Gas consumption (m3/min) |
0.37 |
0.37 |
0.6 |
0.8 |
1 |
1.5 |
1.8 |
Motor power(kw) |
1.38 |
1.75 |
3.8 |
3.8 |
7.5 |
9.75 |
13.5 |
Rated voltage(V) |
380/50Hz |
380/50Hz |
380/50Hz |
380/50Hz |
380/50Hz |
380/50Hz |
380/50Hz |
Weight (kg) |
680 |
800 |
1500 |
2100 |
3000 |
3500 |
4500 |

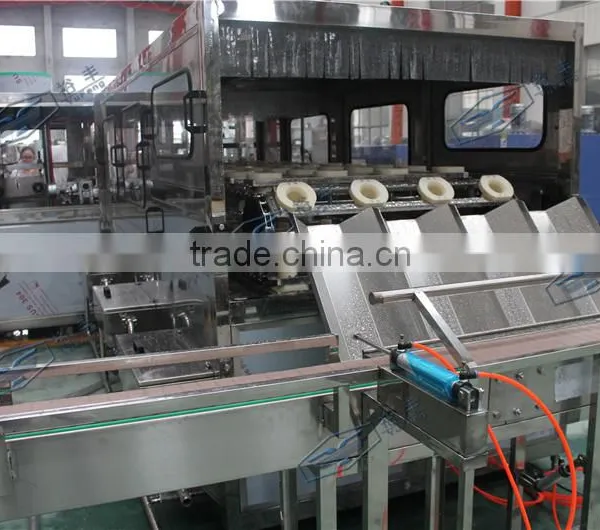

High Capacity 5 gallon water filling machine/ 20L bottle water filling line

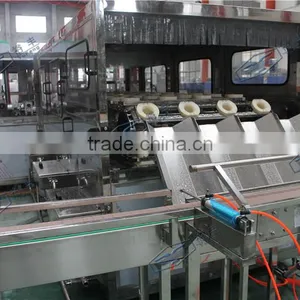

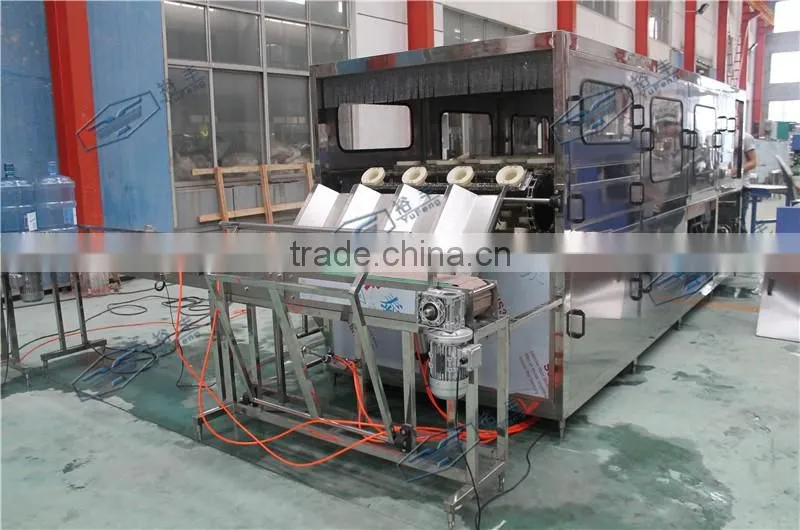

---4 rinsing nozzles for ref

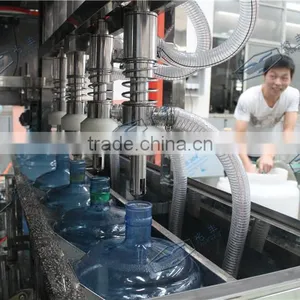

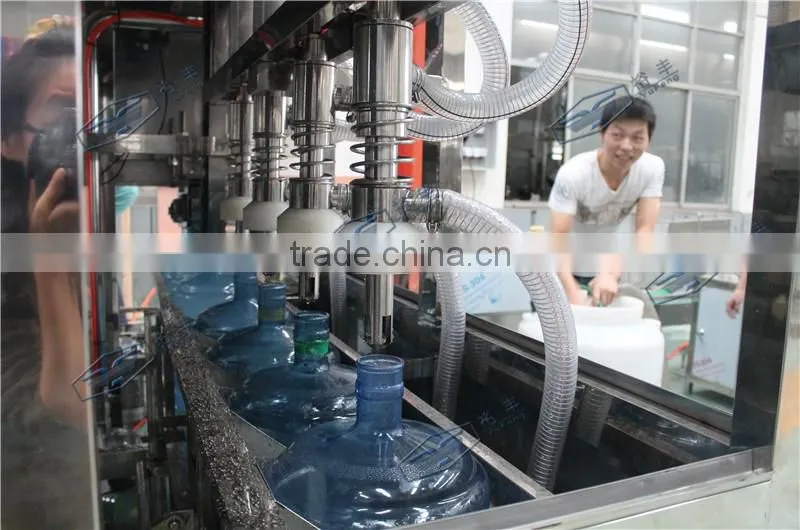

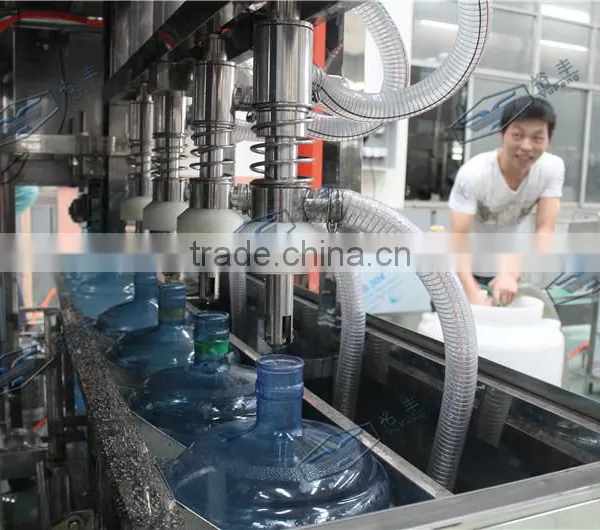

High Capacity 5 gallon water filling machine/ 20L bottle water filling line

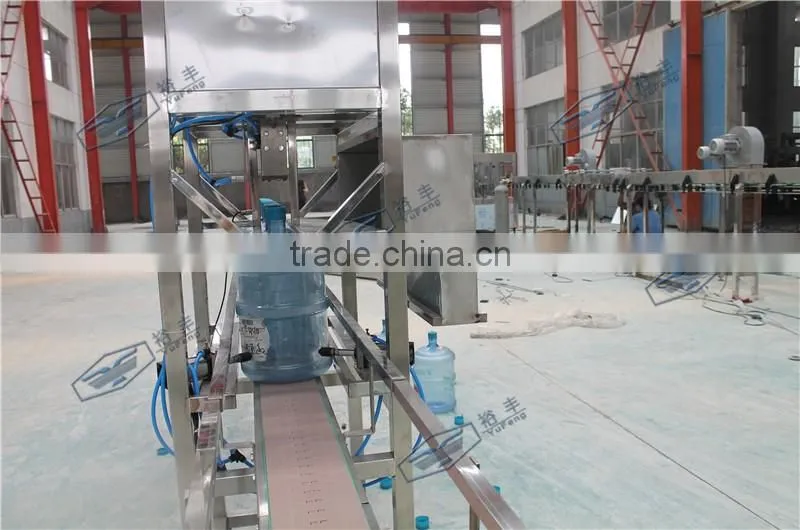

---4 filling nozzles for ref

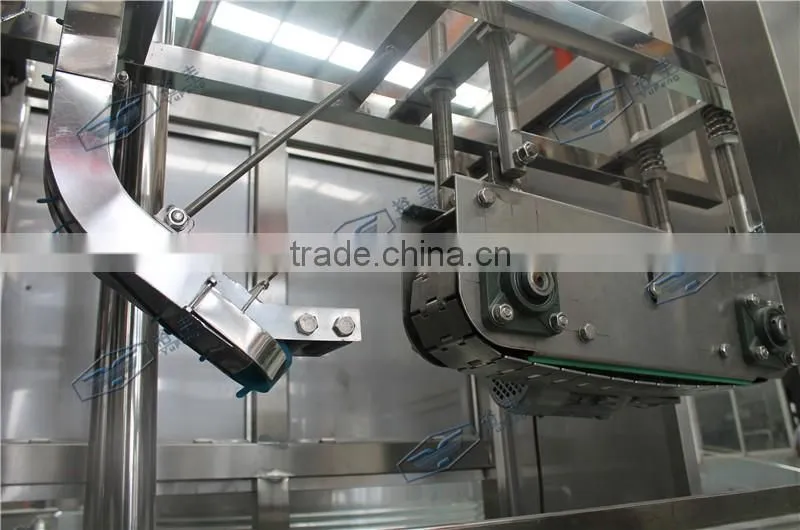

High Capacity 5 gallon water filling machine/ 20L bottle water filling line

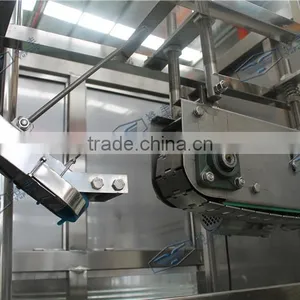

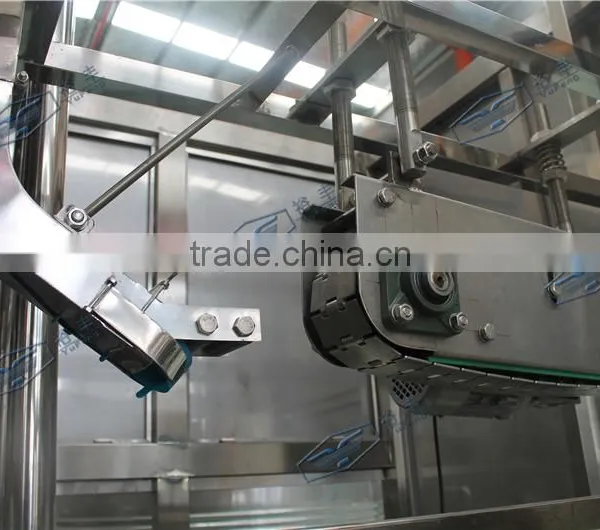

---Belt Capping part for ref
High Capacity 5 gallon water filling machine/ 20L bottle water filling line
---De-capper for ref
High Capacity 5 gallon water filling machine/ 20L bottle water filling line
---Spare parts supplier
ZhangJiaGang City YuFeng Beverage Machinery Co.,Ltd. is located in the economy developed golden delta zone along Yangster River.To the west of ShangHai and the east of NanJing,domestic and overseas transportation is very convenient.
We are a manufactorying enterprise specializing in producing beverage packing equipment and various water advenced technologyfrom hone and abroad.So we have win high reputation among our customers.
At present we produce:productiong lines for mineral water,pure water,fruit juice,tea drink,milk drink and carbonated drink with capacity 1000-20000bottles per hour; production lines for vinegar,soysouceand wine 1000-20000bottles per hour;3-5 gallon barreled water with capacity 80-1200 barrels per hour and various water treatment plants.
"Honsty,Sincerity and good faith"is our spirit while "High technology ,high quality and high level"is what we aim.We try our best to satisfy our customers with our good after sale service.We would like to welcome all our society to cooperate and develop together.
High Capacity 5 gallon water filling machine/ 20L bottle water filling line
---After Sales Service
1. Find our products through https://img13.fr-trading.com/
2. One year warranty for the whole system
3. Free equipment installation and debugging
4. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
5. Every 3 years, we can help to overhaul the machine free (Labor)
6. We can provide internship service and help you train the operator and mechanic
7. Free production technology and process configuration
8. We can help you to design the production line, workshop and provide turn-key project
If any doubts ,pls let me know.
