Professional Factory Customized Furniture Paint Booth

FOB Price

USD $8,000 - $20,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Professional Factory Customized Furniture Spray Booth Paint Booth

Reference parameter as below:

Customized Furniture Spray Booth
1	Dimension	Internal size:590039002650mm
2	Entrance Door	1 set double door(Dimension:WH10002000mm),1.2mm aluminum alloy binding framework
3	Wallboard	50mm EPS(epispastics polystyrene)insulation material with S=0.426 two side steel pannel
4	Lighting	8 group lamps box 8group×3pcs =24pcs 36W special FSL lamp
5	Air Intake	2 set environmental special fan ,single parameter: YOW5.6m.1.5kw. 12500m³/h .Intake air from the roof,exhaust air from down side .It can settle based on the actual situation .
6	Air Exhaust	1 set axial flow fan:YOW4m.3kw.18000m³/h
7	Filtration System	300 pre-filter equipment ,Room equipped with CC-G650 high effiency filtering device.which can effectively filter 5PM particles
8	Roof	50mm EPS(epispastics polystyrene ) insulation material with S-0.426 steel pannel.Roof construction is consist of six square tubes
9	Control System	painting ,lighting ,breakdown indication,power switch,emergency stop switch ,and hour meter
10	Water Curtain	Dimension :2800*1400mm.1 set double layer screen water curtain unit which is made of stailness steel ,1 set 0.75kw special water pump.
11	Voltage	380V 50HZ
12	Air Flow Speed	0.25m/s
13	Light Intensity	1000lx
14	Total Power	8 kw
15	Basement	10# channel steel which is convex design .column is made of channel steel ,grille with sulfuration and galvanized treatment ,which can meet the national anti-rust standard.Grille size:1150*750mm,12pcs
16	Air Duct	0.8mm stengthen galvanized plate,2 straight pipe ,1 binding pipe .

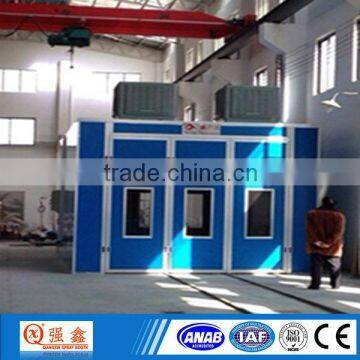

Reference pictures:

Should you have any query ,please feel free to contact Sunny:0086-13678922461.
