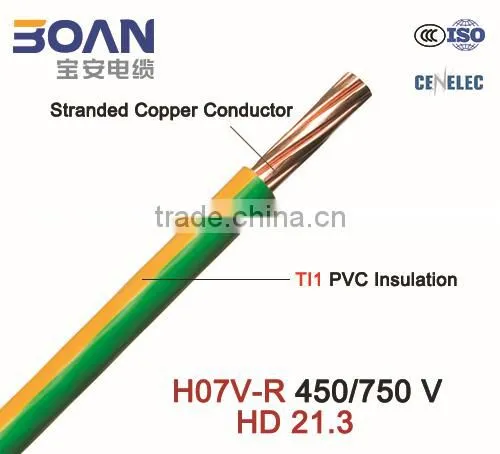

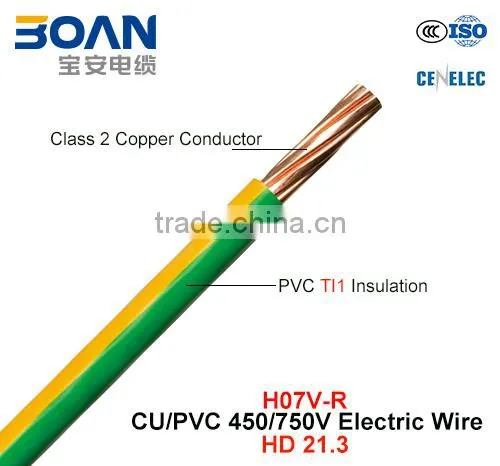

Help CenterH07V-R Copper/PVC Electric Cable in House Wiring
Related Products
-
318-Y Electric Wire 300/500v Flexible Cu/PVC/PVC BS 6500US$ 0.5 - 1MOQ: 500 Inches -
N07V-K 450/750V Class 5 Cu/PVC Wire Cable CEI 20/22-2/EN 50267-2-1US$ 1 - 5MOQ: 500 Inches
-
Nhxmh Electric Wire 300/500V Cu/XLPE/Lszh (LSOH) Cable VDE 0250-214US$ 1 - 5MOQ: 500 Inches
-
Nhmh Electric Wire 300/500V Cu/Hf/Hffr/Hffr DIN VDE 0250-215US$ 1 - 2MOQ: 500 Inches
-
H07z-U Electric Wire 450/750v Cu/Lszh Low Smoke Halogen Free Cable HD 22.9US$ 1 - 5MOQ: 500 Inches
Standards BS6004
Conductor Class 2 stranded plain copper conductors to BS EN 60228: 2005 (previously BS6360)
Insulation PVC (Polyvinyl Chloride) Type TI1 to BS7655
Insulation Colour Red, Black, Blue, Yellow, Brown, White, Green/Yellow, Grey
Voltage Rating 450/750V
Temperature Rating 0° C to +70° C
Minimum Bending Radius Up to 10mm² : 3 x overall diameter 10mm² To 25mm² : 4 x overall diameter Above 25mm² : 5 x overall diameter
| No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Weight |
| mm2 | mm | mm | kg/Km |
| 1 x 1.5 | 0.7 | 3.4 | 22 |
| 1 x 2.5 | 0.8 | 4.2 | 35 |
| 1 x 4.0 | 0.8 | 4.8 | 50 |
| 1 x 6.0 | 0.8 | 5.4 | 72 |
| 1 x 10.0 | 1.0 | 6.8 | 121 |
| 1 x 16.0 | 1.0 | 8.0 | 182 |
| 1 x 25.0 | 1.2 | 9.8 | 285 |
| 1 x 35.0 | 1.2 | 11.0 | 390 |
| 1 x 50.0 | 1.4 | 13.2 | 510 |
| 1 x 70.0 | 1.4 | 15.1 | 710 |
| 1 x 95.0 | 1.6 | 17.0 | 980 |
| 1 x 120.0 | 1.6 | 19.0 | 1220 |
| 1 x 150.0 | 1.8 | 21.0 | 1500 |
| 1 x 185.0 | 2.2 | 23.5 | 1910 |
| 1 x 240.0 | 2.2 | 26.5 | 2490 |
| 1 x 300.0 | 2.4 | 29.5 | 3100 |
| 1 x 400.0 | 2.6 | 33.5 | 3950 |
| 1 x 500.0 | 2.8 | 37.0 | 5000 |
| 1 x 630.0 | 2.8 | 41.0 | 6350 |
We are glad to offer free samples for testing, please feel free to talk with us.
1. Are you a manufacturer?
Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.
2. What are your main products?
Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.
3. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.
4. How can I get samples?
Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.
5.What is your waranty terms?
The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
