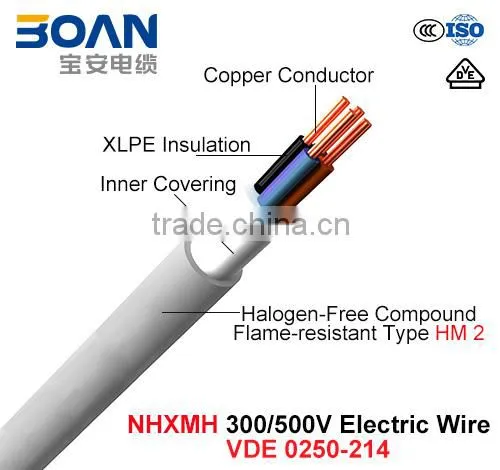

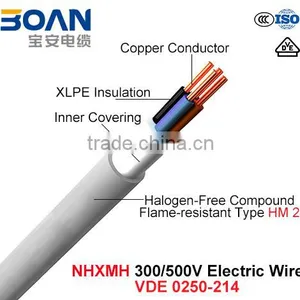

NHXMH, Electric Wire, 300/500 V, CU/XLPE/Lszh (LSOH) Cable (VDE 0250-214)
Application

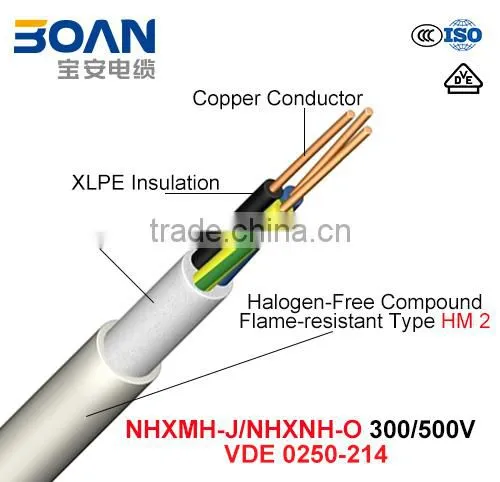

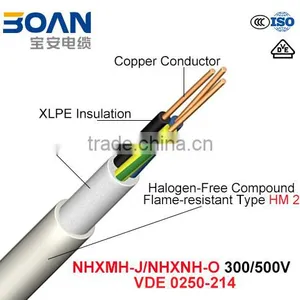

These cables are intended for fixed installation in dry and moist rooms as well as in masonry and concrete, in and under plaster; Not for underground installation. NHXMH-J/O are especially used in buildings with a high concentration of persons or valuable property, where improved fire characteristics are needed. This product conforms to 73/23/EW G directive (low voltage directive) CE.
Standards
VDE 0250 (part 214), VDE 0482 (part 266-2-4, test type C)
Technical Data
Conductor
Class 1 for re: Solid, round plain copper conductor, single wire to VDE0295
Class 2 for rm: Stranded, round plain copper conductor, multi wire to VDE0295
Class 2 for sm: Stranded, sectorial plain copper conductor to VDE0295
Insulation
XLPE (Cross-linked Polyethylene)
Filler Halogen free compound
Sheath Halogen free thermoplastic polymer compound
Temperature Rating 0° C to +70° C
Minimum Bending Radius
4 x overall diameter
Core Identification Up to and including
5 cores: Colour coded or number coded
7 cores and above: Number coded
| No. of Cores x Nominal Cross Sectional Area | Conductor Type | Nominal Overall Diameter | Nominal Weight |
| # x mm² | mm | kg/Km | |
| 1 x 1.5 | re | 7.0 | 49.0 |
| 1 x 2.5 | re | 7.6 | 60.0 |
| 1 x 4.0 | re | 8.6 | 80.0 |
| 1 x 6.0 | re | 9.9 | 111.0 |
| 1 x 10.0 | re | 11.2 | 160.0 |
| 1 x 16.0 | re | 11.9 | 232.0 |
| 2 x 1.5 | re | 8.9 | 110.0 |
| 2 x 2.5 | re | 10.0 | 136.0 |
| 2 x 4.0 | re | 11.4 | 202.0 |
| 3 x 1.5 | re | 9.4 | 130.0 |
| 3 x 2.5 | re | 10.4 | 163.0 |
| 3 x 4.0 | re | 11.8 | 235.0 |
| 3 x 6.0 | re | 13.4 | 323.0 |
| 3 x 10.0 | re | 16.0 | 485.0 |
| 3 x 16.0 | re | 19.7 | 850.0 |
| 4 x 1.5 | re | 10.2 | 151.0 |
| 4 x 2.5 | re | 11.3 | 200.0 |
| 4 x 4.0 | re | 13.3 | 300.0 |
| 4 x 6.0 | re | 14.8 | 400.0 |
| 4 x 10.0 | re | 17.4 | 603.0 |
| 4 x 16.0 | re | 21.6 | 940.0 |
| 5 x 1.5 | re | 10.8 | 177.0 |
| 5 x 2.5 | re | 11.9 | 238.0 |
| 5 x 4.0 | re | 14.8 | 345.0 |
| 5 x 6.0 | re | 16.0 | 475.0 |
| 5 x 10.0 | re | 18.9 | 720.0 |
| 5 x 16.0 | re | 23.8 | 1142.0 |
| 7 x 1.5 | re | 11.4 | 209.0 |
| 7 x 2.5 | re | 13.5 | 300.0 |
We are glad to offer free samples for testing, please feel free to talk with us.
1. Are you a manufacturer?
Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.
2. What are your main products?
Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.
3. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.
4. How can I get samples?
Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.
5.What is your waranty terms?
The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
