Nhmh Electric Wire 300/500V Cu/Hf/Hffr/Hffr DIN VDE 0250-215

Nhmh Electric Wire 300/500V Cu/Hf/Hffr/Hffr DIN VDE 0250-215 thumbnail-1
Nhmh Electric Wire 300/500V Cu/Hf/Hffr/Hffr DIN VDE 0250-215 photo-1
US$ 1 - 2 MOQ: 500 Inches
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Boan
Model Number:
Nhmh
Contact Supplier Request Quote Chat Now
Jiangsu Boan Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Boan
Model Number Nhmh
Type Insulated
Application Other, Installation
Conductor Material Copper
Conductor Type Stranded
Insulation Material Other, Hf
Product Description

 NHMH, Electric Wire, 300/500 V, CU/HF/HFFR/HFFR (DIN VDE 0250-215) APPLICATION: These halogen-free cables are used as lectric installation and lighting cables in dry, moist and wet rooms, for permanent installation above, on, in and under beneath plaster and also for outdoor applications where lots of human life and material assets are to be protected in industrial constructions, schools, hospitals, shopping and cultural centers,energy plants, airports, metros . In case of fire, these cables inhibit the propagation of the flames whereby the development of smoke is extremely low. No corrosive gases are emitted in the event of fire.

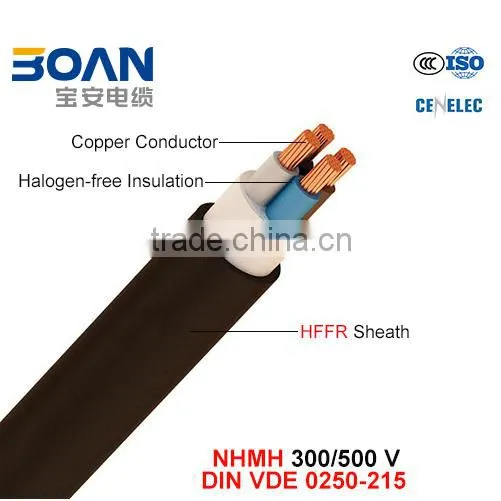

CABLE DESIGN Conductor : Cu wires,plain, solid-core, multi-stranded IEC 60228 Cls. 1/2, TS/DIN EN 60228 Cls. 1/2 Insulation : Halogen-free thermoplastic polymer compound Core identification : According to TS HD 308 S2 & VDE 0293-308; Lay-up : Cores laid up in layers of optimum pitch Filler : HFFR filler compound Outer sheath : HFFR compound, HM5 Sheath colour : RAL 7001,Grey HFFR: Halogen-free flame retardant
TECHNICAL DATA

Standard : DIN VDE 0250-215

Temp. at conductor : 70 oC Rated voltage Uo/U : 300 / 500V Test voltage (AC 50 Hz) : 2000 V

Temperature range : Fixed : - 30 oC ~ + 70 oC Mobile : - 5 oC ~ + 50 oC Min. bending radius : Sngle-core: 15 x D Multi-core : 12 x D

Flame retardance test : IEC 60332-1 & TS/DIN EN 50265-2-1

Smoke density test : IEC 61034-2 & TS/DIN EN 61034-2

Halogen-free properties test : IEC60754-1/2 & TS/DIN EN 50267-2

cross-section Nominal insulation thickness Nominal sheath thickness Outer cable diameter DC resistance at 20°C Current carrying capacity in the plaster Current carrying capacity in duct Rated short-circuit current - conductor (1s) Cable weight
n x mm2 mm mm mm /km A A kA kg/km
1 x 1,5 0,5 1,2 5,3 12,1 17,5 15,5 0,172 36
1 x 2,5 0,5 1,2 5,4 7,41 24,0 21,0 0,287 45
1 x 4 0,6 1,2 6,2 4,61 32,0 28,0 0,460 63
1 x 6 0,6 1,2 7,0 3,08 41,0 36,0 0,690 81
1 x 10 0,7 1,2 7,6 1,83 57,0 50,0 1,15 125
1 x 16 0,7 1,2 9,2 1,15 76,0 68,0 1,84 190
2 x 1.,5 0,4 1,2 7,9 14,5 19,5 16,5 0,172 90
2 x 2,5 0,4 1,2 8,7 8,87 27,0 23,0 0,287 117
2 x 4 0,4 1,2 9,6 5,52 36,0 30,0 0,460 166
2 x 6 0,4 1,2 10,9 3,69 46,0 38,0 0,690 215
2 x 10 0,6 1,4 13,2 2,19 63,0 52,0 1,15 340
3 x 1.,5 0,5 1,2 8,6 14,5 19,5 16,5 0,172 105
3 x 2,5 0,5 1,2 9,2 8,87 27,0 23,0 0,287 140
3 x 4 0,6 1,2 10,8 5,52 36,0 30,0 0,460 200
3 x 6 0,7 1,4 12,4 3,69 46,0 38,0 0,690 280
3 x 10 0,7 1,4 14,4 2,19 63,0 52,0 1,15 425
4 x 2,5 0,5 1,2 10,0 8,87 24,0 21,0 0,287 170
4 x 4 0,6 1,4 12,0 5,52 32,0 28,0 0,460 255
4 x 6 0,6 1,4 13,2 3,69 41,0 36,0 0,690 340
4 x 10 0,7 1,4 16,0 2,19 57,0 50,0 1,15 530
4 x 16 0,7 1,4 20,0 1,38 76,0 68,0 1,84 860
4 x 25 0,9 1,6 25,0 0,870 96,0 80,0 2,88 1350
4 x 35 0,9 1,6 26,2 0,627 119,0 99,0 4,02 1720
5 x 1,5 0,5 1,2 10,0 14,5 17,5 15,5 0,172 145
5 x 2,5 0,5 1,2 10,8 8,87 24,0 21,0 0,287 200
5 x 4 0,6 1,4 13,2 5,52 32,0 28,0 0,460 300
5 x 6 0,6 1,4 14,5 3,69 41,0 36,0 0,690 405
5 x 10 0,7 1,4 17,4 2,19 57,0 50,0 1,15 630
5 x 16 0,7 1,6 22,3 1,38 76,0 68,0 1,84 1040
5 x 25 0,9 1,6 27,0 0,870 96,0 80,0 2,88 1620
7 x 1,5 0,5 1,2 10,5 14,5 17,5 15,5 0,172 180
7 x 2,5 0,5 1,4 11,8 8,87 24,0 21,0 0,287 225



Packaging & Shipping

 Nhmh Electric Wire 300/500V Cu/Hf/Hffr/Hffr DIN VDE 0250-215



Our Services



We are glad to offer free samples for testing, please feel free to talk with us.



Company Information

Nhmh Electric Wire 300/500V Cu/Hf/Hffr/Hffr DIN VDE 0250-215Nhmh Electric Wire 300/500V Cu/Hf/Hffr/Hffr DIN VDE 0250-215Nhmh Electric Wire 300/500V Cu/Hf/Hffr/Hffr DIN VDE 0250-215Nhmh Electric Wire 300/500V Cu/Hf/Hffr/Hffr DIN VDE 0250-215Nhmh Electric Wire 300/500V Cu/Hf/Hffr/Hffr DIN VDE 0250-215Nhmh Electric Wire 300/500V Cu/Hf/Hffr/Hffr DIN VDE 0250-215



FAQ



1. Are you a manufacturer?

Yes, we are a manufacturer. Jiangsu Baoan Cable  Co., Ltd. Is factory. Mainly responsible for the import and export business.



2. What are your main products?

Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.



3. Is the quality of your products guaranteed?

Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.



4. How can I get samples?

Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.



5.What is your waranty terms?

The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
