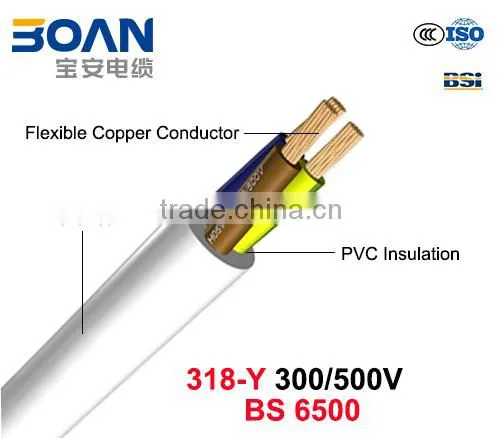

318-Y, Electric Wire, 300/500 V, Flexible Cu/PVC/PVC (BS 6500)
Application
For use in household appliances such as washing machines, spin dryers and refrigerators. Generally unsuitable for outdoor use or industrial applications.
Standards BS6500, CENELEC HD21.5, VDE 281
Technical Data
Conductor Class 5 flexible plain copper conductors to BS EN 60228: 2005 (previously BS6360)
Insulation PVC (Polyvinyl Chloride) to BS7655
Sheath PVC (Polyvinyl Chloride) to BS7655
Voltage Rating 300/500V
Temperature Rating 0° C to +60° C
Minimum Bending Radius 6 x overall diameter
| No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Weight |
| # x mm² | mm | mm | kg/Km |
| 2 x 0.75 | 0.6 | 6.20 | 54.2 |
| 2 x 1.00 | 0.6 | 6.40 | 60.5 |
| 2 x 1.50 | 0.7 | 7.40 | 82.3 |
| 2 x 2.50 | 0.8 | 9.20 | 129.1 |
| 3 x 0.75 | 0.6 | 6.60 | 65.0 |
| 3 x 1.00 | 0.6 | 6.80 | 73.1 |
| 3 x 1.50 | 0.7 | 8.10 | 104.4 |
| 3 x 2.50 | 0.8 | 10.00 | 163.0 |
| 3 x 4.00 | 0.8 | 11.30 | 224.0 |
| 4 x 0.75 | 0.6 | 7.10 | 77.7 |
| 4 x 1.00 | 0.6 | 7.60 | 93.0 |
| 4 x 1.50 | 0.7 | 9.00 | 131.7 |
| 4 x 2.50 | 0.8 | 10.90 | 199.6 |
| 5 x 0.75 | 0.6 | 8.00 | 97.3 |
| 5 x 1.00 | 0.6 | 8.30 | 111.7 |
| 5 x 1.50 | 0.7 | 10.00 | 163.1 |
We are glad to offer free samples for testing, please feel free to talk with us.
1. Are you a manufacturer?
Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.
2. What are your main products?
Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.
3. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.
4. How can I get samples?
Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.
5.What is your waranty terms?
The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
