H07z-U electric wire 450/750v Cu/Lszh low smoke halogen free cable HD 22.9
- 50000000 Inch / Inches per Month
- Shanghai
- T/T Credit Card
- NF24Q100-01 Carlisle Tensolite Aviation cables
- GSC-13-84943-07 GORE Aviation fiber optic transmission cable
- RCN8687 GORE Advantage products RCN8687 8989 9053
- TE 10612-24-9 Cheminax Spot inventory can be shipped at any time
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Boan | Model Number: | H07z-U |
Type: | Insulated | Application: | Other, Power Switchgear | Conductor Material: | Copper |
Conductor Type: | Stranded | Insulation Material: | Other, Lszh |
Product Description

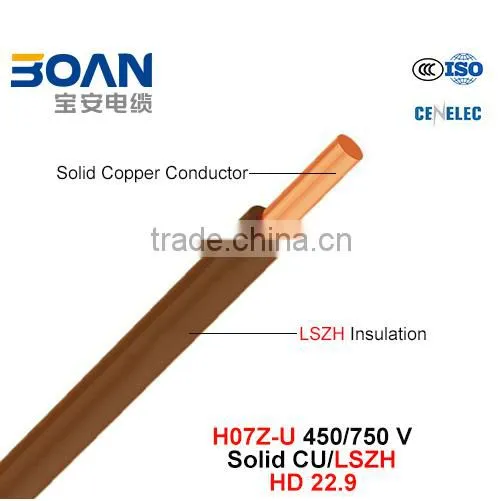

H07Z-U, Electric Wire, 450/7500 V, CU/LSZH, Low Smoke Halogen Free Cable (HD 22.9) Single core non-sheathed cables with low emission of smoke and corrosive gases
CONSTRUCTION
Conductors: annealed copper conductor acc. to EN 60228: Insulation: special thermosetting low smoke zero halogen compound type EI5 acc. to EN 50363-5
Colour of insulation: green/yellow, blue, black, brown or other colours
CHARACTERISTIC Maximum conductor operating temperature: +90oC
Lowest ambient temperature for fixed installation: -40oC
Lowest installation temperature: -5oC
Maximum short-circuit conductor temperature: +250oC
Test voltage: 2500V
Flame propagation: EN 60332-1-2 (IEC 60332-1) EN 60332-3-24 (IEC 60332-3-24)
Smoke emission: EN 61034-2 (IEC 61034-2)
Corrosive and acid gas emission of insulation: EN 50267-2-2 (IEC 60754-2): pH 4,3; Conductivity: 10 S/mm
APPLICATIONS
Single core, non-sheathed cables are suitable particularly for situations in which low emission of smoke and corrosive gases is required in the case of burning.
H07Z-U, H07Z-R, H07Z-K - single core, non-sheathed cables are intended for installation in surface mounted or embedded conduits, or similar closed systems. Suitable for fixed protected installation in, or on, lighting and control gear for voltages up to 1000 V a.c. or, up to 750V d.c .to earth
Number and cross- sectional area of conductor | Approximate overall diameter | Approximate net weight of cables | Maximum conductor resistance at temperature 20ºC | Minimum insulation resistance at temperature 90ºC |
n x mm2 | mm | kg/km | Ω/km | ΩM .km |
H07Z-U | ||||
1,5 | 2,76 | 19 | 12,1 | 0,011 |
2,5 | 3,34 | 30 | 7,41 | 0,010 |
4 | 3,8 | 45 | 4,61 | 0,0085 |
6 | 4,29 | 63 | 3,08 | 0,0070 |
10 | 5,48 | 105 | 1,83 |
We are glad to offer free samples for testing, please feel free to talk with us.
1. Are you a manufacturer?
Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.
2. What are your main products?
Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.
3. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.
4. How can I get samples?
Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.
5.What is your waranty terms?
The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
