Lihch Data Cable 300/500V Flexible Cu/Frnc/Petp/Tcwb/Frnc DIN VDE 0812

Name: Lihch Data Cable 300/500V Flexible Cu/Frnc/Petp/Tcwb/Frnc DIN VDE 0812
Brand: Boan
SKU: 116458013
Availability: InStock

Lihch Data Cable 300/500V Flexible Cu/Frnc/Petp/Tcwb/Frnc DIN VDE 0812 thumbnail-1

Lihch Data Cable 300/500V Flexible Cu/Frnc/Petp/Tcwb/Frnc DIN VDE 0812 photo-1

US$ 0.3 - 3 MOQ: 500 Inches

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Boan

Model Number:

LiHCH

Contact Supplier Request Quote Chat Now

Jiangsu Boan Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Boan

Model Number LiHCH

Insulation Material Other, Frnc

Type Low Voltage

Application Other, Data

Conductor Material Copper

Jacket Other, Frnc

Product Description

LiHCH, Data Cable, 300/500 V, Flexible Cu/FRNC/Petp/Tcwb/FRNC (DIN VDE 0812)

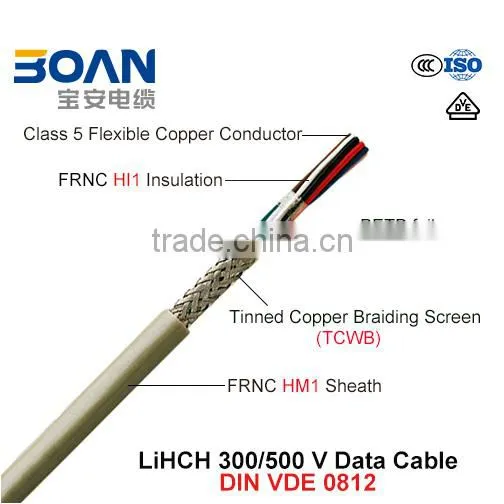

Screened FRNC electronic cable LiHCH

conductor material: bare copper conductor construction: fine stranded, class 5 insulation: FRNC compound HI1 screen: Cu-braiding sheathing material: FRNC-compound HM1 flame retardant: VDE 0482-332-1-2/IEC 60332-1 halogen free: DIN EN 50267/IEC 60754 max. operating temperature, fixed: -30- +70 °C bending radius, fixed installation: 7,5 x DA bending radius, moved application: 15 x DA

operating capacity: 120 nF/km nominal voltage Uo: 250 V core identification: colours acc. DIN 47100

Application:

For signal transmission between electronic devices, in computer systems or process control units with increased requirements to electromagnetic compatibility.

AWG	Nominal Cross Sectional Area	Nominal Overall Diameter	Copper Weight	Cable Weight
	# x mm²	mm	kg / km	kg / km
26(18/38)	2x0.14	3.9	8	21
26(18/38)	3x0.14	4.2	11	26
26(18/38)	4x014	4.5	12.5	28
26(18/38)	5x0.14	4.8	13.5	33
26(18/38)	6x0.14	5.1	15.5	37
26(18/38)	7x0.14	5.1	17	40
26(18/38)	8x0.14	5.5	19.5	46
26(18/38)	9x0.14	5.9	23	50
26(18/38)	10x0.14	6	26	55
26(18/38)	12x0.14	6.3	30	64
26(18/38)	16x0.14	7.4	40	84
26(18/38)	20x0.14	8.2	46	98
26(18/38)	25x0.14	8.6	55	125
24(14/34)	2x0.25	4.3	12	29
24(14/34)	3x0.25	4.5	14.7	30
24(14/34)	4x0.25	4.9	17	38
24(14/34)	5x0.25	5.3	21.2	43
24(14/34)	6x0.25	5.7	23.5	48
24(14/34)	7x0.25	5.7	27.5	51
24(14/34)	8x0.25	6.5	29.8	58
24(14/34)	9x0.25	7	34.9	64
24(14/34)	10x0.25	7.2	39.5	70
24(14/34)	12x0.25	7.4	46	83
24(14/34)	16x0.25	8.1	55.3	102
24(14/34)	20x0.25	9	66.1	121
24(14/34)	25x0.25	10.1	81	145
22(7/30)	2 X 0.34	4.9	16	31
22(7/30)	3 X 0.34	5.1	19	37
22(7/30)	4 X 0.34	5.5	25	48
22(7/30)	5 X 0.34	6.2	30	58
22(7/30)	6 X 0.34	6.5	34	67
22(7/30)	7 X 0.34	6.9	37	76
22(7/30)	8 X 0.34	7.6	46	95
22(7/30)	10 X 0.34	8.9	62	110
22(7/30)	12 X 0.34	9.1	68	123
22(7/30)	14 X 0.34	9.4	82	140
22(7/30)	16 X 0.34	9.9	95	156
22(7/30)	18 X 0.34	10.4	107	171
22(7/30)	21 X 0.34	11.3	122	195
22(7/30)	25 X 0.34	12.5	141	226
22(7/30)	30 X 0.34	13.1	162	260
22(7/30)	34 X 0.34	13.9	177	284
22(7/30)	40 X 0.34	14.8	202	329
20(16/32)	2 X 0.5	5.2	22	37
20(16/32)	3 X 0.5	5.5	30	46
20(16/32)	4 X 0.5	6.1	34	57
20(16/32)	5 X 0.5	6.9	52	77
20(16/32)	6 X 0.5	7.1	60	85
20(16/32)	7 X 0.5	7.3	65	92
20(16/32)	8 X 0.5	8.3	76	113
20(16/32)	10 X 0.5	9.4	88	135
20(16/32)	12 X 0.5	9.7	98	147
20(16/32)	18 X 0.5	11.1	141	210
20(16/32)	21 X 0.5	12.2	161	241
20(16/32)	25 X 0.5	13.5	186	284
20(16/32)	30 X 0.5	14.5	223	339
20(16/32)	40 X 0.5	16.5	293	443
18(24/32)	2 X 0.75	5.9	31	45
18(24/32)	3 X 0.75	6.3	37	60
18(24/32)	4 X 0.75	7.1	58	80
18(24/32)	5 X 0.75	7.6	68	97
18(24/32)	7 X 0.75	8.5	88	126
18(24/32)	10 X 0.75	10.5	122	174
18(24/32)	12 X 0.75	11.2	137	195
17(32/32)	2 X 1.0	6.5	43	71
17(32/32)	3 X 1.0	7.0	57	89
17(32/32)	4 X 1.0	7.5	68	109
17(32/32)	5 X 1.0	8.2	79	126
17(32/32)	7 X 1.0	8.8	118	171
16(30/30)	2 X 1.5	7.7	58	91
16(30/30)	3 X 1.5	8.1	74	115
16(30/30)	4 X 1.5	8.7	107	153
16(30/30)	5 X 1.5	9.5	129	176
16(30/30)	7 X 1.5	10.7	164	220
