Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Boan | Model Number: | Liycy |
Insulation Material: | PVC | Type: | Low Voltage | Application: | Other, Data |
Conductor Material: | Copper | Jacket: | PVC |
Product Description
LiYCY, Data Cable, 300/500 V, Flexible CU/PVC/PETP/TCWB/PVC (DIN VDE 0812)

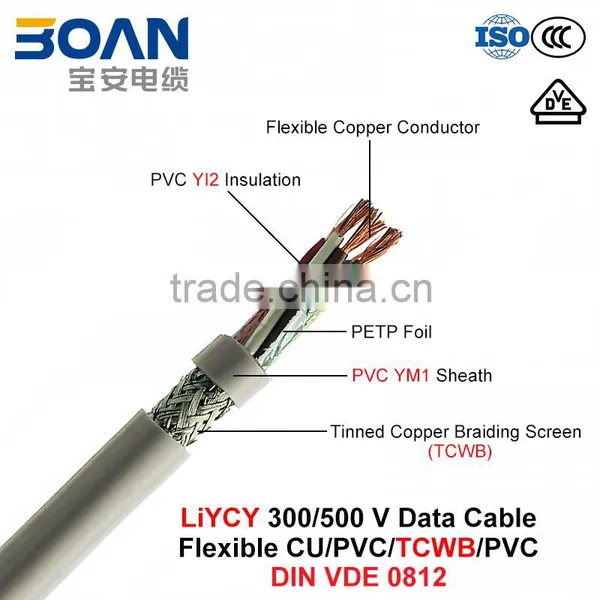

Construction:
Conductor: Bare copper strands with reference to DIN VDE 0812
Insulation: PVC, YI2 acc. To DIN VDE 0207 part 4
Colour code: With reference to DIN 47100
Stranding: In layers
Wrapping: PETP foil
Screen: Tinned Copper Braiding
Sheath material: PVC, YM1 acc. To DIN VDE 0207 part 5
Sheath colour: Grey (RAL 7032)
Features:
Good EMC characteristic
Flexible
Small outer diameter
Small bending radius
Technical data:
Peak operating voltage: < 0, 25 mm2 = max. 350 V
≥ 0, 25 mm2 = max. 500 V
Testing voltage: < 0, 25 mm2 = 800 V
≥ 0, 25 mm2 = 1200 V
Min. Bending radius
Fixed laying: 5 x d
Flexible application: 10 x d
Radiation resistance: 8 x 107 cJ/kg
Temperature range
Fixed laying: -30/+70 ° C
Flexible application: -5/+70 ° C
Fire performance: Flame retardant and self-extinguishing acc. To IEC 60332-1-2 + EN 60332-1-2
Absence of acc. To RoHS directive of the European Union
no. of cores x cross section | Outer Diameter | copper figure | cable weight |
n x mm2 | mm | kg/km | kg/km |
2 x 0,14 | 3,6 | 12,6 | 18 |
3 x 0,14 | 3,8 | 14,1 | 21 |
4 x 0,14 | 4,0 | 15,9 | 24 |
5 x 0,14 | 4,3 | 19,5 | 29 |
6 x 0,14 | 4,6 | 22,0 | 33 |
7 x 0,14 | 4,6 | 24,0 | 33 |
8 x 0,14 | 5,4 | 26,0 | 44 |
10 x 0,14 | 5,8 | 29,0 | 47 |
12 x 0,14 | 6,2 | 32,0 | 55 |
14 x 0,14 | 6,4 | 35,0 | 61 |
16 x 0,14 | 6,7 | 49,0 | 69 |
18 x 0,14 | 7,0 | 54,0 | 75 |
20 x 0,14 | 7,3 | 58,0 | 82 |
21 x 0,14 | 7,6 | 60,0 | 87 |
24 x 0,14 | 8,0 | 74,0 | 92 |
25 x 0,14 | 8,6 | 78,0 | 102 |
27 x 0,14 | 8,6 | 85,0 | 106 |
30 x 0,14 | 8,8 | 98,0 | 116 |
32 x 0,14 | 9,1 | 108,0 | 122 |
36 x 0,14 | 9,4 | 117,0 | 133 |
40 x 0,14 | 10,0 | 126,0 | 148 |
44 x 0,14 | 10,6 | 138,0 | 168 |
48 x 0,14 | 10,8 | 145,0 | 177 |
50 x 0,14 | 11,0 | 150,0 | 183 |
52 x 0,14 | 11,0 | 155,0 | 187 |
56 x 0,14 | 11,3 | 166,0 | 202 |
61 x 0,14 | 11,6 | 176,0 | 213 |
1 x 0,25 | 2,7 | 8,0 | 13 |
2 x 0,25 | 3,9 | 15,0 | 23 |
3 x 0,25 | 4,1 | 18,0 | 26 |
4 x 0,25 | 4,4 | 22,0 | 31 |
5 x 0,25 | 4,9 | 25,0 | 38 |
6 x 0,25 | 5,3 | 30,0 | 45 |
7 x 0,25 | 5,3 | 32,0 | 46 |
8 x 0,25 | 6,1 | 35,0 | 59 |
9 x 0,25 | 6,5 | 39,0 | 67 |
10 x 0,25 | 6,6 | 42,0 | 65 |
12 x 0,25 | 6,8 | 50,0 | 73 |
14 x 0,25 | 7,1 | 64,0 | 81 |
15 x 0,25 | 7,4 | 68,0 | 90 |
16 x 0,25 | 7,4 | 71,0 | 91 |
18 x 0,25 | 7,8 | 80,0 | 102 |
20 x 0,25 | 8,5 | 96,0 | 117 |
21 x 0,25 | 8,8 | 105,0 | 125 |
24 x 0,25 | 9,3 | 115,0 | 133 |
25 x 0,25 | 9,5 | 117,0 | 139 |
27 x 0,25 | 9,5 | 120,0 | 145 |
30 x 0,25 | 9,8 | 132,0 | 157 |
32 x 0,25 | 10,1 | 138,0 | 166 |
36 x 0,25 | 10,7 | 152,0 | 195 |
40 x 0,25 | 11,3 | 164,0 | 217 |
44 x 0,25 | 11,8 | 180,0 | 229 |
48 x 0,25 | 12,4 | 209,0 | 254 |
50 x 0,25 | 12,7 | 222,0 | 262 |
52 x 0,25 | 12,7 | 234,0 | 269 |
56 x 0,25 | 13,0 | 259,0 | 288 |
61 x 0,25 | 13,4 | 287,0 | 306 |
2 x 0,34 | 4,5 | 17,0 | 29 |
3 x 0,34 | 4,9 | 21,0 | 35 |
4 x 0,34 | 5,3 | 25,0 | 43 |
5 x 0,34 | 5,7 | 30,0 | 52 |
6 x 0,34 | 6,4 | 37,0 | 64 |
7 x 0,34 | 6,4 | 42,0 | 65 |
8 x 0,34 | 7,2 | 45,0 | 81 |
10 x 0,34 | 7,8 | 63,0 | 89 |
12 x 0,34 | 8,0 | 70,0 | 100 |
14 x 0,34 | 8,8 | 78,0 | 121 |
16 x 0,34 | 9,2 | 87,0 | 134 |
18 x 0,34 | 9,7 | 108,0 | 150 |
20 x 0,34 | 10,1 | 124,0 | 163 |
21 x 0,34 | 10,7 | 127,0 | 185 |
24 x 0,34 | 11,3 | 140,0 | 200 |
27 x 0,34 | 11,5 | 151,0 | 216 |
30 x 0,34 | 11,9 | 162,0 | 233 |
32 x 0,34 | 12,7 | 171,0 | 257 |
36 x 0,34 | 13,2 | 188,0 | 285 |
40 x 0,34 | 14,0 | 208,0 | 316 |
42 x 0,34 | 14,0 | 215,0 | 326 |
44 x 0,34 | 14,6 | 223,0 | 334 |
48 x 0,34 | 14,8 | 243,0 | 355 |
50 x 0,34 | 15,8 | 248,0 | 402 |
52 x 0,34 | 15,8 | 273,0 | 412 |
56 x 0,34 | 16,2 | 292,0 | 437 |
61 x 0,34 | 16,7 | 316,0 | 464 |
1 x 0,50 | 3,2 | 13,3 | 19 |
2 x 0,50 | 5,0 | 23,5 | 36 |
3 x 0,50 | 5,2 | 28,4 | 42 |
4 x 0,50 | 5,6 | 35,1 | 51 |
5 x 0,50 | 6,3 | 41,6 | 64 |
6 x 0,50 | 6,8 | 48,3 | 75 |
7 x 0,50 | 6,8 | 53,1 | 78 |
8 x 0,50 | 7,8 | 62,0 | 99 |
10 x 0,50 | 8,8 | 74,5 | 115 |
12 x 0,50 | 9,0 | 84,2 | 128 |
14 x 0,50 | 9,4 | 93,5 | 143 |
16 x 0,50 | 9,9 | 105,9 | 162 |
18 x 0,50 | 10,6 | 133,9 | 191 |
20 x 0,50 | 11,1 | 143,8 | 208 |
21 x 0,50 | 11,6 | 154,9 | 224 |
24 x 0,50 | 12,6 | 169,7 | 248 |
25 x 0,50 | 12,8 | 174,6 | 256 |
27 x 0,50 | 12,8 | 184,2 | 269 |
30 x 0,50 | 13,2 | 203,6 | 293 |
32 x 0,50 | 13,7 | 213,5 | 311 |
36 x 0,50 | 14,2 | 239,0 | 344 |
40 x 0,50 | 15,8 | 289,4 | 416 |
42 x 0,50 | 15,8 | 299,0 | 429 |
50 x 0,50 | 17,0 | 349,7 | 487 |
52 x 0,50 | 17,0 | 359,3 | 500 |
61 x 0,50 | 18,0 | 403,7 | 565 |
1 x 0,75 | 3,5 | 15,7 | 22 |
2 x 0,75 | 5,6 | 30,3 | 45 |
3 x 0,75 | 6,1 | 37,6 | 56 |
4 x 0,75 | 6,6 | 46,5 | 68 |
5 x 0,75 | 7,1 | 55,7 | 83 |
6 x 0,75 | 7,7 | 66,8 | 99 |
7 x 0,75 | 7,7 | 74,0 | 103 |
8 x 0,75 | 9,2 | 83,8 | 136 |
10 x 0,75 | 10,0 | 101,1 | 150 |
12 x 0,75 | 10,5 | 133,9 | 183 |
14 x 0,75 | 11,0 | 148,5 | 203 |
16 x 0,75 | 11,5 | 169,2 | 231 |
18 x 0,75 | 12,4 | 184,0 | 264 |
21 x 0,75 | 13,6 | 211,0 | 307 |
24 x 0,75 | 14,4 | 239,1 | 333 |
27 x 0,75 | 14,7 | 260,9 | 363 |
30 x 0,75 | 15,8 | 313,4 | 428 |
32 x 0,75 | 16,3 | 328,3 | 453 |
36 x 0,75 | 16,9 | 357,8 | 496 |
1 x 1,00 | 3,6 | 18,2 | 25 |
2 x 1,00 | 5,8 | 35,2 | 50 |
3 x 1,00 | 6,3 | 46,4 | 64 |
4 x 1,00 | 6,8 | 57,9 | 79 |
5 x 1,00 | 7,4 | 69,6 | 96 |
6 x 1,00 | 8,0 | 81,3 | 113 |
7 x 1,00 | 8,0 | 90,9 | 120 |
1 x 1,50 | 3,8 | 24,7 | 31 |
2 x 1,50 | 6,5 | 46,5 | 68 |
3 x 1,50 | 6,8 | 62,7 | 79 |
4 x 1,50 | 7,4 | 79,2 | 98 |
5 x 1,50 | 8,6 | 95,8 | 131 |
6 x 1,50 | 9,3 | 112,7 | 155 |
7 x 1,50 | 9,3 | 127,1 | 164 |
