Liyy Tp Data Cable 300/500V Flexible Cu/PVC/Petp/PVC Twisted Pairs DIN VDE 0812

Name: Liyy Tp Data Cable 300/500V Flexible Cu/PVC/Petp/PVC Twisted Pairs DIN VDE 0812
Brand: Boan
SKU: 116457945
Availability: InStock

Liyy Tp Data Cable 300/500V Flexible Cu/PVC/Petp/PVC Twisted Pairs DIN VDE 0812 thumbnail-1

Liyy Tp Data Cable 300/500V Flexible Cu/PVC/Petp/PVC Twisted Pairs DIN VDE 0812 photo-1

US$ 1 - 5 MOQ: 500 Inches

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Boan

Model Number:

Liyy-TP

Contact Supplier Request Quote Chat Now

Jiangsu Boan Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Boan

Model Number Liyy-TP

Insulation Material PVC

Type Low Voltage

Application Other, Data

Conductor Material Copper

Jacket PVC

Product Description

LiYY PVC data cable

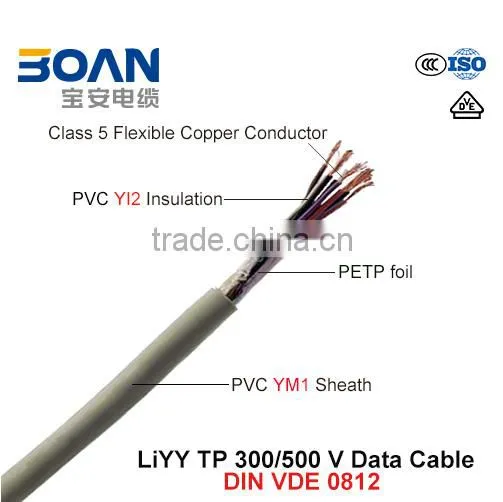

Construction:

Conductor: Bare copper strands with reference to DIN VDE 0812

Insulation: PVC, YI2 acc. To DIN VDE 0207 part 4

Colour code: With reference to DIN 47100

Stranding: In layers

Sheath material: PVC, YM1 acc. To DIN VDE 0207 part 5

Sheath colour: Grey (RAL 7032)

Outstanding features:

Flexible

Small outer diameter

Small bending radius

Technical data:

Peak operating voltage: < 0, 25 mm2 = max. 350 V ≥ 0, 25 mm2 = max. 500 V

Testing voltage: < 0, 25 mm2 = 800 V ≥ 0, 25 mm2 = 1200 V Min.

Bending radius Fixed laying: 5 x d

Flexible application: 10 x d

Capacitance: See page N/8

Radiation resistance: 8 x 107 cJ/kg

Temperature range Fixed laying: -30/+70 ° C

Flexible application: -5/+70 ° C

Fire performance:

Flame retardant and self-extinguishing acc. To IEC 60332-1-2 + EN 60332-1-2

Absence of acc. To RoHS directive of the European Union

no. of cores x cross section	Outer Diameter	copper figure	cable weight
n x mm2	mm	kg/km	kg/km
3 x 2 x 0,14	4,9	8,1	27
4 x 2 x 0,14	5,5	10,8	34
5 x 2 x 0,14	6,2	13,4	43
6 x 2 x 0,14	6,4	16,1	50
8 x 2 x 0,14	7,0	21,5	59
10 x 2 x 0,14	7,7	26,9	71
12 x 2 x 0,14	8,9	32,3	87
14 x 2 x 0,14	9,4	37,6	98
16 x 2 x 0,14	9,7	43,0	110
18 x 2 x 0,14	10,1	48,4	120
20 x 2 x 0,14	10,1	53,8	125
24 x 2 x 0,14	11,4	64,5	148
25 x 2 x 0,14	11,4	67,2	153
26 x 2 x 0,14	11,7	69,9	170
28 x 2 x 0,14	11,7	75,3	167
30 x 2 x 0,14	12,8	80,6	189
32 x 2 x 0,14	13,1	86,0	202
36 x 2 x 0,14	13,6	96,8	223
40 x 2 x 0,14	13,9	107,5	244
50 x 2 x 0,14	15,8	134,4	303
52 x 2 x 0,14	15,8	139,8	312
2 x 2 x 0,25	4,9	9,6	27
3 x 2 x 0,25	5,4	14,4	36
4 x 2 x 0,25	6,4	19,2	50
5 x 2 x 0,25	6,9	24,0	57
6 x 2 x 0,25	7,1	28,8	65
7 x 2 x 0,25	7,3	33,6	71
8 x 2 x 0,25	7,8	38,4	80
10 x 2 x 0,25	9,0	48,0	108
12 x 2 x 0,25	9,9	57,6	121
14 x 2 x 0,25	10,5	67,2	134
16 x 2 x 0,25	10,9	76,8	152
18 x 2 x 0,25	11,3	86,4	168
24 x 2 x 0,25	13,2	115,2	222
40 x 2 x 0,25	16,0	192,0	363
2 x 2 x 0,34	5,8	13,1	37
3 x 2 x 0,34	6,6	19,6	53
4 x 2 x 0,34	7,6	26,1	70
5 x 2 x 0,34	8,7	32,6	92
6 x 2 x 0,34	8,9	39,2	104
7 x 2 x 0,34	9,2	45,7	105
8 x 2 x 0,34	9,8	52,2	118
10 x 2 x 0,34	10,8	65,3	142
12 x 2 x 0,34	12,4	78,3	178
14 x 2 x 0,34	13,1	91,4	201
18 x 2 x 0,34	14,1	117,5	253
24 x 2 x 0,34	16,4	156,7	331
2 x 2 x 0,50	6,4	19,2	47
3 x 2 x 0,50	7,1	28,8	64
4 x 2 x 0,50	8,6	38,4	87
5 x 2 x 0,50	9,4	48,0	105
6 x 2 x 0,50	9,6	57,6	120
7 x 2 x 0,50	9,9	67,2	128
8 x 2 x 0,50	10,6	76,8	146
10 x 2 x 0,50	11,8	96,0	174
12 x 2 x 0,50	13,4	115,2	216
14 x 2 x 0,50	14,6	134,4	259
18 x 2 x 0,50	15,3	172,8	311
24 x 2 x 0,50	17,8	230,4	406
2 x 2 x 0,75	7,3	28,8	63
3 x 2 x 0,75	8,6	43,2	87
4 x 2 x 0,75	9,9	57,6	118
5 x 2 x 0,75	10,7	72,0	140
6 x 2 x 0,75	11,1	86,4	164
7 x 2 x 0,75	11,4	100,8	173
8 x 2 x 0,75	12,7	115,2	207
10 x 2 x 0,75	14,0	144,0	251
12 x 2 x 0,75	15,9	172,8	309
14 x 2 x 0,75	16,8	201,6	351
18 x 2 x 0,75	18,1	259,2	443
24 x 2 x 0,75	20,6	345,6	559

Packaging & Shipping

Our Services

We are glad to offer free samples for testing, please feel free to talk with us.

FAQ

1. Are you a manufacturer?

Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.

2. What are your main products?

Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.

3. Is the quality of your products guaranteed?

Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.

4. How can I get samples?

Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.

5.What is your waranty terms?

The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
