Lihh Tp Data Cable 300/500V Flexible Cu/Hffr/Petp/Hffr Twisted Pairs DIN VDE 0812
- 50000000 Meter / Meters per Month
- Shanghai
- T/T D/P D/A Credit Card
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Boan | Model Number: | Lihh Tp |
Insulation Material: | Other, Hffr | Type: | Low Voltage | Application: | Other, Data |
Conductor Material: | Copper | Jacket: | Other, Hffr |
Product Description
Lihh Tp, Data Cable, 300/500 V, Flexible Cu/Hffr/Petp/Hffr Twisted Pairs (DIN VDE 0812)
HFFR Twisted Pair Signal, Control Cables
APPLICATION:
These cable are used to electronic control systems connection, voice frequency transmission, signal and communication cables Halogen free cables have flame retardant properties and low smoke density.

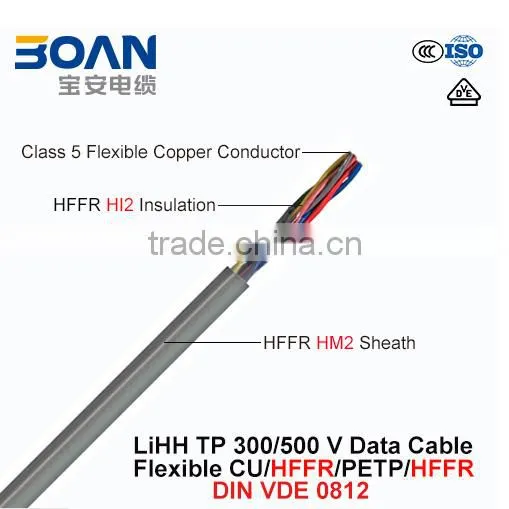

CONSTRUCTION:
1-Inner Conductor: Electrolytic stranded annealed copper wire (IEC 60228, VDE0295, HD383, Class 5)
2-Insulation: HFFR Insulation (EN 50290-2-26, VDE0207-HI2)
3-Lay-Up: According to DIN 47100 colors insulated cores twisted in layers, twisted pair cores are twisted in layer.
4-Outer Sheath: HFFR (EN 50290-2-27, VDE0207-HM2), RAL 7001, Grey
N x 2 x mm² | Cable Diameter(mmØ) | Copper Weight(kg/km) | Total Weight(kg/km) |
2x2x0,14 | 5,2 | 5,4 | 24 |
3x2x0,14 | 5,4 | 8,1 | 30 |
4x2x0,14 | 5,9 | 10,8 | 36 |
5x2x0,14 | 6,7 | 13,4 | 44 |
6x2x0,14 | 7,0 | 16,1 | 53 |
7x2x0,14 | 7,0 | 18,8 | 58 |
8x2x0,14 | 7,7 | 21,5 | 66 |
10x2x0,14 | 8,9 | 26,9 | 84 |
12x2x0,14 | 9,3 | 32,3 | 96 |
2x2x0,22 | 5,5 | 8,4 | 28 |
3x2x0,22 | 5,8 | 12,7 | 36 |
4x2x0,22 | 6,4 | 16,9 | 45 |
5x2x0,22 | 7,4 | 21,1 | 58 |
6x2x0,22 | 7,5 | 25,3 | 66 |
7x2x0,22 | 7,5 | 29,6 | 73 |
8x2x0,22 | 8,3 | 33,8 | 83 |
10x2x0,22 | 9,6 | 42,2 | 105 |
12x2x0,22 | 10,0 | 50,7 | 121 |
2x2x0,34 | 6,0 | 13,1 | 36 |
3x2x0,34 | 6,4 | 19,6 | 47 |
4x2x0,34 | 7,0 | 26,1 | 58 |
5x2x0,34 | 8,2 | 32,6 | 75 |
6x2x0,34 | 8,3 | 39,2 | 86 |
7x2x0,34 | 8,3 | 45,7 | 96 |
8x2x0,34 | 9,1 | 52,2 | 109 |
10x2x0,34 | 10,6 | 65,3 | 138 |
12x2x0,34 | 11,0 | 78,3 | 160 |
2x2x0,50 | 7,5 | 19,2 | 51 |
3x2x0,50 | 7,9 | 28,8 | 67 |
4x2x0,50 | 8,7 | 38,4 | 84 |
5x2x0,50 | 10,1 | 48,0 | 107 |
6x2x0,50 | 10,3 | 57,6 | 122 |
7x2x0,50 | 10,3 | 67,2 | 136 |
8x2x0,50 | 11,5 | 76,8 | 161 |
10x2x0,50 | 13,1 | 96,0 | 196 |
12x2x0,50 | 13,8 | 115,2 | 234 |
We are glad to offer free samples for testing, please feel free to talk with us.
1. Are you a manufacturer?
Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.
2. What are your main products?
Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.
3. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.
4. How can I get samples?
Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.
5.What is your waranty terms?
The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
