Liyy Data Cable 300/500V Flexible Cu/PVC/PVC DIN VDE 0812

Name: Liyy Data Cable 300/500V Flexible Cu/PVC/PVC DIN VDE 0812
Brand: Boan
SKU: 116457937
Availability: InStock

Liyy Data Cable 300/500V Flexible Cu/PVC/PVC DIN VDE 0812 thumbnail-1

Liyy Data Cable 300/500V Flexible Cu/PVC/PVC DIN VDE 0812 photo-1

US$ 1 - 5 MOQ: 500 Inches

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Boan

Model Number:

Liyy

Contact Supplier Request Quote Chat Now

Jiangsu Boan Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Boan

Model Number Liyy

Insulation Material PVC

Type Low Voltage

Application Other, Data

Conductor Material Copper

Jacket PVC

Product Description

LiYY PVC data cable

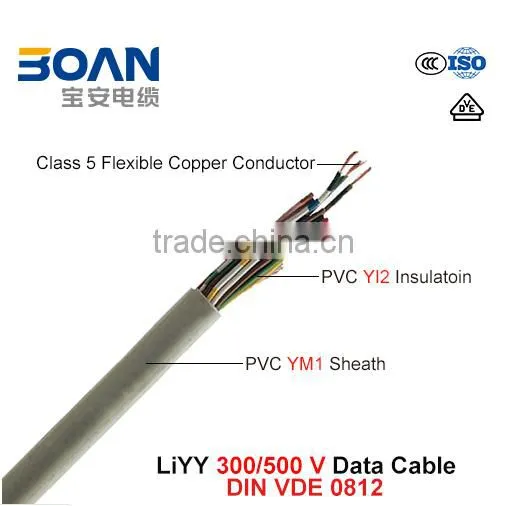

Construction:

Conductor: Bare copper strands with reference to DIN VDE 0812

Insulation: PVC, YI2 acc. To DIN VDE 0207 part 4

Colour code: With reference to DIN 47100

Stranding: In layers

Sheath material: PVC, YM1 acc. To DIN VDE 0207 part 5

Sheath colour: Grey (RAL 7032)

Outstanding features:

Flexible

Small outer diameter

Small bending radius

Technical data:

Peak operating voltage: < 0, 25 mm2 = max. 350 V ≥ 0, 25 mm2 = max. 500 V

Testing voltage: < 0, 25 mm2 = 800 V ≥ 0, 25 mm2 = 1200 V Min.

Bending radius Fixed laying: 5 x d

Flexible application: 10 x d

Capacitance: See page N/8

Radiation resistance: 8 x 107 cJ/kg

Temperature range Fixed laying: -30/+70 ° C

Flexible application: -5/+70 ° C

Fire performance:

Flame retardant and self-extinguishing acc. To IEC 60332-1-2 + EN 60332-1-2 Absence of acc. To RoHS directive of the European Union

no. of cores x cross section	Outer Diameter	copper figure	cable weight
n x mm2	mm	kg/km	kg/km
2 x 0,14	3,1	2,7	13
3 x 0,14	3,3	4,0	15
4 x 0,14	3,5	5,4	17
5 x 0,14	3,8	6,7	21
6 x 0,14	4,1	8,1	25
7 x 0,14	4,1	9,4	25
8 x 0,14	4,7	10,8	33
10 x 0,14	5,1	13,4	34
12 x 0,14	5,3	16,1	39
14 x 0,14	5,5	18,8	44
16 x 0,14	6,0	21,5	53
18 x 0,14	6,3	24,2	59
20 x 0,14	6,6	26,9	65
21 x 0,14	6,9	28,2	69
24 x 0,14	7,3	32,3	73
25 x 0,14	7,7	33,6	79
27 x 0,14	7,7	36,3	83
30 x 0,14	7,9	40,3	90
32 x 0,14	8,2	43,0	97
36 x 0,14	8,5	48,4	107
40 x 0,14	9,1	53,8	119
44 x 0,14	9,5	59,1	126
48 x 0,14	10,1	64,5	144
50 x 0,14	10,3	67,2	149
52 x 0,14	10,3	69,9	154
56 x 0,14	10,6	75,3	165
61 x 0,14	10,9	82,0	175
2 x 0,25	3,4	4,8	16
3 x 0,25	3,6	7,2	20
4 x 0,25	3,9	9,6	24
5 x 0,25	4,2	12,0	29
6 x 0,25	4,6	14,4	34
7 x 0,25	4,6	16,8	35
8 x 0,25	5,2	19,2	45
9 x 0,25	5,6	21,6	51
10 x 0,25	5,9	24,0	51
12 x 0,25	6,1	28,8	58
14 x 0,25	6,4	33,6	66
16 x 0,25	6,7	38,4	74
18 x 0,25	7,1	43,2	83
20 x 0,25	7,6	48,0	95
21 x 0,25	7,9	50,4	100
24 x 0,25	8,4	57,6	108
25 x 0,25	8,6	60,0	112
27 x 0,25	8,6	64,8	119
30 x 0,25	8,9	72,0	131
32 x 0,25	9,2	76,8	139
36 x 0,25	10,0	86,4	163
40 x 0,25	10,6	96,0	181
44 x 0,25	11,1	105,6	192
48 x 0,25	11,3	115,2	206
50 x 0,25	11,6	120,0	214
52 x 0,25	11,6	124,8	221
56 x 0,25	11,9	134,4	237
61 x 0,25	12,3	146,4	254
2 x 0,34	4,0	6,5	23
3 x 0,34	4,2	9,8	27
4 x 0,34	4,6	13,1	33
5 x 0,34	5,0	16,3	41
6 x 0,34	5,5	19,6	49
7 x 0,34	5,5	22,8	51
8 x 0,34	6,5	26,1	67
10 x 0,34	7,1	32,6	72
12 x 0,34	7,3	39,2	83
14 x 0,34	7,9	45,7	98
16 x 0,34	8,3	52,2	111
18 x 0,34	8,8	58,8	124
20 x 0,34	9,2	65,3	137
21 x 0,34	10,0	68,5	153
24 x 0,34	10,6	78,3	165
25 x 0,34	10,8	81,6	170
27 x 0,34	10,8	88,1	181
30 x 0,34	11,2	97,9	197
32 x 0,34	11,6	104,4	210
36 x 0,34	12,1	117,5	234
40 x 0,34	12,9	130,6	261
44 x 0,34	13,5	143,6	277
48 x 0,34	13,7	156,7	298
52 x 0,34	14,5	169,7	333
56 x 0,34	14,9	182,8	356
61 x 0,34	15,4	199,1	382
2 x 0,50	4,3	9,6	27
3 x 0,50	4,5	14,4	33
4 x 0,50	4,9	19,2	40
5 x 0,50	5,4	24,0	50
6 x 0,50	6,1	28,8	62
7 x 0,50	6,1	33,6	65
8 x 0,50	7,1	38,4	83
10 x 0,50	7,9	48,0	92
12 x 0,50	8,1	57,6	106
14 x 0,50	8,5	67,2	120
16 x 0,50	9,0	76,8	137
18 x 0,50	9,5	86,4	152
20 x 0,50	10,4	96,0	178
21 x 0,50	10,9	100,8	189
24 x 0,50	11,5	115,2	203
25 x 0,50	11,7	120,0	210
27 x 0,50	11,7	129,6	223
30 x 0,50	12,1	144,0	244
32 x 0,50	12,6	153,6	261
36 x 0,50	13,1	172,8	290
40 x 0,50	14,5	192,0	337
44 x 0,50	15,1	211,2	358
48 x 0,50	15,3	230,4	384
52 x 0,50	15,7	249,6	412
56 x 0,50	16,2	268,8	442
61 x 0,50	16,7	292,8	475
2 x 0,75	4,9	14,4	37
3 x 0,75	5,2	21,6	45
4 x 0,75	5,9	28,8	58
5 x 0,75	6,4	36,0	71
6 x 0,75	7,0	43,2	84
7 x 0,75	7,0	50,4	89
8 x 0,75	8,3	57,6	116
10 x 0,75	9,1	72,0	127
12 x 0,75	9,4	86,4	146
14 x 0,75	10,3	100,8	175
16 x 0,75	10,8	115,2	198
18 x 0,75	11,4	129,6	221
21 x 0,75	12,5	151,2	260
24 x 0,75	13,3	172,8	280
27 x 0,75	13,6	194,4	309
30 x 0,75	14,5	216,0	351
32 x 0,75	15,0	230,4	375
36 x 0,75	15,6	259,2	417
2 x 1,00	5,1	19,2	43
3 x 1,00	5,4	28,8	54
4 x 1,00	6,1	38,4	70
5 x 1,00	6,7	48,0	87
6 x 1,00	7,3	57,6	103
7 x 1,00	7,3	67,2	110
2 x 1,50	5,6	28,8	54
3 x 1,50	6,1	43,2	70
4 x 1,50	6,7	57,6	87
5 x 1,50	7,7	72,0	115
6 x 1,50	8,4	86,4	136
7 x 1,50	8,4	100,8	146

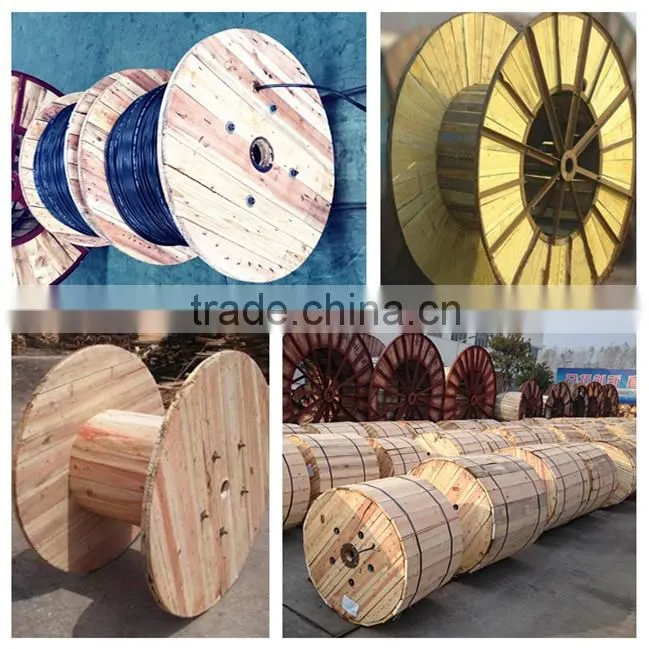

Packaging & Shipping

Our Services

We are glad to offer free samples for testing, please feel free to talk with us.

FAQ

1. Are you a manufacturer?

Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.

2. What are your main products?

Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.

3. Is the quality of your products guaranteed?

Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.

4. How can I get samples?

Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.

5.What is your waranty terms?

The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
