Home > Products > Grinding Mill > Raymond Mill,raymond grinding mill

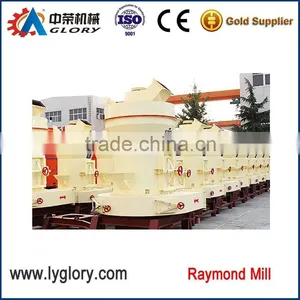

Raymond Mill,raymond grinding mill
- 50 Piece / Pieces per Month
- Qingdao Tianjin Shanghai or others
- T/T D/P D/A
Product Details
Condition: | New | Type: | Raymond Mill | Motor Type: | AC Motor |
Power(W): | Y280s-4-75 | Capacity(t/h): | 2-120t | Place of Origin: | Henan, China |
Brand Name: | Zhongrong | Model Number: | Raymond Mill as per specification | Dimension(L*W*H): | As per specification |
Weight: | As per specification | Certification: | ISO,CE, ISO, CE | Warranty: | One year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. ISO/CE approved2.Evener granularity
3. Less over crushed products
4. High product capacity
Product Introduce of Raymond Mill :
The device is designed based on the improvement of similar products in this industry and it adopts the advanced structure of the similar product in domestic and overseas. It takes small space, lower power consumption but has higher efficiency, and one-time investment is small compared with ball mill. The grinding roller presses on the grinding ring tightly under centrifugal force; so the output and the fineness of the final products are not affected when the roller and the ring are abraded. The replacement cycle of the roller and the ring is long. The airflow separation flow of this machine cyclically flows inside the air blower, mill case, cyclone separator and air blower, so there is less dust and the workshop is cleaner compared with high-speed centrifugal crusher.
Application Range of Raw Material Mill :
Raymond mill is used for grinding 280 kinds of materials in mining, metallurgy, chemical, building, etc. It is suitable for grinding non-flammable and non-explosive materials that hardness is below 9.3 and humidity less than 6% such as Barite, calcite, potash feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, plaster, glass, insulation materials etc. And the granularity of the final products can be adjusted between 80 and 325 meshes; fineness can reach 600 meshes.
Application Materials: barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite.
Working Principle of Raymond Mill:
When Raymond mill works, the materials that need to be crushed are fed into the machine through the feeding hopper. The grinding roll that hangs on the main engine will rotate around the vertical axis and rotates around itself. Due to the centrifugal force produced in the rotating process, the grinding roll will swings outward and tightly press onto the grinding ring to make the relieving tool scoop up the materials and send them to the space between the grinding roll and the grinding ring, and the materials will be crushed due to the rolling and grinding of the grinding roll.
Technical date of Raymond Mill :
Model | 4525 | 4119 |
Feeding Size(mm) | ≤30 | ≤25 |
Output Size(mm) | 0.125-0.044 | 0.125-0.044 |
Shift Output of different Material Fineness(t) | 16-176 | 8-78 |
Rotation Speed of Central Shaft(r/min) | 82 | 105 |
Ring Diameter(mm) | 1770 | 1400 |
Roller Diameter(mm) | 450 | 410 |
Roller Height(mm) | 250 | 190 |
Main Motor(kW) | Y315m-4-132 | Y280s-4-75 |
Fan Motor(kW) | Y315m-4-132 | Y250m-4-75 |
Analyzer Motor(kW) | Y160m-4-18.5 | YCT200-4B-7.5 |
More specification details please contact us directly.
Features:
1. Main gearing device is with sealing gearbox and belt, transmission smoothly and reliable operation
2. Raymond mill is vertical structure, so takes small space and easy to operate.
3. Compare with other grinding device, its screening ratio is high, even to 99%, no other device can reach.
4. The main parts use fine steel materials and the wear-resistant parts use high performance wear-resistant materials, so that the whole machine has high wear-resisting property and reliable operation.
5. The worn part is made of high manganese steel with long service life. Motor follows GB standard.
6. Easy to operate and repair The electrical system is centrally controlled, unmanned workshop can be realized and cost is saved for customer, and also the maintenance is convenient.
Process capacity

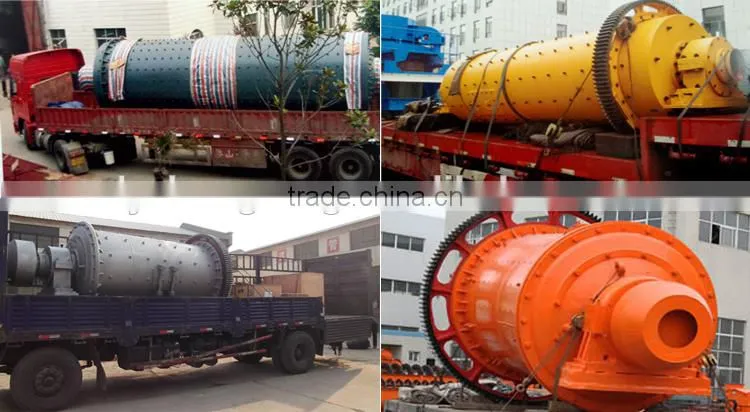

Packaging: Cement mill body in bulk , motor and spare parts packed in wooden case.
Professional mining equipment supplier with one-site service, Supply range is as follows:
Ore Dressing Equipment: Cement Mill, Slag Mill, Rod Mill, Ball Mill
Crushing/Screening Equipment: Jaw Crusher, Cone Crusher, Impact Crusher, Hammer Crusher, Crushing Plant, Vibrating Screen
Hoisting/Conveyor Equipment: Conveyor, Hoister,
Washing Equipment: Classifier, Flotation Equipment, Magnetic Separator
Installation and commissioning:
If installation and commissioning service is requested, technical person will go to user’s working site for support. Details will be negotiated.
Quality Guarantee: Guarantee one year from shipment date.
Technical support: Product specification, Use Manual, Technical data and etc will be provided.
Related Spare parts are serviced.
It would be greatful to provide details below for any mill products that better to choose suitable model for you.
1. What is the material that you grind?
2. What is the capacity?
3. What are the feeding size and the final product size?
