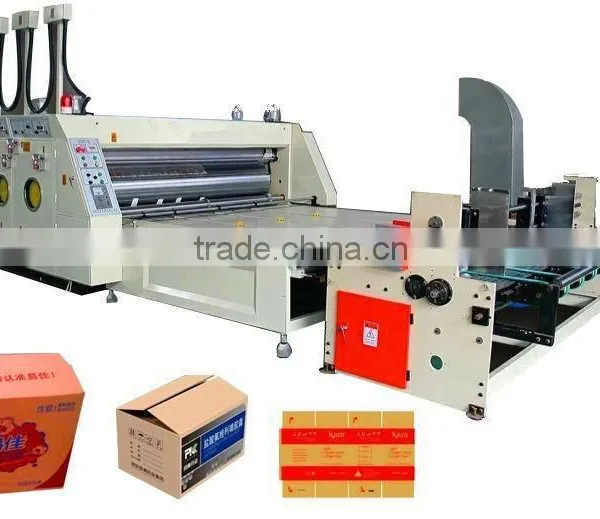

[RD-SB910-2000-2] Chain type feeder and multi-color printer slotter machine for corrugated carton making

Specifications

- High speed printer slotter machine
- 2 color printting
- Pneumatic locking up
- Factory price and good service
- CE





Specifications:



S/N	Parameter	Unit	Model
			RD-SB910-2000-2	RD-SB1500-2600-2	RD-SB1500-2800-2	RD-SB1500-3000-2
1	Machine inner width	mm	2000	2600	2800	3000
2	Max.paper size	mm	910*1800	1500*2400	1500*2600	1500*2800
3	Min.paper size	mm	160*400	450*650	450*650	450*650
4	Max.printing size	mm	810*1600	1400*2200	1400*2400	1400*2600
5	Carboard thikness	mm	2~11	2~11	2~11	2~11
6	Printing plate thikness	mm	6	7.2	7.2	7.2
7	Dia.of printing roller	mm	Φ290	Φ475	Φ475	Φ475
8	speed	pcs/min	60	60	60	60
9	Topping precision	mm	±0.5	±0.5	±0.5	±0.5
10	Slotting precision	mm	±1.5	±1.5	±1.5	±1.5
11	Total power	kw	4	4	4	4
12	Weight	T	3	4	5	6
13	Overall dimension(L*W*H)	mm	3400*2600*1400	4300*3200*1900	4300*3400*1900	4300*3600*1900



Features:

• Chain type feeder and multi-color printer slotter machine for corrugated carton making  .
• It's very convenient to control the printing slotting units, with the characteristics of order storage ,quick order changing and convenient operation.
• All the transmission gears use 45# chrome steel after high-frequency quenching and grinding in accordance with national standard.
• All the transmission rolls are made of high quality steel with the chrome plated and grinding surface.
• Motorized detachment and combination, pneumatic locking and loosening of each unit, along with alarm ring and light when the machine unit moving to improve the operation safety.
• Different alarm ring will along with the machine launching and stopping.
• The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
• Each unit equips with emergency stop button.
• Electrical components, transmission bearings and gears, pneumatic control components etc. are all in accordance with the national standard.
• Equipped with automatic lubrication system.
• There are 5 colors printing of printer slotter machine for you to choose from .



Chain feeding unit:





• Semi auto chain feeding, side plate is adjustable to adapt the different size of cardboard.
• Equipped with 5 feeding chains, and 3 feeding push plates for each chain.
• The chain rail is made of high strength engineering plastic, which is low noise, and long life time.
• The height of the workbench is adjustable.
• Automatic counter for recording the cardboard supply quantity to show the output.



Printing unit:



• All the rolls and shafts are made of high quality steel, with the treatment of dynamic balance correction, grinding and chrome plated.
• The phase position could be adjusted CW or CCW easily with 360 degree because of the equipping planetary gearing  mechanism.
• The printing plate is hanged by the hanging plate device, the printing roll is able to clockwise rotate and counter clockwise rotate which controlled by the foot switch, it's very convenient for installation and dismounting of printing plate.
• Manual gap adjustment via worm reducer with graduated dial indication such as gap between rubber roll and anilox roll, gap between anilox roll and printing roll etc.
• Equipped with electromagnetic clutch break system to fix the printing phase, when separate the printing unit for adjusting the printing phase, the break system will prevent the gear move, keep the original position.
• Phase clear memory and reset after printing plate cleaning.
• The distributing rubber roll is covered by wear proof rubber, it's good at ink transmission.
• Steel anilox roll with the treatment of grinding, pressing overlapping curve and chrome plated.



Slotting unit:





• The slotting phase position could be adjusted CW or CCW easily with 360 degree because of the equipping of planetary gearing mechanism.
• Double slotting configuration, after pressing of prepressing wheel and pressing wheel, the carton box will reach better forming effect.
• Precision linear guide horizontal displacement systems is equipped with slotting unit, the slotting knife seat, pressing wheel, trimming knife will moving precisely.
• The slotting knives are made of high quality alloy steel, with heat treatment and grinding which ensure a long life.
• Manual gap adjustment of prepressing wheel, pressing wheel, slotting knife seat.
• Punching hole device is optional.
