Manufacturer Conventional straight-type mixing asphalt reclamation equipment

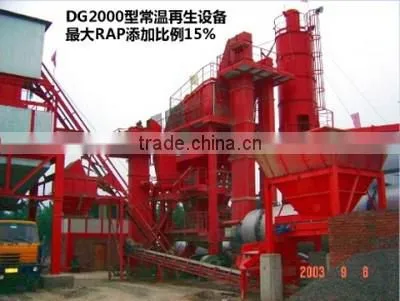

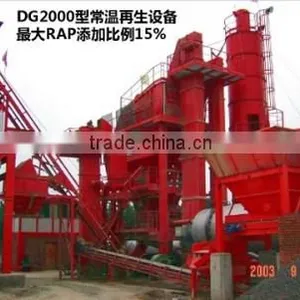

Conventional straight into the mix:
Recycling old material is added directly to the mixing pot, recycling old material through a separate road after measurement add directly to the mixing pot, mixing with hot aggregate is heated in the process, thus also necessary to improve aggregate heating temperature, this way the proportion of recycling old material generally cannot be more than 15%. Advantage of avoiding double drum and the recycling loop problem.
While recycled asphalt pavement (RAP) are recycled avoiding pollution dumped waste, reducing the use of new materials, reduced energy consumption, realize the resource recycling of asphalt pavement, and have high economic value and social benefits.
Technical parameters&Main structure
Model SR190 SR220 L15 L15A
Rated capacity(t/h) 120 160 25 50
Precut screen mesh(mm) 60×60 60×60 60×60 60×60
Buffering capacity volumem³ 5 7 1 1
RAP measurement precision ≤±0.3% ≤±0.3% ≤±0.3% ≤±0.3%
Maximum amount of addedkg 1500 2000 300 600
Standard maximum power consumptionkw 150 160 40 60
Control system [DGleap flying] control systems
Supporting models DG2000-DG3000 DG3000-DG5000 DG1300-DG2000 DG3000-DG5000

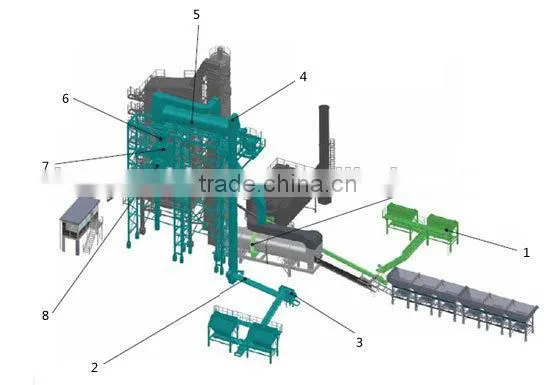

1, RAP mix bucket
Optimization of silo designed to ensure smooth blanking
Frequency, and optional weighting function
2, RAP belt conveyor
Seamless ring belt
Optional fully-enclosed dust cover

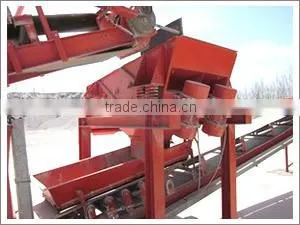

3, RAP small vibrating sieve
Excluding RAP material does not meet the requirements of materials or debris

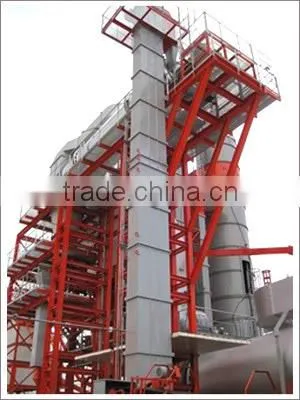

4, RAP elevator
Double chain bucket elevator
High longevity, easy maintenance

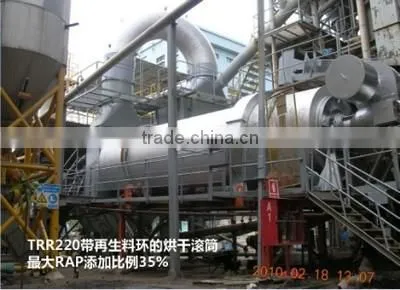

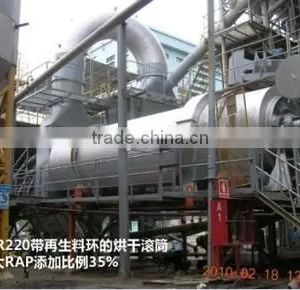

5, RAP are dried tube
Special recycling old material drying drum
Special leaf structure and layout
Outer thermal insulation layer

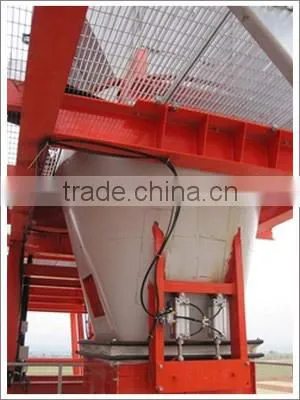

6, the RAP surge bin
Design of circular silo
Heat transfer oil or electric heating
Outer thermal insulation layer

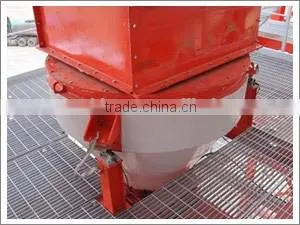

7, RAP weighing bucket
Design of circular silo
Equipped with electric heating devices
Outer thermal insulation layer

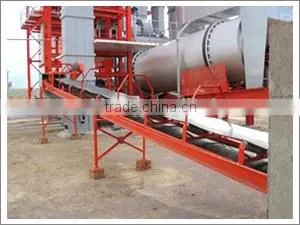

8, RAP into a pan belt
Fully enclosed belt conveyors for resistance to high temperature and high efficiency
Easy to repair and maintenance
For equipment arrangement, effectively reducing the overall height of the device

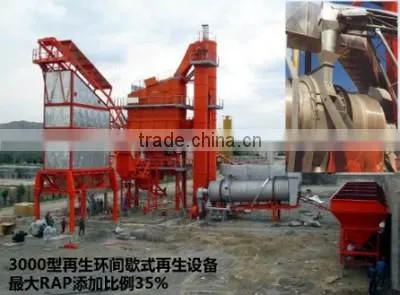

9, recycled rings
Structure of ingenious, supporting simple
Integrated high performance-price ratio
Pre-sale service
Suggest the best suitable products for customers according to their requirement, with sincere attitude
Try our best to Offer the technical service before installment.
Give our customers training for main problems and solution, maintenance and so on
During sale service
Supervising the whole process of producing and shipment and making sure our product deliver with good condition in time.
Offer all the necessary technical data to customer.
After sale service
Offer installment, debugging, and repairing service after customer receiving our products.
Offer work-site training.
Solve the customer’s complain at first time and try to arrive at the work site once get your notice.
We record every sold product on installment, debugging, and repairing situation. And provide professional maintenance advice.
We will visit customer timely to learn customer’s advice and new demand
Haomei machinery equipment co.,Ltd is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality asphalt mixing plant, concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS" to cooperate with clients from all over the world. Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches.
