Hot Sale !!!Thermal regeneration asphalt mixer equipment
Asphalt mixture regeneration equipment working principle is the use of renewable technology will fail in cutting down the old asphalt mixture of asphalt pavement, after screening, heating, storage, measurement according to the different proportion to join the agitator of various types of asphalt mixing plant, and the original raw materials mixing agitator, produce excellent asphalt mixture, haomei machine adopting the new technology, combined with national conditions, carefully developed with independent intellectual property rights RLB series asphalt concrete thermal regeneration equipment.
character
1) i stable and reliable, advanced technology, measuring precision, intelligent control, heating security;
2) the unique way of heating, avoid the RAP in the process of heating asphalt aging;
3) the flue, discharging port, such as multi-point temperature monitoring, guarantee the safety of the discharge temperature and production
4) recycling material loss, blue smoke emission, additional pollution index, achieve and exceed the national standard;
5) maximum thermal reworked material adding ratio can reach 50%, reached the international first-class level.
Technical parameters
model RLB1000 RLB1750 RLB2000 RLB2500
productivity 60-80t/h 110-140t/h 120-160t/h 150-200t/h
Measuring accuracy static ±0.5% ± 0.5% ±0.5% ± 0.5%
dynamic ±2.5% ±2.5% ±2.5% ±2.5%
The engine power 156kw 209kw 225kw 276kw
Main parts

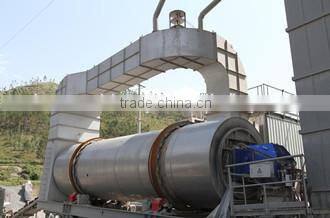

Regeneration of drying drum
With th e heating mode, shaft friction reduction speed motor drive.The unique hot air circulation within the system associated with the burner control, real time to ensure the balance of the combustion chamber and the drying drum temperature.
renewable drum internal structure, high thermal efficiency;Special design of the flexible blade, prevent the adhesion of asphalt material and the inner wall of the cylinder and the blade, equipped with the thickness of material separation blades, asphalt material is heated.

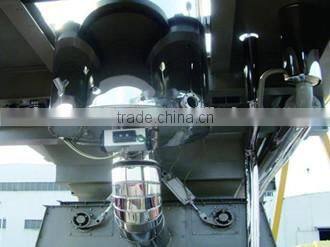

The burner
By using composite power low pressure atomization, atomization effect is good, burning full, and the wind can be adjusted according to different densities than oil.Wind oil than adopts stepless frequency control of motor speed control technology, the flame adjustment ratio greater than 1:10, precise control fuel quantity, low oxygen coefficient.Stable and reliable system for oil pressure, oil temperature, atomizing air pressure, the flame several important parameters, such as real-time monitoring, automatic ignition protection.Can burn heavy residual oil, coal tar, diesel, etc.
Regeneration of cylinder combustion chamber
Specially designed for renewable drum of the combustion chamber, ensure the asphalt is 100% don't contact with flame, use the heat generated in combustion chamber air heating asphalt material, the interlayer spit out the bottom temperature of exhaust gas, effectively prevent the asphalt aging, damage.
Combustion chamber adopts double structure, the use of special high temperature resistant material design, and adopts single layer refractory pouring into the combustion chamber, compared to completely avoid the maintenance and reduces the heat loss of the combustion chamber.

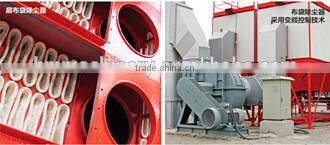

Waste gas treatment system
Regeneration of drying drum exhaust smoke (blue) after induced draft fan and flue part into the regenerative combustion chamber for combustion unit.Eventually exhaust into the primary equipment host drying drum by the native units after secondary combustion emissions of dust removal equipment, can eliminate harmful emissions
1. Rapid response to any inquiry.
2. Competitive price.
3. Professional inspection department to guarantee quality
4. Factory visit is welcomed and free booking hotel and airport pick up service.
5. Engineers will go to clients’ site for guiding the installation and test-running;
6. Spare parts supply,We will keep your know the complete data, when you need any spare parts, we will send to you quickly.
7.15 months super long time guarantee period.
8. Customer-tailor is received.

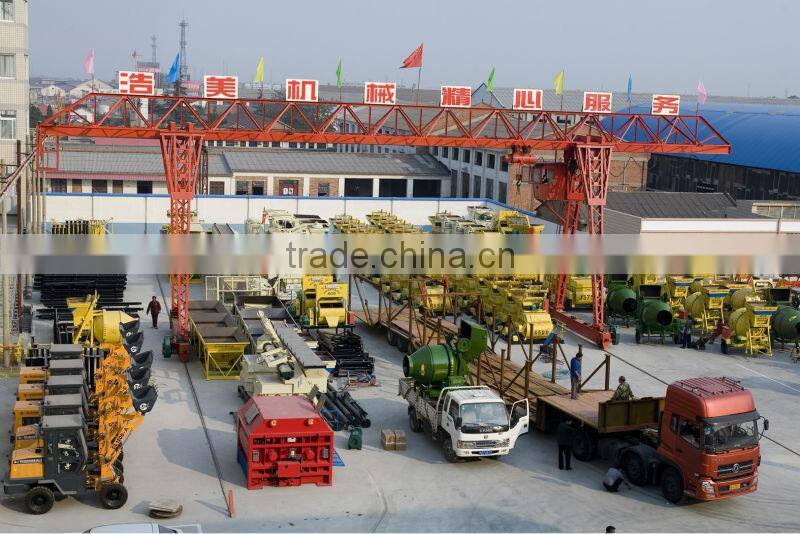

Haomei machinery equipment co.,Ltd is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality asphalt mixing plant, concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS" to cooperate with clients from all over the world. Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches.
Our customer and certification
